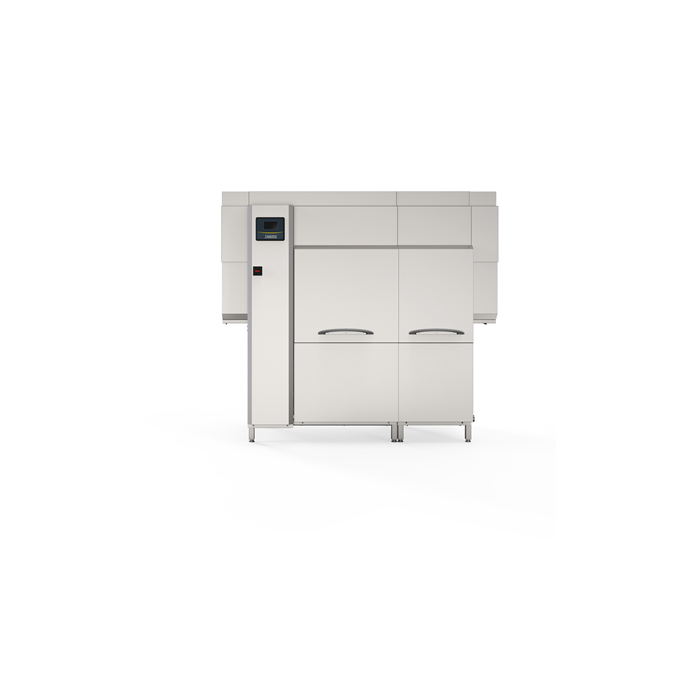

The Zanussi 536040 Warewashing Dual rinse rack type dishwasher with Energy Saving Device, 200 racks/hour, electric,50Hz comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Zanussi Professional brands are renowned for their range of equipment.

Electric

Supply voltage: 380-415 V/3N ph/50 Hz
Default Installed Power: 26.5 kW
Electrical power min: 16.5 kW
When the machine is run at DIN 10512 compliant speed.
Pre-wash tank heating elements: 7 kW
Pre-wash tank heating element are activated only during sanitation cycle.
Boiler heating elements: 14 kW
Pre-wash pump size: 0.37 kW
Wash pump size: 1.5kW
Wash tank heating elements: 10 kW

Key Information:

Productivity per hour (max. speed): 200 racks/3600dishes
Productivity per hour (medium speed): 148 racks/2664 dishes
Productivity per hour (DIN compliant speed): 95 racks/1710 dishes
Pre-wash temperature: 10-40°C
Wash temperature: 55-65°C
Rinse temperature: 85 °C
External dimensions, Width: 2080 mm
External dimensions, Depth: 925 mm
For transportation purpose only, the depth can be reduced to either 895mm by removing the main switch button or 797mm by removing the control box and the door handle.
External dimensions, Height: 1908 mm
Height with door open: 2095 mm
Charging hole size (width): 530 mm
Charging hole size (height): 490 mm
Shipping height: 2068 mm
Shipping width: 1006 mm
Shipping depth: 1811 mm
Shipping volume: 3.77 m³
Reference norm used to measure the noise: IEC60335-2-58 annex AA.
Table to table distance: 2080 mm

Air Emission:

Air flow (top, exit): 565 / 0 m³/h
Air temperature (top, exit): 27 °C
Air humidity (top, exit): 100 / 0 % r.h.
The data is measured at exhaust points at 25°C and 60% r.h. ambient conditions, 18°C inlet water temperature and refer only to the machine.
Latent heat: 5000 W
Sensible heat: 3000 W
This model requires a ventilation hood. Please refer to the attached "Recommended Exhaust Hood Design".

Water:

Inlet hot water line size: G 3/4"
Inlet cold water line size: G 3/4"
Drain line size: 50mm
Inlet water supply pressure: 1.5-6 bar
Inlet water supply temperature (wash): 50 - 65 °C
Inlet water supply temperature (rinse and pre-wash): 10 - 30 °C
Inlet water supply hardness: 14 °fH / 8°dH
When below 7°fH/4°dH special detergent and rinse aid are needed.
Peak rate of drain flow: 2.5 l/s
Pre-wash tank size: 35 l
Wash tank size: 70 l
Rinse water consumption:

Sustainability

Rinse water consumption at max speed (l/h) 180 l/h
Noise level: <62 dBA

CAD Drawings

536040

(746,73 KB)

Data Sheet

Dual rinse rack type dishwasher with Energy Saving Device, 200 racks/hour, electric,50Hz

(1,37 MB)

BIM/Revit

536040

(3,74 MB)

The Zanussi 536040 Warewashing Dual rinse rack type dishwasher with Energy Saving Device, 200 racks/hour, electric,50Hz is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Zanussi Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
