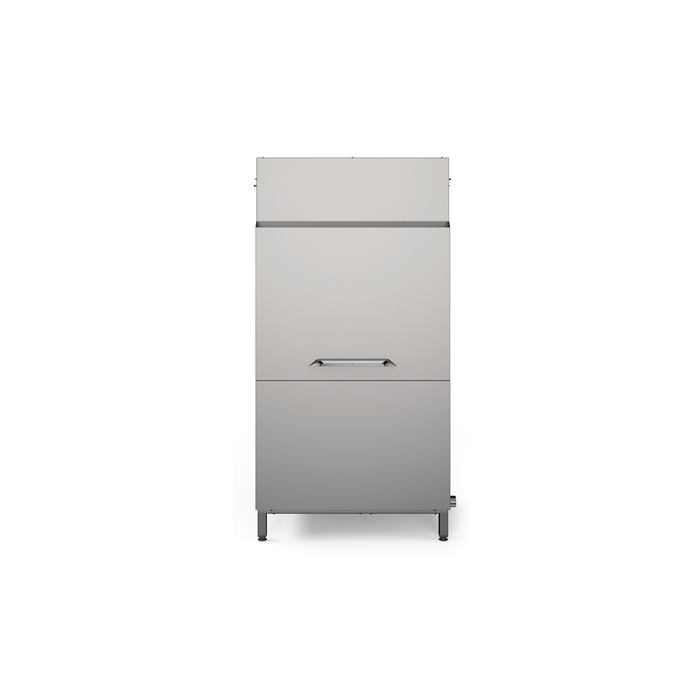

Zanussi 535098 Warewashing Large drying zone with door for dual rinse rack type dishwasher

  • Adjustable feet for full access underneath the machine for cleaning.

  • Electronically controlled to optimize drying results.

  • Drying zone removes most of water from the crockery through a high powered fan that extracts dry air from outside mixing it with the internal air, thus providing dry plates at a temperature cool enough to handle safely.

  • IP25 protection against water jets, solid objects and small animals (larger than 6 mm).

  • The feeding direction can be either left to right or right to left as it's reversible on site.

  • Large counter balanced inspection door allows unrestricted all-round access to the internal area. Door is insulated with injected foam. This adds strength as well as reduces noise and heat loss.

  • Unit to be placed between dual rinse rack type dishwasher and handling system.

  • The chamber is pressed with fully rounded corners without internal pipes and therefore no hidden dirt traps.

  • All main components made in heavy duty anti-corrosive 304 type stainless steel: internal chamber, external, front and side panels, door and rack transportation system.

  • The unit is built on modularity concept to easily connect with dual rinse rack type dishwasher without any modification including power, inlet water, drain water, detergent and rinse aid connections.

Description / Zanussi 535098 Warewashing Large drying zone with door for dual rinse rack type dishwasher

The Zanussi 535098 Warewashing Large drying zone with door for dual rinse rack type dishwasher comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Zanussi Professional brands are renowned for their range of equipment.

Electric
  • Supply voltage: 380-415 V/3N ph/50/60 Hz
  • Default Installed Power: 8.5 kW
  • Dryer heating elements: 8.25kW
  • Drying fan power: 0.19kW
Sustainability
  • Noise level: <62 dBA
Key Information:
  • Dryer air flow: 750m3/h
  • Dryer air temperature: 70°C
  • External dimensions, Width: 890 mm
  • External dimensions, Depth: 825 mm
  • For transportation purpose only, the depth can be reduced to 795mm by removing the door handle.
  • External dimensions, Height: 1785 mm
  • Net weight: 116 kg
  • Shipping weight: 137 kg
  • Shipping height: 2030 mm
  • Shipping width: 910 mm
  • Shipping depth: 1030 mm
  • Shipping volume: 1.9 m³
  • Reference norm used to measure the noise: IEC60335-2-58 annex AA.
CAD Drawings
(305,48 KB)
Data Sheet

The Zanussi 535098 Warewashing Large drying zone with door for dual rinse rack type dishwasher is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Zanussi Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
