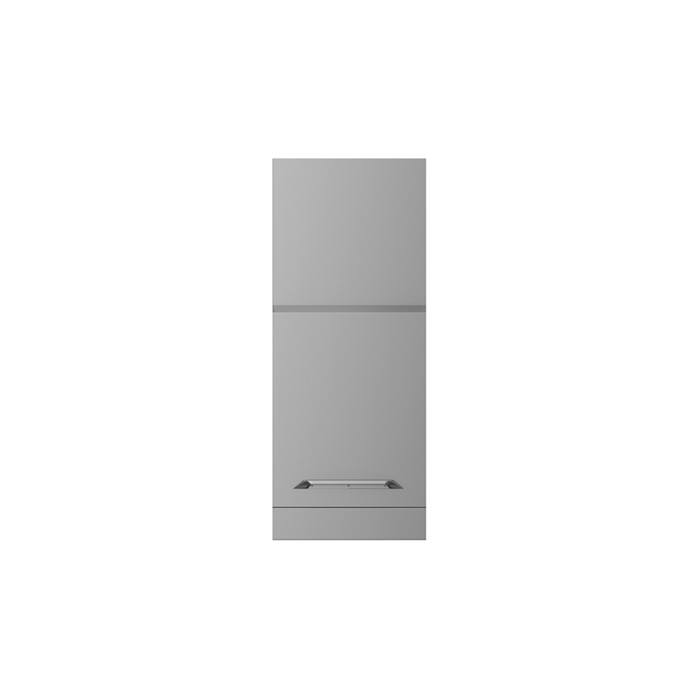

Zanussi 535038 Warewashing Medium drying zone with door for Zanussi multi-rinse Rack Type Dishwasher
IPX5 water resistance certification.
Electronically controlled to optimize drying results.
Drying zone removes most of water from the crockery through a high powered fan that extracts dry air from outside mixing it with the internal air, thus providing dry plates at a temperature cool enough to handle safely.
The feeding direction can be either left to right or right to left as it's reversible on site.
Large counter balanced inspection door allows unrestricted all-round access to the internal area. Door is insulated with injected foam. This adds strength as well as reduces noise and heat loss.
-
Unit to be placed between multi-rinse rack type dishwasher and handling system.
-
The chamber is pressed with fully rounded corners without internal pipes and therefore no hidden dirt traps.
-
All main components made in heavy duty anti-corrosive 304 type stainless steel: internal chamber, external, front and side panels, door and rack transportation system.
The unit is built on modularity concept to easily connect with multi-rinse rack type dishwasher without any modification including power connection.
Description / Zanussi 535038 Warewashing Medium drying zone with door for Zanussi multi-rinse Rack Type Dishwasher
The Zanussi 535038 Warewashing Medium drying zone with door for Zanussi multi-rinse Rack Type Dishwasher comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Zanussi Professional brands are renowned for their range of equipment.
Electric
- Supply voltage: 380-415 V/3N ph/50 Hz
- Default Installed Power: 4.4 kW
- Dryer heating elements: 4.13 kW
- Drying fan power: 0.23 kW
Sustainability
- Noise level: <62 dBA
Key Information:
- Dryer air flow: 530 m³/h
- Dryer air temperature: 70 °C
- External dimensions, Width: 560 mm
- External dimensions, Depth: 825 mm
- For transportation purpose only, the depth can be reduced to 795mm by removing the door handle.
- External dimensions, Height: 2020 mm
- Height with door open: 2100 mm
- Net weight: 80 kg
- Shipping weight: 80 kg
- Shipping height: 1570 mm
- Shipping width: 720 mm
- Shipping depth: 900 mm
- Shipping volume: 1.02 m³
- Reference norm used to measure the noise: IEC60335-2-58 annex AA.
Brochures
Data Sheet
The Zanussi 535038 Warewashing Medium drying zone with door for Zanussi multi-rinse Rack Type Dishwasher is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Zanussi Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.
For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
