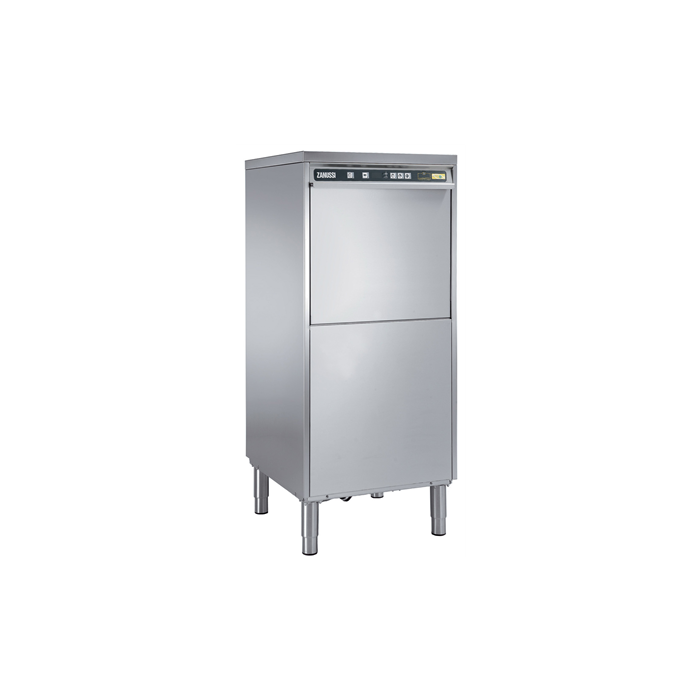

Zanussi 503020 Warewashing Utensil Dishwasher 1170 plates/h with Drain Pump and Pressure Boiler

lowest price 7dayhef

  • Built-in pressure boiler sized to raise incoming 50 °C water to guarantee a minimum rinsing temperature of 82 °C for sanitizing rinse. No external booster is required.

  • Double rack support equipped with either a large 550x535mm rack for pizza plates, trays and utensils or a standard 500x500mm rack for plates, cups and cutlery.

  • Equipped with drain pump for easy and quick installation without opening the machine.

  • Fault auto-diagnosis system.

  • Simple service from the front.

  • Easy to remove wash/rinse arms and filter.

  • Fully automatic self-cleaning cycle avoids the risk of bacteria proliferation.

  • Simple control panel, with digital display for wash and rinse temperature.

  • Automatic boiler emptying function.

  • 55/90/300 seconds cycles.

  • Low noise level <65 dBA.

  • Counter-balanced door to minimize impact when opening and closing.

  • Unit to feature rinse aid dispenser pump.

  • Unit to feature smooth surfaces to facilitate cleaning.

  • Wash/rinse arms and nozzles in stainless steel.

  • 304 AISI stainless steel front and side panels, wash tank and filter.

  • Double skinned construction.

  • Completely closed on the back by a cover plate.

  • Double wash tank with rounded corners for easier cleaning operations.

  • No pipes inside the washing chamber.

lowest price 7dayhef

Description / Zanussi 503020 Warewashing Utensil Dishwasher 1170 plates/h with Drain Pump and Pressure Boiler

The Zanussi 503020 Warewashing Utensil Dishwasher 1170 plates/h with Drain Pump and Pressure Boiler comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Zanussi Professional brands are renowned for their range of equipment.

Electric
  • Supply voltage: 400 V/3N ph/50 Hz
  • Total Watts: 12.1 kW
  • Wash pump power: 0.8 kW
Water:
  • Washing tank capacity (lt): 42
  • Boiler Capacity (lt): 12
  • Washing cycle electrical elements: 3 kW
  • Hot rinse cycle duration (sec.): 16
  • Min hot rinse water consumption (lt/cycle)**: 3.8
Sustainability
  • Water supply temperature*: 50 °C
Key Information:
  • Washing cycle temperature: 55-65 °C
  • Hot rinse cycle temperature: 80-90 °C
  • Working cycles time (sec.): 55/90/300
  • Cell dimensions - width: 554 mm
  • Cell dimensions - depth: 570 mm
  • Cell dimensions - height: 450 mm
  • External dimensions, Width: 642 mm
  • External dimensions, Depth: 723 mm
  • External dimensions, Height: 1477 mm
  • Net weight: 88 kg
  • Shipping weight: 100 kg
  • Shipping height: 1710 mm
  • Shipping width: 810 mm
  • Shipping depth: 760 mm
  • Shipping volume: 1.05 m³
  • Dishes capacity: 1170/hr
  • Basket capacity: 65/h
CAD Drawings
(65,47 KB)
Data Sheet
BIM/Revit
(884 KB)

The Zanussi 503020 Warewashing Utensil Dishwasher 1170 plates/h with Drain Pump and Pressure Boiler is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Zanussi Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
