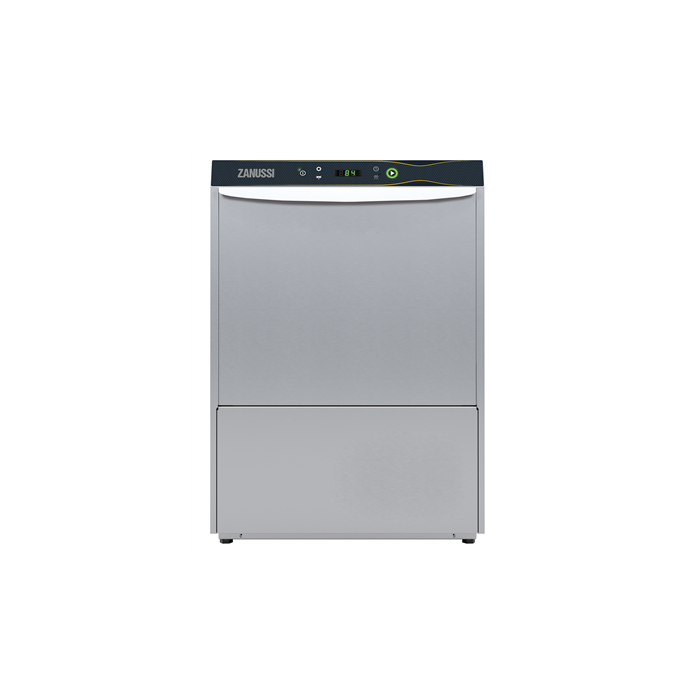

Description / Zanussi 402316 Warewashing Undercounter, 600x400mm trays, double skin, per hour of 30 baskets or 540 dishes or 120
The Zanussi 402316 Warewashing Undercounter, 600x400mm trays, double skin, per hour of 30 baskets or 540 dishes or 120 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Zanussi Professional brands are renowned for their range of equipment.
Electric
- Supply voltage: 380-415 V/3N ph/50 Hz
- Default Installed Power: 6.65 kW
- Boiler heating elements: 6 kW
- Tank heating elements: 2.4 kW
- Wash pump size: 0.68 kW
Sustainability
- Water supply temperature*: 10-50 °C
- Water consumption per cycle (lt): 2.2
- Noise level: 61,3 dBA
Water:
- Pressure, bar min/max: 1-6 bar
- Drain line size: 29mm
- Inlet Water supply pressure: 15 - 87 psi (1 - 6 bar)
- Washing tank capacity (lt): 22
- Boiler Capacity (lt): 5.5
Key Information:
- Baskets per hour*: 30
- Dishes per hour: 540
- Working cycles time (sec.): 120/180/360/540
- Wash temperature: 55-65°C
- Cell dimensions - width: 500 mm
- Cell dimensions - depth: 600 mm
- Cell dimensions - height: 410 mm
- Rinse temperature: 85 °C
- External dimensions, Width: 600 mm
- External dimensions, Depth: 703 mm
- External dimensions, Height: 850 mm
- Packaging size
(WxDxH): 700x780x1010 mm
Brochures
CAD Drawings
Data Sheet
BIM/Revit
The Zanussi 402316 Warewashing Undercounter, 600x400mm trays, double skin, per hour of 30 baskets or 540 dishes or 120 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Zanussi Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.
For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
