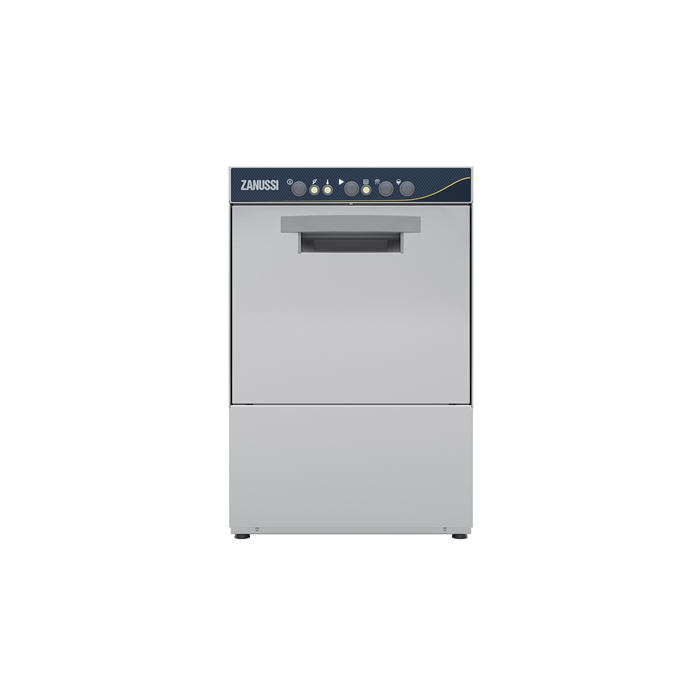

Zanussi 402295 Warewashing Small Single Skin Glasswasher, drain pump and detergent and rinse aid dispenser, 30b/h
Built-in rinse aid and detergent dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.
Deep drawn pressed wash tank with fully rounded corners, sloped towards the drain to prevent dirt build up provides fast drainage in only a few minutes. Pressed wash tank with no welded points offer a guaranteed water tight solution.
Equipped with drain pump for easy and quick installation without opening the machine.
120 seconds cycle.
Built-in pressure boiler designed to raise incoming water to a guaranteed minimum temperature of 82°C for sanitizing rinse. No external boiler is required.
-
Maximum capacity of 30 racks per hour.
-
Equipped with single phase electrical cable and Schuko plug for easy and fast installation.
-
Washing system endowed with rotating washing arms, high powered wash pump and large capacity wash tank for professional washing.
Easy service access to main components without moving the unit.
-
Completely closed on the back by a cover plate.
-
Unit to feature rinse aid and detergent dispenser pumps.
-
Robust structure thanks to stainless steel construction.
Internal components (arms and filter) are easy extractable.
Description / Zanussi 402295 Warewashing Small Single Skin Glasswasher, drain pump and detergent and rinse aid dispenser, 30b/h
The Zanussi 402295 Warewashing Small Single Skin Glasswasher, drain pump and detergent and rinse aid dispenser, 30b/h comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Zanussi Professional brands are renowned for their range of equipment.
Electric
- Supply voltage: 220-240 V/1 ph/50 Hz
- Default Installed Power: 2.7 kW
- Boiler heating elements: 2.7 kW
- Tank heating elements: 2.4 kW
- Wash pump size: 0.2 kW
Sustainability
- Water supply temperature*: 10-50 °C
- Water consumption per cycle (lt): 2
- Noise level: 61 dBA
Water:
- Pressure, bar min/max: 2-5 bar
- Drain line size: 29mm
- Washing tank capacity (lt): 12
- Boiler Capacity (lt): 3
- Incoming water line size: 3/4"
Key Information:
- Baskets per hour*: 30
- Working cycles time (sec.): 120
- Wash temperature: 60°C
- Cell dimensions - width: 405 mm
- Cell dimensions - depth: 437 mm
- Cell dimensions - height: 315 mm
- Rinse temperature: 85 °C
- External dimensions, Width: 455 mm
- External dimensions, Depth: 550 mm
- External dimensions, Height: 700 mm
- Net weight: 38 kg
- Shipping weight: 42 kg
- Shipping height: 850 mm
- Shipping width: 540 mm
- Shipping depth: 630 mm
- Shipping volume: 0.29 m³
Brochures
CAD Drawings
Data Sheet
BIM/Revit
The Zanussi 402295 Warewashing Small Single Skin Glasswasher, drain pump and detergent and rinse aid dispenser, 30b/h is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Zanussi Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.
For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
