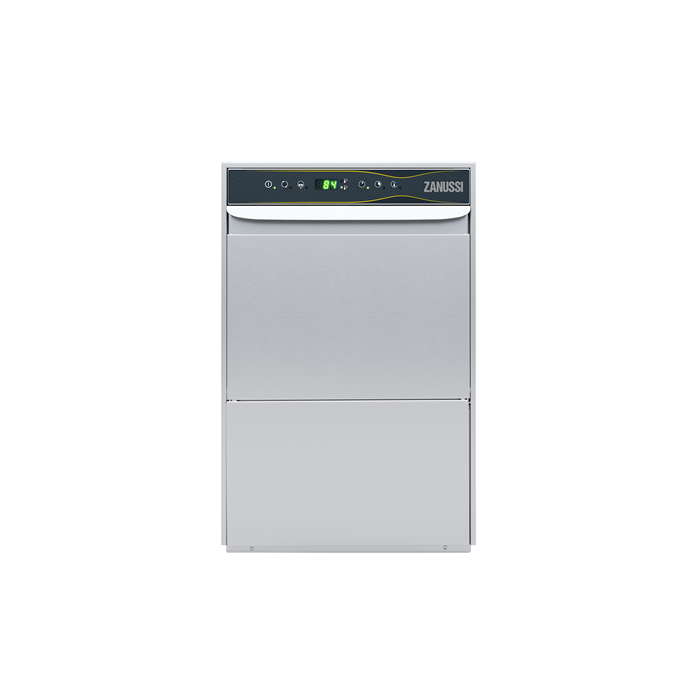

Zanussi 402233 Warewashing Small Double Skin Glasswasher, elec control, cold rinse, water softener, rinse aid dispenser, 30b/h

  • Equipped with single phase electrical cable and Schuko plug for easy and fast installation.

  • Optional rinse booster pump available to be installed on site.

  • 120/300/120 seconds cycle, the third cycle includes cold rinse.

  • New electronic control panel for easy setup of the working parameters and self diagnosis.

  • Easy service access to main components without moving the unit.

  • Washing system endowed with rotating washing arms from both top and bottom, high powered wash pump and large capacity wash tank guarantee professional washing.

  • Incorporated Soft Start feature to offer additional protection to more delicate items.

  • Maximum capacity of 30 racks per hour.

  • Built-in pressure boiler designed to raise incoming water to a guaranteed minimum temperature of 82°C for sanitizing rinse. No external boiler is required.

  • Equipped with water softener to ensure optimal rinsing results.

  • Extra program to cold rinse beer and wine glasses providing sanitized glasses, cool enough to handle.

  • Low noise level.

  • Built-in rinse aid dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.

  • Wash/rinse arms and nozzles in stainless steel.

  • Finished in top quality stainless steel with double skinned construction to aid durability and reduce noise.

  • Unit to feature rinse aid dispenser pump.

  • Internal components (arms and filter) are easy extractable.

  • Completely closed on the back by a cover plate.

  • Large tank filter collects the soil to keep the wash water clean for a longer time and have better washing performance.

  • Deep drawn pressed wash tank with fully rounded corners, sloped towards the drain to prevent dirt buildup, provides fast drainage in just a few minutes. With no welding points the pressed tank offers a guaranteed water tight solution.

  • 304 AISI stainless steel front panel, load bearing frame, wash tank, tank filter, wash and rinse arms.

Description / Zanussi 402233 Warewashing Small Double Skin Glasswasher, elec control, cold rinse, water softener, rinse aid dispenser, 30b/h

The Zanussi 402233 Warewashing Small Double Skin Glasswasher, elec control, cold rinse, water softener, rinse aid dispenser, 30b/h comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Zanussi Professional brands are renowned for their range of equipment.

Electric
  • Supply voltage: 220-240 V/1 ph/50 Hz
  • Default Installed Power: 3.3 kW
  • Boiler heating elements: 3 kW
  • Tank heating elements: 0,8 kW
  • Wash pump size: 0.3 kW
Sustainability
  • Water supply temperature*: 10-55 °C
  • Water consumption per cycle (lt): 2.3
  • Noise level: 69 dBA
Water:
  • Pressure, bar min/max: 1.8-3 bar
  • Drain line size: 22mm
  • Washing tank capacity (lt): 6
  • Boiler Capacity (lt): 5
  • Incoming water line size: G 3/4"
Key Information:
  • Baskets per hour*: 30
  • Working cycles time (sec.): 120/300/120
  • Wash temperature: 55-65°C
  • Cell dimensions - width: 400 mm
  • Cell dimensions - depth: 400 mm
  • Cell dimensions - height: 290 mm
  • Rinse temperature: 80-90 °C
  • External dimensions, Width: 460 mm
  • External dimensions, Depth: 565 mm
  • External dimensions, Height: 715 mm
  • Net weight: 40 kg
  • Shipping weight: 47 kg
  • Shipping height: 870 mm
  • Shipping width: 650 mm
  • Shipping depth: 520 mm
  • Shipping volume: 0.29 m³
Brochures
(2,02 MB)
CAD Drawings
(220,53 KB)
Data Sheet
BIM/Revit
(492 KB)

The Zanussi 402233 Warewashing Small Double Skin Glasswasher, elec control, cold rinse, water softener, rinse aid dispenser, 30b/h is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Zanussi Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
