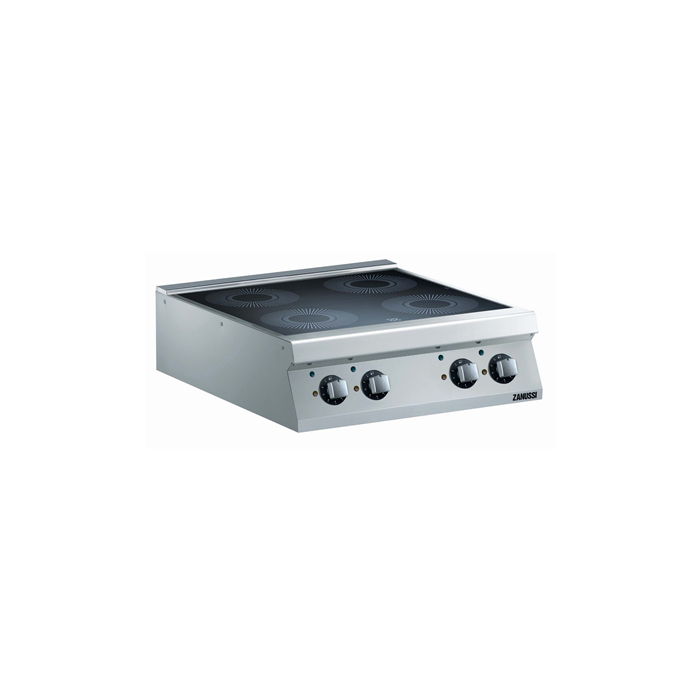

Zanussi 392169 Modular Cooking Range Line EVO900 4 Zone Electric Induction Cooking Top-230V

  • Pots diameter to be used : min 12cm, max 28 cm in order to obtain maximum heating efficiency.

  • Suitable for countertop installation.

  • Glass ceramic cooking surface with 4 independently controlled induction zones with a power of 5 kW per zone.

  • Almost the entire surface of the ceramic plate can be used without ”dead” spots.

  • One indicating lamp for each zone located on control console.

  • Induction plates endowed with overheating safety device.

  • Power to the individual zones can be set with progressive output i.e. fine regulation at the lower and larger progress at the upper levels.

  • Low heat dissipation to the kitchen.

  • The smooth, glass ceramic plate is not directly heated, so there is no burning on cooking surface.

  • IPX5 water protection.

  • Unit is 900mm deep to give a larger working surface area.

  • All exterior panels in Stainless Steel with Scotch Brite finishing.

  • AISI 304 stainless steel worktop, 2mm thick.

  • Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.

Description / Zanussi 392169 Modular Cooking Range Line EVO900 4 Zone Electric Induction Cooking Top-230V

The Zanussi 392169 Modular Cooking Range Line EVO900 4 Zone Electric Induction Cooking Top-230V comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Zanussi Professional brands are renowned for their range of equipment.

Electric
  • Supply voltage: 230 V/3 ph/50/60 Hz
  • Total Watts: 20 kW
  • Predisposed for:
Key Information:
  • Induction Top Dimensions (width): 800 mm
  • Induction Top Dimensions (depth): 900 mm
  • Net weight: 65 kg
  • Shipping weight: 76 kg
  • Shipping height: 540 mm
  • Shipping width: 1020 mm
  • Shipping depth: 860 mm
  • Shipping volume: 0.47 m³
  • Induction compatible pots & pans must be used.
  • Certification group: NIN89F
Brochures
Range overviews
CAD Drawings
(171,31 KB)
Data Sheet
BIM/Revit
(2,04 MB)

The Zanussi 392169 Modular Cooking Range Line EVO900 4 Zone Electric Induction Cooking Top-230V is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Zanussi Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
