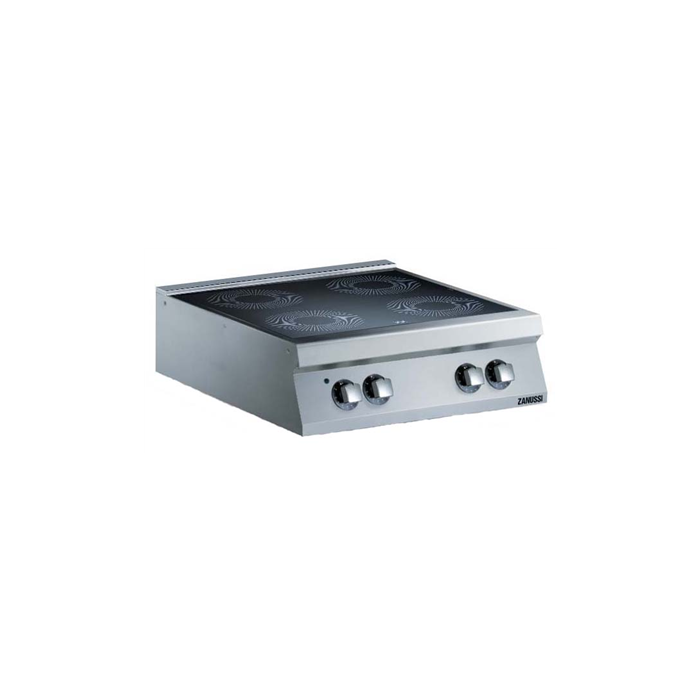

Zanussi 392045 Modular Cooking Range Line EVO900 4 Electric Infrared Cooking Top

lowest price 7dayhef

  • Suitable for countertop installation.

  • Ceramic glass top cooking surface with 4 infrared heating zones 6 mm thick.

  • The circular concentric heating sections measuring from 180 to 300 mm give uniform heat also to the largest pan.

  • The cooking top is sealed to prevent infiltration inside the unit.

  • Warning light to indicate residual surface heat.

  • Immediate heat transfer from cooking top to pan.

  • Low heat dissipation to the kitchen.

  • The smooth glass-ceramic surface can be quickly and easily cleaned, thus providing maximum hygiene.

  • IPX5 water protection.

  • Unit is 900mm deep to give a larger working surface area.

  • All exterior panels in Stainless Steel with Scotch Brite finishing.

  • AISI 304 stainless steel worktop, 2mm thick.

  • Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.

lowest price 7dayhef

Description / Zanussi 392045 Modular Cooking Range Line EVO900 4 Electric Infrared Cooking Top

The Zanussi 392045 Modular Cooking Range Line EVO900 4 Electric Infrared Cooking Top comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Zanussi Professional brands are renowned for their range of equipment.

Electric
  • Supply voltage: 380-400 V/3N ph/50/60 Hz
  • Total Watts: 13.6 kW
  • Predisposed for: 380-400V 3N~ 50/60Hz 12-13,6kW
Key Information:
  • Front Plates Power: 3.4 - 3.4 kW
  • Back Plates Power: 3.4 - 3.4 kW
  • Front Plates dimensions: ⌀ 300 ⌀ 300
  • Back Plates dimensions: ⌀ 300 ⌀ 300
  • Net weight: 69 kg
  • Shipping weight: 52 kg
  • Shipping height: 530 mm
  • Shipping width: 1010 mm
  • Shipping depth: 860 mm
  • Shipping volume: 0.46 m³
  • Certification group: N9CIE
Brochures
Range overviews
CAD Drawings
(178,44 KB)
Data Sheet
BIM/Revit
(1,03 MB)

The Zanussi 392045 Modular Cooking Range Line EVO900 4 Electric Infrared Cooking Top is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Zanussi Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
