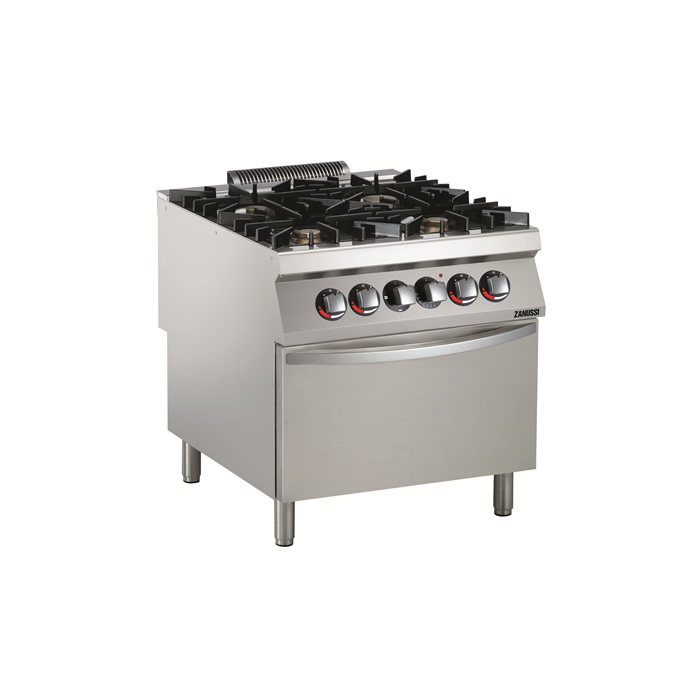

Zanussi 392032 Modular Cooking Range Line EVO900 4-Burner Gas Range on Electric Oven

  • Control knobs provide smooth, continuous rotation from min to max power level.

  • The two 6 kW high efficiency flower flame burners are available in two different sizes to suit high performing cooking requirements of the most demanding customers.
    • 60 mm burners with continuous power regulation from 1,5 to 6 kW

    • 100 mm burners with continuous power regulation from 2.2 kW to 10 kW

  • Large sized pan support in cast iron with long center fins to allow the use of the largest down to the smallest pans.

  • Unit to be mounted on open base cupboards, bridging supports or cantilever systems.

  • Gas appliance supplied for use with natural or LPG gas, conversion jets supplied as standard.

  • Burners with optimized combustion.

  • Flame failure device on each burner protects against gas leakage when accidental extinguishing of the flame occurs.

  • Protected pilot light.

  • The special design of the control knob system guarantees against water infiltration.

  • IPX5 water protection.

  • Unit is 900mm deep to give a larger working surface area.

  • AISI 304 stainless steel worktop, 2mm thick.

  • Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.

  • All exterior panels in Stainless Steel with Scotch Brite finishing.

Description / Zanussi 392032 Modular Cooking Range Line EVO900 4-Burner Gas Range on Electric Oven

The Zanussi 392032 Modular Cooking Range Line EVO900 4-Burner Gas Range on Electric Oven comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Zanussi Professional brands are renowned for their range of equipment.

Electric
  • Predisposed for: 380-400V 3N~ 50/60Hz 5.5-6kW
Key Information:
  • Front Burners Power: 6 - 6 kW
  • Back Burners Power: 6 - 10 kW
  • Back Burners Dimension - mm ⌀ 60 ⌀ 100
  • Front Burners Dimension - mm ⌀ 60 ⌀ 60
  • Oven Heat Input: 6 kW
  • Oven working Temperature: 110 °C MIN; 285 °C MAX
  • Oven Cavity Dimensions (width): 575 mm
  • Oven Cavity Dimensions (height): 300 mm
  • Oven Cavity Dimensions (depth): 700 mm
  • Net weight: 155 kg
  • Shipping weight: 180 kg
  • Shipping height: 1120 mm
  • Shipping width: 1020 mm
  • Shipping depth: 860 mm
  • Shipping volume: 0.98 m³
  • Certification group: N9CG
Gas
  • Gas Power: 28 kW
  • Standard gas delivery: Natural Gas G20 (20mbar)
  • Gas Type Option: LPG;Natural Gas
  • Gas Inlet: 1/2"
Brochures
Range overviews
CAD Drawings
(428,2 KB)
Data Sheet
BIM/Revit
(1,55 MB)

The Zanussi 392032 Modular Cooking Range Line EVO900 4-Burner Gas Range on Electric Oven is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Zanussi Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
