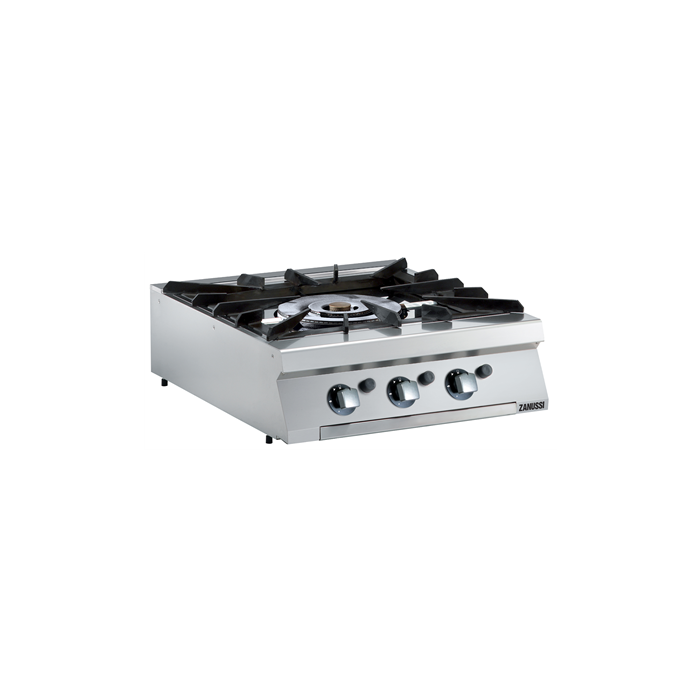

Zanussi 392024 Modular Cooking Range Line EVO900 3-Burner Gas Boiling Top

lowest price 7dayhef

  • Suitable for countertop installation.

  • Unit to be mounted on open base cupboards, bridging supports or cantilever systems.

  • The concentric one 5 kW, one 10 kW and one 15 kW high efficiency burners with optimized combustion, flame failure and protected pilot light are supplied in three sizes to suit high performing cooking requirements of the most demanding customers.
    • 60 mm diameter with a power of 5kW

    • 180 mm diameter with a power of 10 kW

    • 350 mm diameter with a power of 15 kW

  • Gas appliance supplied for use with LPG gas, conversion jets supplied as standard.

  • Large sized pan support in cast iron with long center fins to allow the use of the largest down to the smallest pans.

  • Flame failure device on each burner protects against gas leakage when accidental extinguishing of the flame occurs.

  • Separate controls for each burner to be ignited based on the size of the paella pan (manual ignition of the top burners).

  • The special design of the control knob system guarantees against water infiltration.

  • Work top in 20/10 Stainless steel.

  • IPX5 water protection.

  • All exterior panels in Stainless Steel with Scotch Brite finishing.

lowest price 7dayhef

Description / Zanussi 392024 Modular Cooking Range Line EVO900 3-Burner Gas Boiling Top

The Zanussi 392024 Modular Cooking Range Line EVO900 3-Burner Gas Boiling Top comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Zanussi Professional brands are renowned for their range of equipment.

Gas
  • Gas Power: 30 kW
  • Standard gas delivery: Natural Gas G20 (20mbar)
  • Gas Type Option: LPG
  • Gas Inlet: 1/2"
Key Information:
  • Back Burners Power: 5 - 0 kW
  • Middle Burners Power: 0 - 0/10 - 15 kW
  • Back Burners Dimension - mm ⌀ 60
  • Middle Burners Dimension - mm ⌀ 180 ⌀ 350
  • Net weight: 92 kg
  • Shipping weight: 69 kg
  • Shipping height: 540 mm
  • Shipping width: 1020 mm
  • Shipping depth: 860 mm
  • Shipping volume: 0.47 m³
  • Certification group: N9PG
Brochures
Range overviews
CAD Drawings
(214,99 KB)
Data Sheet
BIM/Revit
(700 KB)

The Zanussi 392024 Modular Cooking Range Line EVO900 3-Burner Gas Boiling Top is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Zanussi Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
