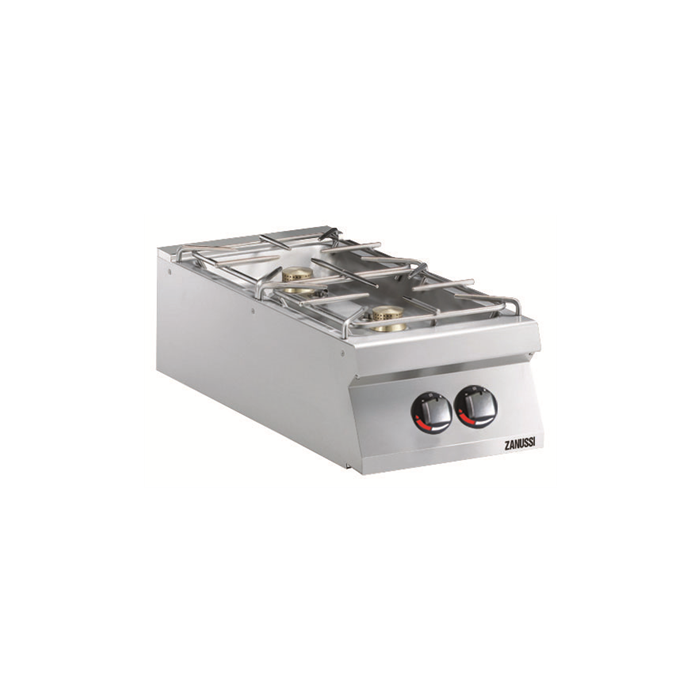

Zanussi 392000 Modular Cooking Range Line EVO900 2-Burner Gas Boiling Top

  • Control knobs provide smooth, continuous rotation from min to max power level.

  • Suitable for countertop installation.

  • Unit to be mounted on open base cupboards, bridging supports or cantilever systems.

  • The two 6 kW high efficiency flower flame burners are available in two different sizes to suit high performing cooking requirements of the most demanding customers.
    • 60 mm burners with continuous power regulation from 1,5 to 6 kW

    • 100 mm burners with continuous power regulation from 2.2 kW to 10 kW

  • Gas appliance supplied for use with natural or LPG gas, conversion jets supplied as standard.

  • Large sized pan support in cast iron (stainless steel as option) with long center fins to allow the use of the largest down to the smallest pans.

  • Burners with optimized combustion.

  • Flame failure device on each burner protects against gas leakage when accidental extinguishing of the flame occurs.

  • Protected pilot light.

  • The special design of the control knob system guarantees against water infiltration.

  • IPX5 water protection.

  • Pan supports in stainless steel.

  • Unit is 900mm deep to give a larger working surface area.

  • All exterior panels in Stainless Steel with Scotch Brite finishing.

  • AISI 304 stainless steel worktop, 2mm thick.

  • Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.

Description / Zanussi 392000 Modular Cooking Range Line EVO900 2-Burner Gas Boiling Top

The Zanussi 392000 Modular Cooking Range Line EVO900 2-Burner Gas Boiling Top comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Zanussi Professional brands are renowned for their range of equipment.

Gas
  • Gas Power: 12 kW
  • Standard gas delivery: Natural Gas G20 (20mbar)
  • Gas Type Option: LPG;Natural Gas
  • Gas Inlet: 1/2"
Key Information:
  • Front Burners Power: 6 - kW
  • Back Burners Power: 6 - 0 kW
  • Back Burners Dimension - mm ⌀ 60
  • Front Burners Dimension - mm ⌀ 60
  • Net weight: 43 kg
  • Shipping weight: 34 kg
  • Shipping height: 520 mm
  • Shipping width: 460 mm
  • Shipping depth: 1020 mm
  • Shipping volume: 0.24 m³
  • If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
  • Certification group: N9CG
Brochures
Range overviews
CAD Drawings
(239,38 KB)
Data Sheet
BIM/Revit
(1,03 MB)

The Zanussi 392000 Modular Cooking Range Line EVO900 2-Burner Gas Boiling Top is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Zanussi Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
