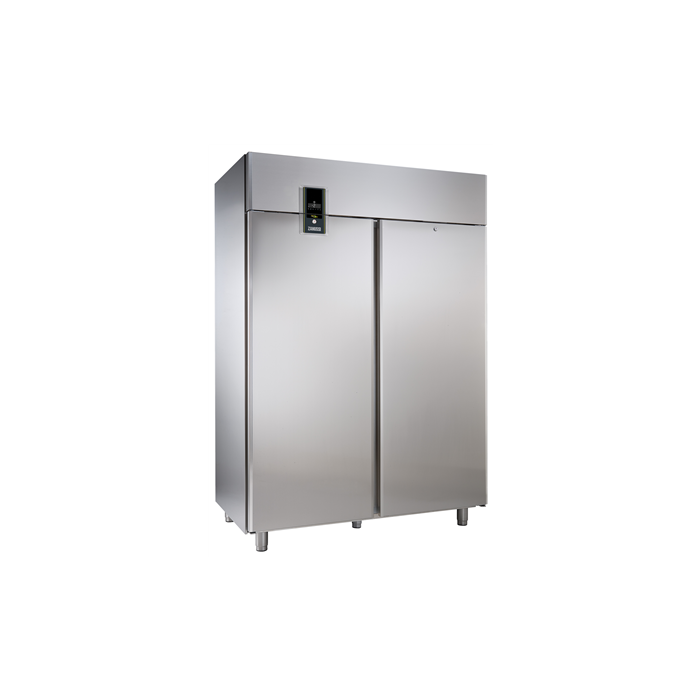

Zanussi 110131 NPT Active 2 Door Digital Refrigerator, 1430lt (-2/+10) - Remote
Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory).
Back to front forced air flow and removable air conveyors provide even temperature distribution and fast cooling in any conditions.
The Active Defrost activates the defrost cycle only when necessary and only for the required time.
Internal structure with 44 charging positions available to host grids, ensuring higher net capacity and a greater storage space.
Zanussi Professional Fridge Control APP make the life easier for our customers:
- Monitor safety of preservation process thanks to HACCP data & alarms precise control
- Save time and easy data management having the possibility to send the HACCP information in excel format directly to e-mail address
- Quick operations: set the cabinet temperature/humidity/turbocooling and set date/hour-
Possibility to select 3 different levels of humidity according with the type of food stored inside.
-
Large digital white-digit display with cabinet temperature display and setting, and possibility to select the desired levels of humidity. Bluetooth technology included allows to keep HACCP historical data and download them through the app.
-
Fully compliant HACCP digital control: when temperature exceeds critical limits, acoustic and visual alarms are activated. Up to 30 days of event are kept in memory.
Large storage area suitable to contain 2/1 GN grids or shelves on anti-tilt runners.
-
Operating temperature can be adjusted from -2 to +10 °C to suit different food storage requirements.
-
Cabinet fitted with up to 75 mm thickness of cyclopentane insulation for best insulating performance with 100% environmental protection (thermal conductivity: 0,020 W/m*K).
-
60 mm-thick insulation covering the evaporator can be easily removed with a single operation.
Prearranged to fit RS485 port to facilitate connection to a remote computer and integrated HACCP systems.
-
Rilsan coated grids for improved protection.
-
Interior base with rounded corners, pressed from a single sheet.
-
Lockable door.
Refrigerant type: R134a.
-
Remote refrigeration unit.
-
Constructed from the highest quality AISI 304 Stainless steel.
-
Easy access to the main components for maintenance.
Stainless steel runners and supports easily disassembled.
-
The rounded internal corners, the easily removable runners, grids and air conveyors allow for ease of cleaning and high hygiene standards.
-
Anti-corrosion bottom avoids any damage that may be caused to the cabinet by aggressive detergents employed to clean the floors.
Description / Zanussi 110131 NPT Active 2 Door Digital Refrigerator, 1430lt (-2/+10) - Remote
The Zanussi 110131 NPT Active 2 Door Digital Refrigerator, 1430lt (-2/+10) - Remote comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Zanussi Professional brands are renowned for their range of equipment.
Electric
- Supply voltage: 220-240 V/1 ph/50/60 Hz
- Electrical power max.: 0.155 kW
Refrigeration Data
- Control type: Digital
- Refrigeration type: R134a;R513A;R426A
- Suggested refrigeration power: 458 W
- Condition at evaporation temperature: -10 °C
- Condition at condensation temperature: 55 °C
- Condition at ambient temperature: 43 °C
- Connection pipes (remote) - outlet: 9.5 mm
- Connection pipes (remote) - inlet: 6 mm
- *Note: Ref. Power calculated at a linear distance of 15 mt (piping)
Key Information:
- Gross capacity: 1430 lt
- Door hinges: 1 Left+1 Right
- External dimensions, Width: 1441 mm
- External dimensions, Depth: 835 mm
- External dimensions, Depth with Doors Open: 1480 mm
- External dimensions, Height: 2050 mm
- Number and type of doors: 2 Full
- Number and type of grids (included): 8 - GN 2/1
- Type of external material: 304 AISI
- Type of internal material: 304 AISI
- Internal panels material: 304 AISI
- Number of positions & pitch: 44; 30 mm
CAD Drawings
Data Sheet
The Zanussi 110131 NPT Active 2 Door Digital Refrigerator, 1430lt (-2/+10) - Remote is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Zanussi Professional appliance is not a problem. This item may also be suitable for use in galley kitchens.
For further information please download the brochures using the link above or please call us on 0044 (0)117 405 7580.
