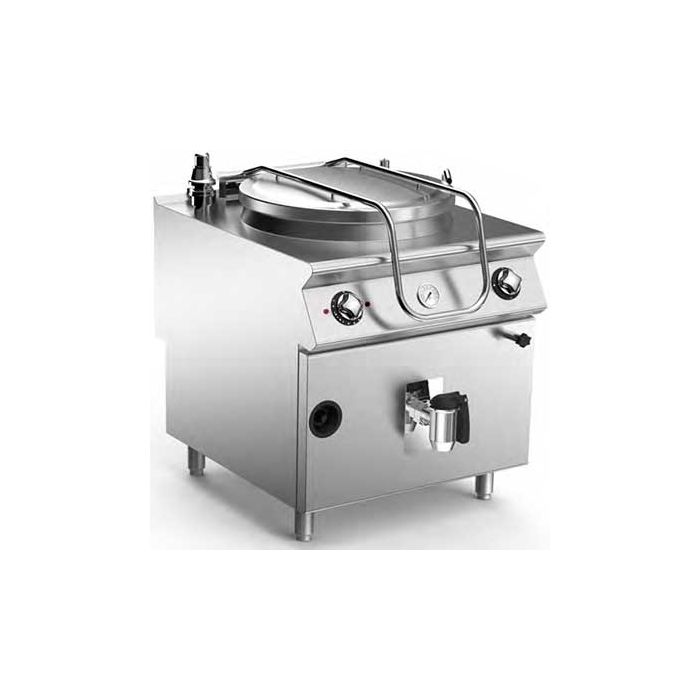

BOILING PANS SINGLE JACKET AND DOUBLE WATER JAC 140−LITRE INDIRECT HEAT GAS BOILING PAN. 900 Indirect heat gas boiling pan constructed in AISI 304 stainless steel. Top in 20/10 thick AISI 304 stainless steel. Kettle bottom in polished AISI 316L stainless steel, walls in AISI 304 stainless steel. 140−litre kettle capacity. Filling with hot or cold water through solenoid valve activated by a switch, fixed water tap located on top. 2" safety drain tap with grip inäheatproof material. Counter−balanced lid with 90° opening and handle offering front and side grip. Indirect heating with low−pressure steam generated by the water in the jacket: safe and easy operation thanks to pressure gauge, safety valve and compensating valve. Innovative control system with “no water” warning light; heating restarts after the water level in the jacket has been restored. Indirect heating with AISI 304 stainless steel burners positioned outside the jacket. Gas safety valve with electric ignition on front panel. Thick insulating panels for thermal insulation of kettle. Temperature controlled by an energy regulator. Indicator leds for verifying correct appliance operation. Diameter of kettle 600 mm. Model equipped with safety thermostat with reset button accessible to the user. Height adjustable feet in stainless steel. IPX5 protection rating. BOILING PANS SINGLE JACKET AND DOUBLE WATER JAC 140−LITRE INDIRECT HEAT GAS BOILING PAN. (AC) Hot water: Ø1/2"−H=200mm (AF) Cold water: Ø1/2"−H=200mm (AD) Softened water: (E) Socket 1: Connection supply terminal floor level (+100mm). Spare cable 1500mm
