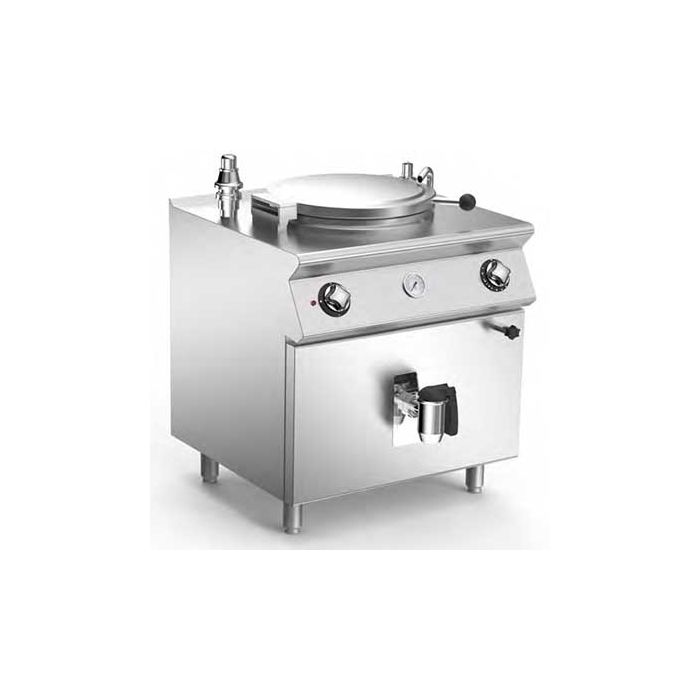

BOILING PANS SINGLE AND DOUBLE JACKET 80−LITRE INDIRECT HEAT ELECTRIC BOILING PAN. 730 Indirect heating electric pot constructed in AISI 304 stainless steel. Top in 15/10 thick AISI 304 stainless steel. Receptacle bottom in polished AISI 316L stainless steel, walls in AISI 304 stainless steel. 80−litre kettle capacity. Filling with hot or cold water through solenoid valve activated by a switch, fixed water tap located on top. 1 1/2 safety drain tap with grip inäheatproof material. Counter−balanced lid with 90° opening and handle offering front grip. Indirect heating with low−pressure steam generated by the water in the jacket: safe and easy operation thanks to pressure gauge, safety valve and compensating valve. Innovative control system with no water warning light; heating restarts after the water level in the jacket has been restored. Indirect heating with armoured heating elements inside the jacket. Thick insulating panels for thermal insulation of kettle. Temperature controlled by an energy regulator. Indicator leds for verifying correct appliance operation. Receptacle diameter: 500 mm. Model equipped with safety thermostat with reset button accessible to the user. Height adjustable feet in stainless steel. BOILING PANS SINGLE AND DOUBLE JACKET 80−LITRE INDIRECT HEAT ELECTRIC BOILING PAN. (AC) Hot water: Ø1/2"−H=200mm (AF) Cold water: Ø1/2"−H=200mm (AD) Softened water: (E) Socket 1: Connection supply terminal floor level (+100mm). Spare cable 1500mm
