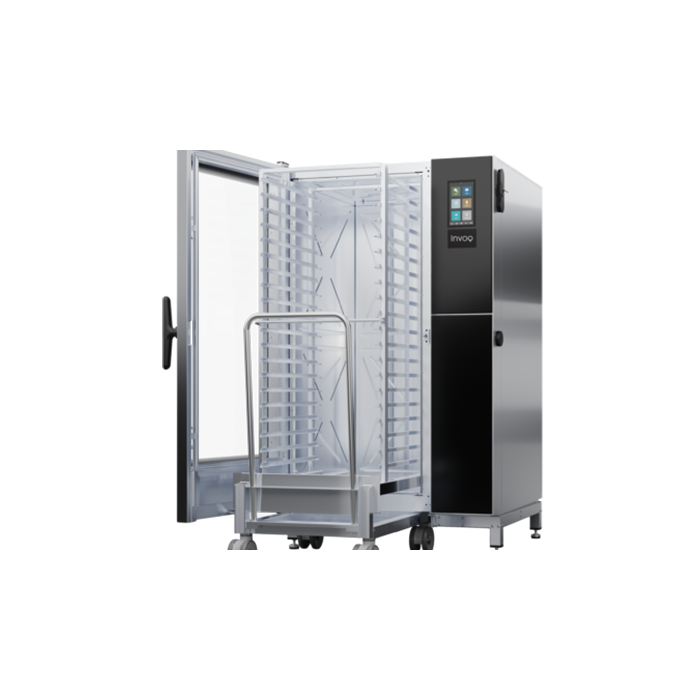

The Houno Combination Oven Invoq Combi 20-1/1 GN comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Houno brand is renowned for its range of equipment.

ClimateControl

ClimateControl ensures best-in-class performance, controlling the air, heat and humidity levels. It optimises processes and even shortens cooking times. The result is consistent uniformity and predictably high quality.

CareCycle

Select between seven different cycles from Light to Intense, Turbo or Eco. The Invoq oven guides you through the process and suggest the optimal cleaning program and required amount of cleaning tablets for the desired cycle. This ensures that the ratio of detergent to water is always correct and you avoid overconsumption.

MenuPlanner

MenuPlanner allows you to cook many different items, unsupervised at the same time, using a simple drag and drop interface. Both experienced and inexperienced users will appreciate the automatic notifications that ensure efficient, precise and on-time consistency.

SmartChef

SmartChef helps you learn from the oven to develop your signature style. You select type of food, cooking method and temperature, and SmartChef will automatically guide you to a great result. Afterwards, you can save and, if necessary, edit the formula.

Electrical oven

Power requirements

Power consumption [kW]: 38.2
Convection output [kW]: 36
Grid supply frequency [Hz]: 50-60

Voltage 400 V 3PN AC

Pre-fuse [A]: 63
RCD model: B/F

Voltage 415 V 3PN AC

Pre-fuse [A]: 63
RCD model: B/F

Voltage 440 V 3PN AC

Pre-fuse [A]: 63
RCD model: B/F

Water requirements

Water connection [inches:] 3/4
Drain [mm]: DIA50
Water pressure (min-max) [bar]: 1-6
Water flow [l/m]: 5.5

Heat rejection

Latent heat load [kW] -
Sensible heat output [kW] -

Noise emmission

Noise level without hood system [dB] -
Noise level with hood system [dB] -

IP classification

IP class: IPX5

Data

Wi-Fi module: IEEE 802.11 b/g/n
LAN: RJ45

Capacity

1/1 GN
20 trays with 65 mm runners
Maximum working height of 1.6 m
4.5 kg maximum food load per tray
90 kg maximum food load per oven

Dimensions & weight

Dimensions excl. handle (HxWxD) [mm]: 1730 x 937 x 841
Dimensions incl. handle (HxWxD) [mm]: N/A
Dimensions incl. handle and stand (HxWxD) [mm]: 1730 x 937 x 923
Shipping dimensions (HxWxD) [mm]: 2050 x 1000 x 1200
Net weight [kg] -
Shipping weight [kg] -
Clearance (right, left, back) [mm]: 0 x 0 x 40
Maximum working height [mm] with basic stand: 1631

*Download spec sheet for dimensional drawings

Product certifications

Gas oven
