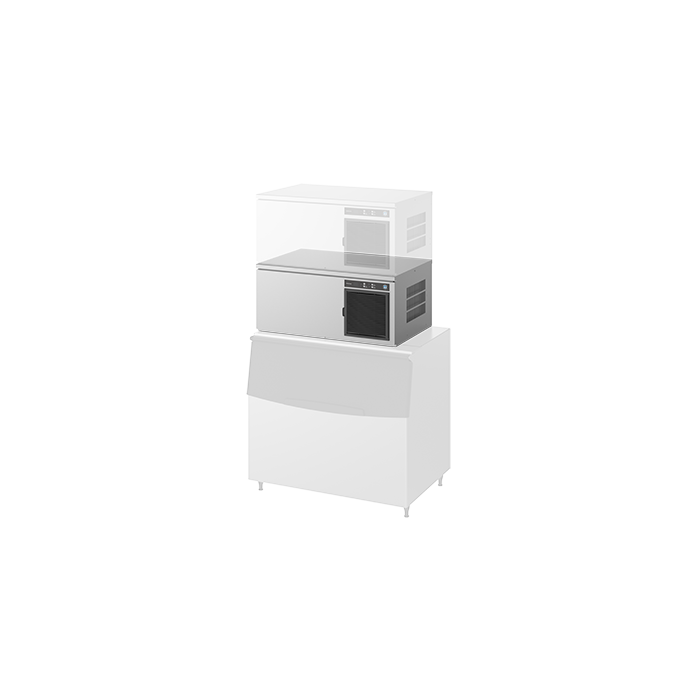

Hoshizaki IM-240XWNE-HC-C Cylinder Ice Maker, Modular & Stackable

lowest price 7dayhef
This stackable modular cylinder ice maker is part of a unique range of cubers; designed with hygiene as a priority. Each ice cycle is made with fresh water, ensuring only the highest quality of ice. Cylinder ice is mostly used in soft drinks and tube glasses to maximize the turnover. This model is configured with our storage bins, and can be stacked to multiply the ice production.
lowest price 7dayhef

Description / Hoshizaki IM-240XWNE-HC-C Cylinder Ice Maker, Modular & Stackable

The Hoshizaki IM-240XWNE-HC-C Cylinder Ice Maker, Modular & Stackable comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Hoshizaki Gram brand is renowned for its range of equipment.

Sustainable
The IM-240XWNE-HC-C uses refrigerant R290.
This natural refrigerant is not only climate-friendly but also boosts the machine, when it comes to performance and production capacity.

Material
The exterior is made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during the entire cubing process. All Hoshizaki machines are easy to use, clean, and maintain.

Unique Technology
A dedicated jet of fresh water is injected into each of the closed cells. Excess water leaves the closed cell through a set of outlets. The cell walls block the freezing water°s expansion from all sides while reaching down to -30°C during the cubing process.  Thanks to the automatic rinse cycles, impurities such as minerals, are eliminated from the water resulting in the purest ice possible while your machine is protected from calcification and mineral build-up.

Smart Design
Like all Hoshizaki Ice makers, the IM-240XWNE-HC-C is designed to last and comes with smart design extras such as a magnetic water pump without direct coupling. This element prevents leakage from the water circuit and improves the life expectancy of the machine.

Perfect Fit
Need to amp up your production capacity° These ice makers can be stacked and combined with modular bins and bases. This allows the user to mix and match depending on individual requirements, ice consumption, and space conditions. The dimensions of the IM-240XWNE-HC-C are  1084 x 700 x 485 mm.

Plug&Play
The smart plug-and-play design guarantees an easy and quick set-up.


Product series

IM

Model name

IM-240XWNE-HC-C

Item numberM071-D125
Product title

Cylinder Ice Maker, Modular & Stackable

Production capacity (kg/24h) approx.

205

Electric connection

1/220 - 240V/50Hz

Electric consumption (kW)

1.77

Outside dimensions W x D x H (mm)

1084 x 700 x 485

Ice type

Cylinder

Refrigerant

R290

CO2 equivalent (kg)

0.000441

Cooling system

Water Cooled

Product configuration

Stackable

Net weight (kg)

80

Gross Weight Packed (kg)

92

Corresponding bin(s)

B-340SA, F-1025-52S, F-650-44S, F-950-48S

Icemaking Water Consumption (m3/24h) approx. (AT 10°C, WT 10°C)

0.57

Icemaking Water Consumption (m3/24h) approx. (AT 21°C, WT 15°C)

0.27

Icemaking Water Consumption (m3/24h) approx. (AT 32°C, WT 21°C)

0.2

Condenser cooling water flow (m3/24h) approx. (AT 10°C, WT 10°C)

0.9

Condenser cooling water flow (m3/24h) approx. (AT 21°C, WT 15°C)

1.2

Condenser cooling water flow (m3/24h) approx. (AT 32°C, WT 21°C)

1.4

The Hoshizaki IM-240XWNE-HC-C Cylinder Ice Maker, Modular & Stackable is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Hoshizaki Gram appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 405 7580.
