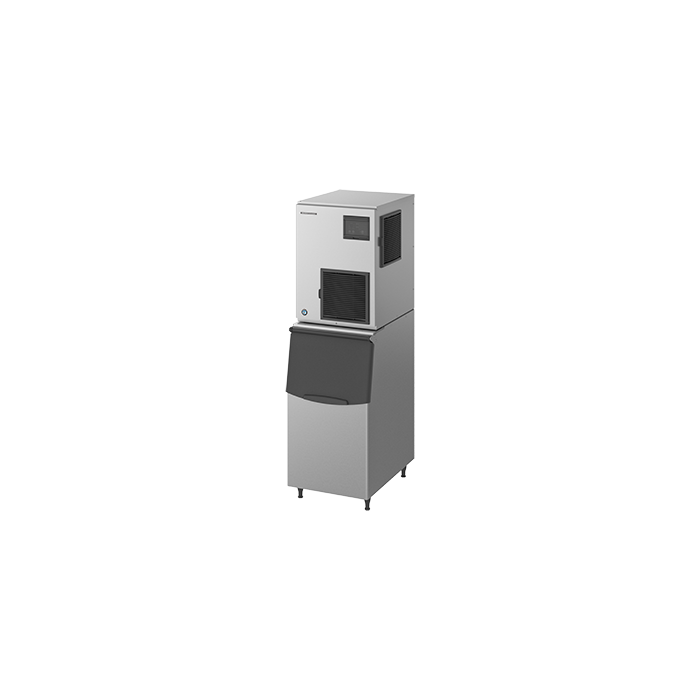

Hoshizaki FM-480AWKE-R452-SB Flaker, Modular

lowest price 7dayhef
This modular ice maker produces flake ice, which is often used for produce display of fish, fresh food and bottled beverages. In the medical field, flake ice is also used for organ transportation. Utilizing the most efficient ice making process due to the unique auger system, the water consumption is equal to the ice production. The main characteristic of Hoshizaki°s flake ice is that °freeze-burn° is prevented when displaying fresh fish or produce. This model has a stainless steel bottom and is configured with our storage bins.
lowest price 7dayhef

Description / Hoshizaki FM-480AWKE-R452-SB Flaker, Modular

The Hoshizaki FM-480AWKE-R452-SB Flaker, Modular comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Hoshizaki Gram brand is renowned for its range of equipment.

The FM-480AWKE-R452-SB uses refrigerant R452A.

Material
The exterior and the auger are made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during ice production. All Hoshizaki machines are easy to use, clean, and maintain.

Unique Technology
The inner workings of Flakers are designed to prevent unpleasant calcification and bacterial contamination. For example, the use of carbon graphite bushings instead of conventional ball bearings allows the machine to work entirely without grease.

Smart Design
Like all Hoshizaki Ice makers, the FM-480AWKE-R452-SB is designed to last and comes with smart design extras, such as the intuitive control display for preventive maintenance.

Perfect Fit
Need to amp up your production capacity° The variable setups with modular bins and bases allow the user to mix and match depending on individual requirements and conditions. The dimensions of the FM-480AWKE-R452-SB are 560 x 700 x 780 mm.

Plug&Play
The smart plug-and-play design guarantees an easy and quick set-up.


Product series

FM

Model name

FM-480AWKE-R452-SB

Item numberF082-C222
Production capacity (kg/24h) approx.

420

Electric connection

1/220 - 240V/50Hz

Electric consumption (kW)

1.385

Outside dimensions W x D x H (mm)

560 x 700 x 780

Ice type

Flake

Refrigerant

R452A

Cooling system

Water Cooled

Product configuration

Modular

Net weight (kg)

95

Gross Weight Packed (kg)

102

Corresponding bin(s)

B-140SA, B-210SA, B-340SA

Icemaking Water Consumption (m3/24h) approx. (AT 10°C, WT 10°C)

0.42

Icemaking Water Consumption (m3/24h) approx. (AT 21°C, WT 15°C)

0.38

Icemaking Water Consumption (m3/24h) approx. (AT 32°C, WT 21°C)

0.34

Condenser cooling water flow (m3/24h) approx. (AT 10°C, WT 10°C)

1.207

Condenser cooling water flow (m3/24h) approx. (AT 21°C, WT 15°C)

1.622

Condenser cooling water flow (m3/24h) approx. (AT 32°C, WT 21°C)

2.41

The Hoshizaki FM-480AWKE-R452-SB Flaker, Modular is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Hoshizaki Gram appliance is not a problem. This item may also be suitable for use in galley kitchens.
