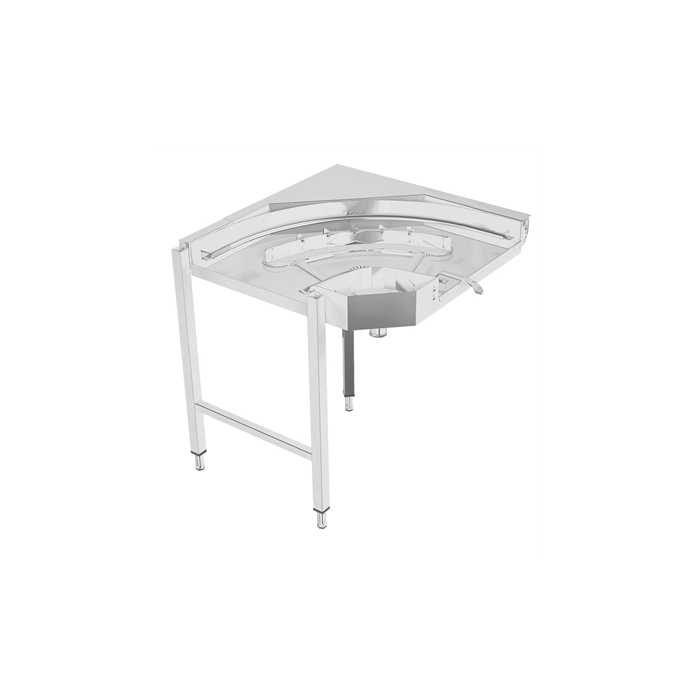

Electrolux Unloading Dishwashing Driven 90 Curve - Counterclockwise direction PNC 865250

In stock
SKU
865250

Main Features

  • 90 cut corner to fit compatibly with corner dryer of entry rack type.

  • Available counterclockwise direction for unloading area.

  • The curve is driven by the dishwasher as the feeding arm in the curve will be connected with the conveyor of the dishwasher.

  • Loading curves provided with anti-jamming device to avoid rack jam.

  • "Key holes" and "snap on" system reduces the number of screws needed for fast and easy installation.

  • Dishwasher driven 90 curve is intended for installation between a dishwasher and a roller conveyor.

  • Designed to transport 500x500 mm dishwashing baskets.

  • Three legs included.

  • Stainless steel feet 50 mm adjustable in height to align the operation height between the dishwasher and table.

  • AISI 304 1,2mm stainless steel basin.

  • 40x40mm stainless steel tubular and square legs.

  • All surfaces smooth with polished finish.

  • Sloping bottom of the table grants a smooth and rapid drainage.

  • Thick welded flanges for sturdy connection between the units.


Unloading curve Unit, 90, for entry level Rack Type Dishwasher, driven counterclockwise, only for NERT Rack Type Dishwasher

The Electrolux Unloading Dishwashing Driven 90 Curve - Counterclockwise direction PNC 865250 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Key Information:
  • External dimensions, Width: 850 mm
  • External dimensions, Height: 910 mm
  • External dimensions, Depth: 850 mm
  • Net weight: 25 kg
  • Height adjustment: 50/50 mm
  • Position to dishwasher: Unloading
  • Basin material: Stainless Steel AISI 304 - EN 1.4301

The Electrolux Unloading Dishwashing Driven 90 Curve - Counterclockwise direction PNC 865250 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
