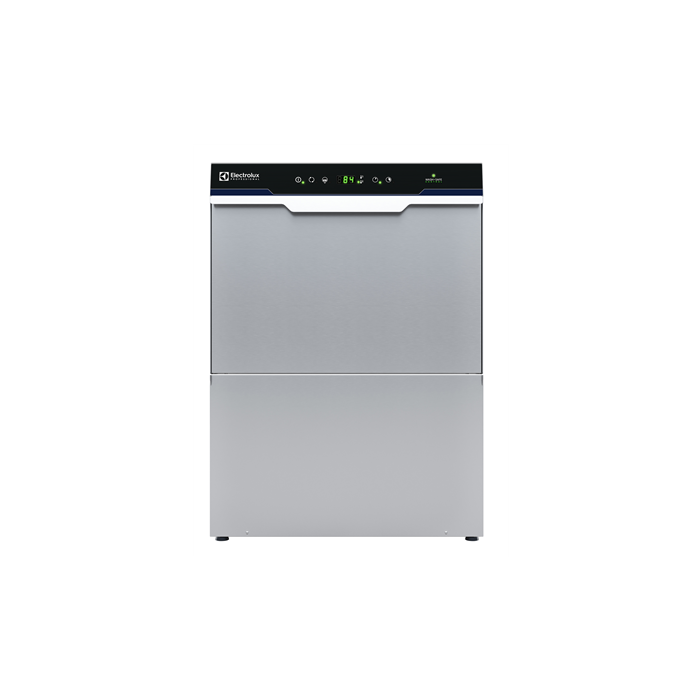

Electrolux Undercounter Dishwasher with Wash-Safe Control, single skin, drain pump & rinse aid dispenser, 720 dishes/hour PNC 400217

Main Features

• 4 second (variable) pause after washing and before rinsing ensures that no drops of unclean water will fall on the clean items at the end of the rinsing cycle.

• An effective rinse system uses only 3 liters of clean hot water per basket for lower running costs.

• Incorporated Soft Start feature to offer additional protection to more delicate items.

• Constant temperature of 84 C thoughout the rinsing cycle regardless of the network's water pressure and temperature.

• Built-in rinse aid dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.

• Digital read-out keeps operator informed as to temperatures.

• Green light of "WASH SAFE CONTROL" confirms that items have been rinsed properly.

• High efficiency air gap (class A) in water inlet circuit to avoid water being siphoned back into the network as a result of a sudden drop in main pressures.

• IPx4 water protection.

• State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.

• Unique temperature interlock guarantees required temperatures in both the wash and final rinse.

• Washing capacity of 40 baskets or 720 dishes per hour.

• Washing system endowed with rotating washing arms, high powered wash pump and large capacity boiler for professional washing.

• Fully automatic self-cleaning cycle avoids the risk of bacteria proliferation.

• Simple control panel with digital display allows on-site personalization of washing and rinsing cycle times and temperatures as well as precise rinse aid and detergent quantities to suit customer's needs.

• Simple service from the front.

• Pre-arranged to accept external dispensers.

• Pre-arrangement for HACCP system implementation and Energy Management device.

• Built-in atmospheric boiler sized to raise incoming water to 84 C minimum for sanitizing rinse. No external booster is required.

• Element protection from dry fire and low water.

• Incorporated drain pump to control water level in wash tank draining.

• Interchangeable wash/rinse arms screw out for simple clean up.

• The boiler drain facilitates the evacuation of stagnant water after long periods of inactivity to ensure a higher level of hygiene.

• Double skin insulated door to reduce heat dispersion.

• Unit to feature smooth surfaces to facilitate cleaning.

• Front and side panels, door and wash tank made in heavy duty anti-corrosive AISI 304 stainless steel.

• 304 stainless steel boiler with higher welding protection to increase resistance to corrosion.

• PVC water supply hose with metal connections resistant to high water pressure.

• Completely closed on the back by a cover plate.

• Large wash tank with round corners and no pipes to avoid dirt built-up.

• Single phase electrical connection.

• Unit to include drain pump and rinse aid dispenser pump.

Undercounter Dishwasher with WASH-SAFE CONTROL, single skin, built-in drain pump and rinse aid dispenser, 1 phase, 720d/h
