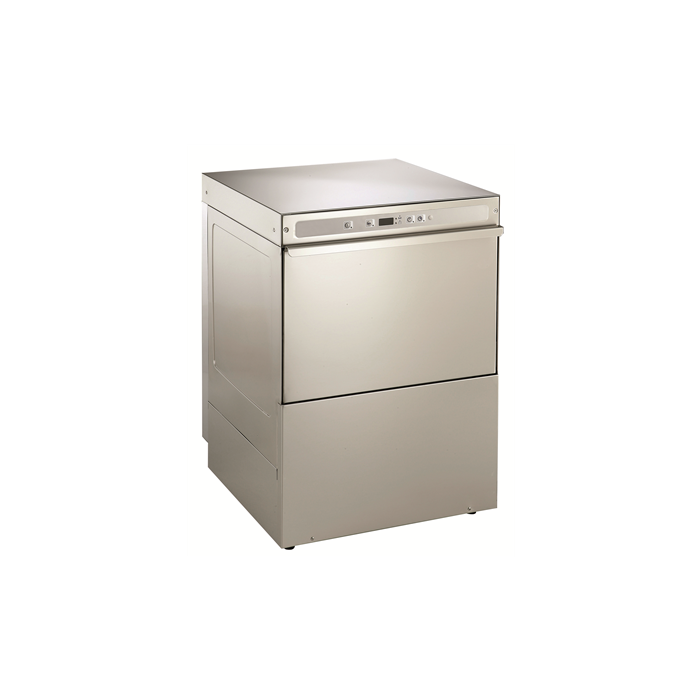

Electrolux Undercounter Dishwasher with Pressure Boiler & Drain Pump PNC 400149

Electrolux

In stock

SKU

400149

Main Features

Equipped with drain pump for easy and quick installation without opening the machine.
4 second (variable) pause after washing and before rinsing ensures that no drops of unclean water will fall on the clean items at the end of the rinsing cycle.
Incorporated Soft Start feature to offer additional protection to more delicate items.
Built-in pressure boiler sized to raise incoming 50 C water to guarantee a minimum rinsing temperature of 82 C for sanitizing rinse. No external booster is required.
IPx4 water protection.
120/180 seconds cycle.
Washing system endowed with rotating washing arms, high powered wash pump and large capacity boiler for professional washing.
Fully automatic self-cleaning cycle avoids the risk of bacteria proliferation.
Easy to remove wash/rinse arms for cleaning.
Simple control panel with digital display allows on-site personalization of washing and rinsing cycle times and temperatures as well as precise rinse aid and detergent quantities to suit customer's needs.
Simple service from the front.
Pre-arranged to accept external dispensers.
Pre-arrangement for HACCP system implementation and Energy Management device.
Unit to feature smooth surfaces to facilitate cleaning.
Front and side panels, door and wash tank made in heavy duty anti-corrosive AISI 304 stainless steel.
304 stainless steel boiler with higher welding protection to increase resistance to corrosion.
PVC water supply hose with metal connections resistant to high water pressure.
Completely closed on the back by a cover plate.
Single phase electrical connection.

Undercounter Dishwasher, single skin with pressure boiler and drain pump, 540d/h

Details

The Electrolux Undercounter Dishwasher with Pressure Boiler & Drain Pump PNC 400149 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric

Supply voltage: 220-230 V/1N ph/60 Hz
Default Installed Power: 3.65 kW
Tank heating elements: 2 kW

Key Information:

Baskets per hour*: 30
Dishes per hour: 540
N of working cycles: 2 (120/180)
Wash temperature: 55-65C
Cell dimensions - width: 500 mm
Cell dimensions - depth: 500 mm
Cell dimensions - height: 330 mm
Rinse temperature: 80-90 C
External dimensions, Width: 600 mm
External dimensions, Height: 820 mm
External dimensions, Depth: 610 mm
Packaging size

(WxDxH): 600x610x820 mm
Noise level: <70 dBA

Water:

Water supply temperature*: 50 C
Drain line size: 20.5mm
Inlet Water supply pressure: 29 - 44 psi (2 - 3 bar)
Water consumption per cycle (lt): 3.3
Boiler Capacity (lt): 5.8
Tank Capacity (lt): 33
Hot rinse cycle duration (sec.): 16
Min hot rinse water consumption (lt/cycle)**: 3.3

The Electrolux Undercounter Dishwasher with Pressure Boiler & Drain Pump PNC 400149 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
