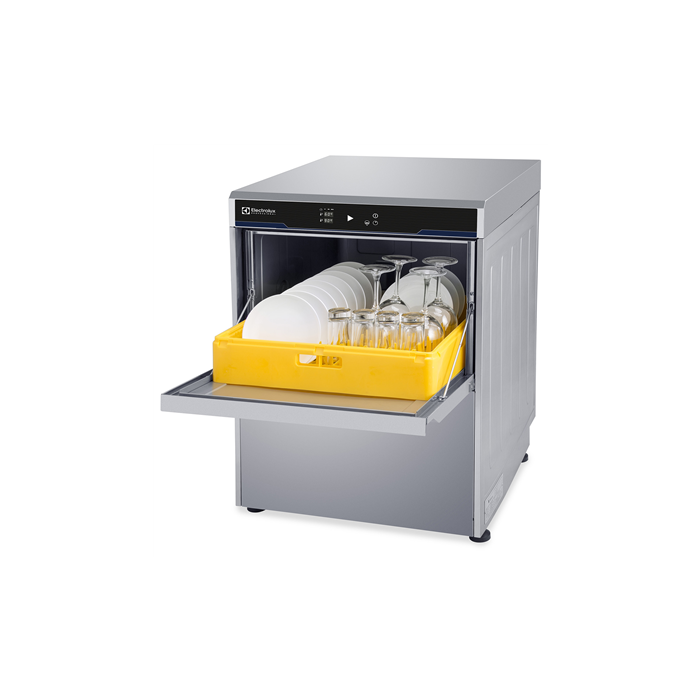

Electrolux Undercounter Dishwasher Insulated with pressure boiler drain pump, rinse aid & detergent dispensers PNC 520001

£2,526.00 £2,105.00
In stock
SKU
520001

Main Features

  • Digital read-out keeps operator informed as to temperatures.

  • Double skinned insulated wall ensures a low noise level and a reduction in heat loss from the machine.

  • IPx4 water protection.

  • Low noise level.

  • State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.

  • Unique temperature interlock guarantees required temperatures in both the wash and final rinse.

  • Utilizes fresh hot rinse water.

  • Washing capacity of 40 baskets or 720 dishes per hour.

  • Built-in pressure boiler designed to raise incoming water to a guaranteed minimum temperature of 82C for sanitizing rinse. No external boiler is required.

  • 90/120/180 seconds cycle.

  • Few seconds (variable) pause after washing and before rinsing ensures that no drops of unclean water will fall on the clean items.

  • An effective rinse system uses only 2.8 liters of clean hot water per basket for lower running costs.

  • Triple layer filtering system having large tank filter with double layer strainer to keep water clean for a long time.

  • Plug-in designed with integrated drain pump, detergent and rinse aid dispensers for fast and easy installation.

  • Built-in detergent and rinse aid dispenser with automatic initial and continuous cycle loading for perfect results while minimizing service and maintenance needs.

  • Element protection from dry fire and low water.

  • Heavy duty Stainless steel construction.

  • Interchangeable wash/rinse arms screw out for simple clean up.

  • Internal cavity as well as exterior panels are all 304 series Stainless steel.

  • Revolving wash/rinse arms above and below the basket.


Undercounter dishwasher, double skin, insulated with pressure boiler, drain pump, rinse aid & detergent dispensers, 400V/3N/50Hz - China & South East Asia

The Electrolux Undercounter Dishwasher Insulated with pressure boiler drain pump, rinse aid & detergent dispensers PNC 520001 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 400 V/3N ph/50 Hz
  • Default Installed Power: 5.05 kW
  • Tank heating elements: 2 kW
Key Information:
  • Baskets per hour*: 40
  • Dishes per hour: 720
  • Working cycles time (sec.): 90/120/180
  • N of working cycles: 3 (90/120/180)
  • Wash temperature: 55-65C
  • Cell dimensions - width: 500 mm
  • Cell dimensions - depth: 500 mm
  • Cell dimensions - height: 310 mm
  • Rinse temperature: 80-90 C
  • External dimensions, Width: 600 mm
  • External dimensions, Height: 840 mm
  • External dimensions, Depth: 612 mm
  • Shipping weight: 14 kg
  • Shipping height: 350 mm
  • Shipping width: 500 mm
  • Noise level: <70 dBA
Water:
  • Water supply temperature*: 10-60 C
  • Drain line size: 22mm
  • Inlet Water supply pressure: 29 - 73 psi (2 - 5 bar)
  • Boiler Capacity (lt): 5.8
  • Tank Capacity (lt): 13
  • Water supply hardness (fH / dH): 7-14 / 4-8
  • Hot rinse cycle duration (sec.): 10
  • Min hot rinse water consumption (lt/cycle)**: 2.8

The Electrolux Undercounter Dishwasher Insulated with pressure boiler drain pump, rinse aid & detergent dispensers PNC 520001 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
