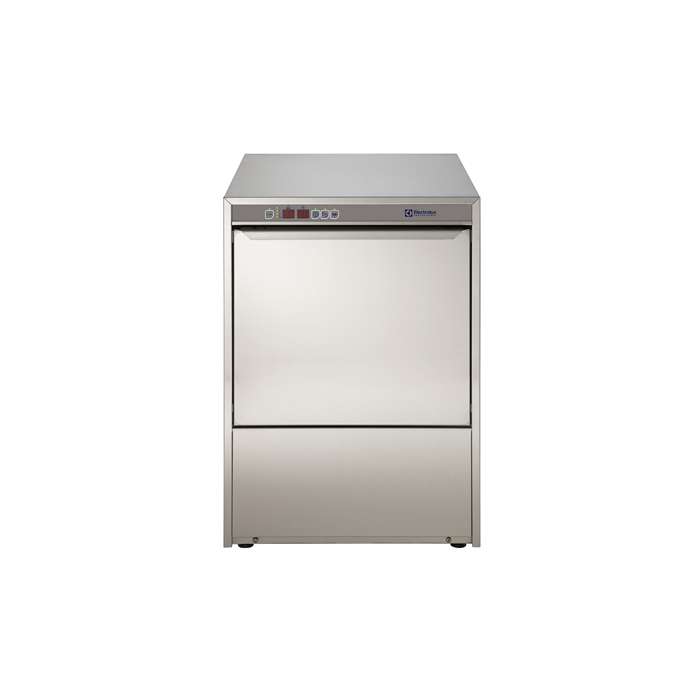

Electrolux Undercounter Dishwasher for 600x400mm trays with Drain Pump, Detergent Dispenser & Water Softener PNC 400136

In stock
SKU
400136

Main Features

  • Low noise level.

  • Washing system endowed with rotating washing arms, high powered wash pump and large capacity boiler for professional washing.

  • Easy to remove wash/rinse arms for cleaning.

  • Simple service from the front.

  • A pause of a few seconds after washing and before rinsing ensures that no drops of unclean water will fall on the clean items at the end of the rinsing cycle.

  • 60/120/180/300 seconds cycle.

  • Large washing chamber is suitable for both 500x500 mm standard baskets and 600x500 mm baskets to wash 600x400 mm trays.

  • Electronic control panel with temperature display to easily operate and monitor machine status.

  • Equipped with drain pump for easy and quick installation without opening the machine.

  • Built-in atmospheric boiler with rinse booster pump to provide constant water temperature and pressure for rinsing, independent from water inlet.

  • Equipped with water softener to ensure optimal rinsing results.

  • IPX3 protected.

  • Unit to feature smooth surfaces to facilitate cleaning.

  • Front and side panels, door and wash tank made in heavy duty anti-corrosive AISI 304 stainless steel.

  • Completely closed on the back by a cover plate.

  • Double skinned construction.

  • Unit to feature rinse aid and detergent dispenser pumps.


Undercounter Dishwasher for 600x400 mm trays, double skin, atmospheric boiler, drain pump, detergent dispenser and water softener, capacity 360 trays/h

The Electrolux Undercounter Dishwasher for 600x400mm trays with Drain Pump, Detergent Dispenser & Water Softener PNC 400136 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 400 V/3N ph/50 Hz
  • Convertible to: 230 V / 1+N / 50 Hz;

    230 V / 3 / 50 Hz
  • Default Installed Power: 6.65 kW
  • Tank heating elements: 2.7 kW
  • Wash pump power: 0.65 kW
Key Information:
  • Washing cycle temperature: 55-65 C
  • Baskets per hour*: 60
  • Dishes per hour: 1080
  • N of working cycles: 4 (60/120/180/300)
  • Wash temperature: 55-65C
  • Cell dimensions - width: 500 mm
  • Cell dimensions - depth: 600 mm
  • Cell dimensions - height: 400 mm
  • Rinse temperature: 85 C
  • External dimensions, Width: 600 mm
  • External dimensions, Height: 860 mm
  • External dimensions, Depth: 680 mm
  • Noise level: 61,3 dBA
Water:
  • Pressure, bar min/max: 2-4 bar
  • Water supply temperature*: 10-55 C
  • Drain line size: 24mm
  • Inlet water supply pressure: 2-4 bar
  • Washing tank capacity (lt): 16.5
  • Water consumption per cycle (lt): 2.3
  • Boiler Capacity (lt): 5.8
  • Tank Capacity (lt): 16.5
  • Washing cycle electrical elements: 2.7 kW
  • Min hot rinse water consumption (lt/cycle)**: 2.3

The Electrolux Undercounter Dishwasher for 600x400mm trays with Drain Pump, Detergent Dispenser & Water Softener PNC 400136 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
