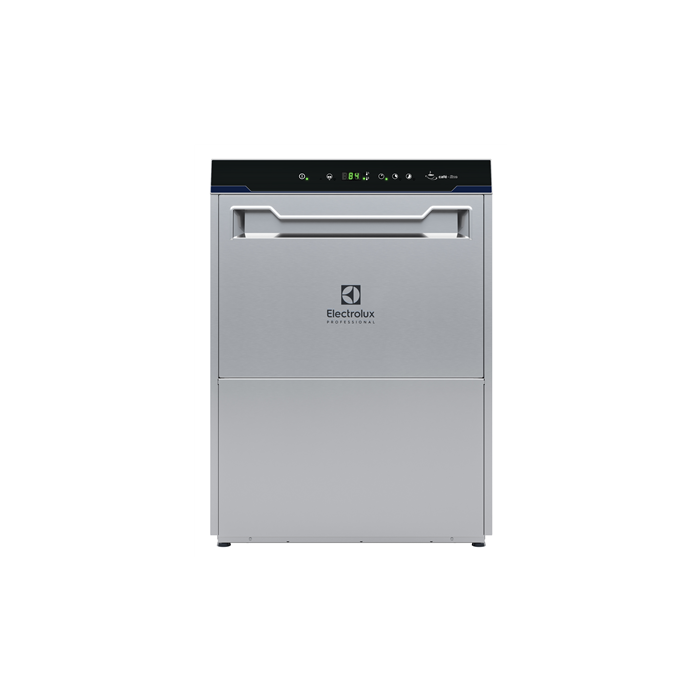

Electrolux Undercounter Dishwasher with atmospheric boiler, double skin, drain pump, detergent and rinse aid dispenser, 720 dishes/hour - Café line PNC 502720

£4,458.00 £3,715.00
In stock
SKU
502720

Main Features

  • 4 second (variable) pause after washing and before rinsing ensures that no drops of unclean water will fall on the clean items at the end of the rinsing cycle.

  • Incorporated Soft Start feature to offer additional protection to more delicate items.

  • Constant temperature of 84 C thoughout the rinsing cycle regardless of the network's water pressure and temperature.

  • Built-in rinse aid and detergent dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.

  • Digital read-out keeps operator informed as to temperatures.

  • Double skinned insulated wall ensures a low noise level and a reduction in heat loss from the machine.

  • High efficiency air gap (class A) in water inlet circuit to avoid water being siphoned back into the network as a result of a sudden drop in main pressures.

  • IPx4 water protection.

  • Low noise level.

  • State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.

  • Three phase or single phase electrical connection, convertible on-site.

  • Unique temperature interlock guarantees required temperatures in both the wash and final rinse.

  • Washing capacity of 40 baskets or 720 dishes per hour.

  • Washing system endowed with rotating washing arms, high powered wash pump and large capacity boiler for professional washing.

  • Fully automatic self-cleaning cycle avoids the risk of bacteria proliferation.

  • Simple control panel with digital display allows on-site personalization of washing and rinsing cycle times and temperatures as well as precise rinse aid and detergent quantities to suit customer's needs.

  • Simple service from the front.

  • Pre-arrangement for HACCP system implementation and Energy Management device.

  • Slanted wash arms to avoid detergent-filled wash water dropping on clean dishes after the rinsing phase, thus guaranteeing ideal washing results.

  • Built-in atmospheric boiler sized to raise incoming water to 84 C minimum for sanitizing rinse. No external booster is required.

  • Solid double skinned counter-balance door with hurt-free handle fully in stainless steel.

  • An effective rinse system uses only 2,5 litres of clean hot water per basket for lower running costs.

  • 4 rollers under the machine to allow it to be easily extracted for cleaning.

  • Element protection from dry fire and low water.

  • Incorporated drain pump to control water level in wash tank draining.

  • Interchangeable wash/rinse arms screw out for simple clean up.

  • Large deep drawn wash tank and internal wash area with round corners and no pipes to avoid dirt built-up.

  • Revolving Stainless steel wash/rinse arms above and below the basket.

  • The boiler drain facilitates the evacuation of stagnant water after long periods of inactivity to ensure a higher level of hygiene.

  • Unit to feature smooth surfaces to facilitate cleaning.

  • 304 stainless steel boiler with higher welding protection to increase resistance to corrosion.

  • PVC water supply hose with metal connections resistant to high water pressure.

  • Completely closed on the back by a cover plate.

  • Large tank filter collects the soil to keep the wash water clean for a longer time and have better washing performance.

  • Unit to feature drain pump, rinse aid and detergent dispenser pumps.

  • Front panel, door, wash tank, tank filters, wash arms and rinse arms made in heavy duty anti-corrosive 304 AISI stainless steel.


Undercounter Dishwasher with atmospheric boiler, double skin, built-in drain pump, detergent and rinse aid dispensers, 1 phase, 720d/h - Caf line

The Electrolux Undercounter, atmospheric boiler, double skin, drain pump, det&rinse aid disp, 720d/h - Caf line PNC 502720 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 230 V/1 ph/50 Hz
  • Convertible to: 400V 3N~; 230V 3~
  • Default Installed Power: 6.85 kW
  • Boiler heating elements: 6 kW
  • Tank heating elements: 2 kW
  • Wash pump size: 0.736 kW
Key Information:
  • Baskets per hour*: 40
  • Dishes per hour: 720
  • Working cycles time (sec.): 90/120/240
  • Wash temperature: 55-65C
  • Cell dimensions - width: 500 mm
  • Cell dimensions - depth: 500 mm
  • Cell dimensions - height: 335 mm
  • Rinse temperature: 84 C
  • External dimensions, Width: 600 mm
  • External dimensions, Height: 820 mm
  • External dimensions, Depth: 615 mm
  • Packaging size

    (WxDxH): 690x620x920 mm
  • Noise level: 61 dBA
Water:
  • Pressure, bar min/max: 0.5-7 bar
  • Water supply temperature*: 50 C
  • Drain line size: 20.5mm
  • Inlet Water supply pressure: 7 - 102 psi (0.5 - 7 bar)
  • Washing tank capacity (lt): 23
  • Water consumption per cycle (lt): 2.5
  • Boiler Capacity (lt): 12

The Electrolux Undercounter, atmospheric boiler, double skin, drain pump, det&rinse aid disp, 720d/h - Caf line PNC 502720 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
