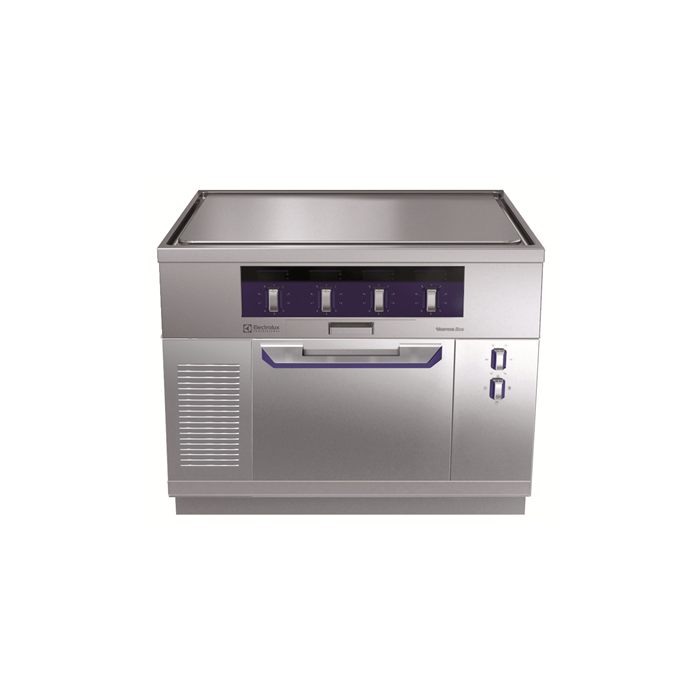

Electrolux thermaline 90 - Electric Free-cooking Top on Oven with Backsplash H=700 PNC 589662

Main Features

  • Rapid heat up of the plate and continuously ready for use.

  • Overheat protection: a temperature sensor switches off the supply in case of overheating.

  • Wide rounded cleaning zone around the plates for easier cleaning.

  • IPX5 water resistance certification.

  • 40 mm thick oven door for heat insulation.

  • All major components may be easily accessed from the front.

  • THERMODUL connection system creates a seamless work top when units are connected to each other thus avoiding soil penetrating vital components and facilitating the removal of units in case of replacement or service.

  • Metal knobs with embedded hygienic silicon "soft" grip for easier handling and cleaning. The special design of the controls prevent infiltration of liquids or soil into vital components.

  • Large visible digital display manufactured in tempered glass to resist heat and chemicals, showing temperatures or power settings. The display also shows on/off status of the appliance and on/off status of the heating elements.

  • Standby function for energy saving and fast recovery of maximum power.

  • Cooking plate and base joint profile guarantee against soil infiltration.

  • Surface temperature up to 350C

  • Handles are ergonomically designed with silicon "soft" grip for easy handling and cleaning.

  • Oven chamber to have 2 levels of runners to accommodate 2/1 GN trays and ribbed enamelled steel base plate.

  • The upper heating element of the oven can also be used for grilling.

  • Manual control of humidity in cooking chamber.

  • Electronic sensor for precise temperature control.

  • Unit constructed according to DIN 18860_2 with 70 mm recessed plinth.

  • For direct and indirect cooking.

  • Oven temperature up to 300 C

  • Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth.

  • Flat surface construction with minimal hidden areas to easily clean all surfaces

  • Unit constructed according to DIN 18860_2 with 20 mm drop nose top.

  • Cooking surface is an electrically heated solid plate made from 20 mm thick stainless steel AISI 316 - DIN 1.4404.

  • 2mm thick top in stainless steel AISI 304 - DIN 1.4301.

  • Internal frame for heavy duty sturdiness in stainless steel.


Electric Free-Cooking Top, one-side operated with backsplash, on Oven

Description / Electrolux thermaline 90 - Electric Free-cooking Top on Oven with Backsplash H=700 PNC 589662

The Electrolux thermaline 90 - Electric Free-cooking Top on Oven with Backsplash H=700 PNC 589662 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 400 V/3N ph/50/60 Hz
  • Electrical power max.: 21.3 kW
  • Current consumption: 40.3 Amps
Key Information:
  • Configuration: On Oven;One-Side Operated
  • Front Plates Power: 4 - 4 kW
  • Back Plates Power: 4 - 4 kW
  • Solid top usable surface (width): 820 mm
  • Solid top usable surface (depth): 720 mm
  • External dimensions, Width: 1000 mm
  • External dimensions, Height: 700 mm
  • External dimensions, Depth: 900 mm
  • Storage Cavity Dimensions (width):
  • Storage Cavity Dimensions (height):
  • Storage Cavity Dimensions (depth): 0 mm
  • Net weight: 258 kg

The Electrolux thermaline 90 - Electric Free-cooking Top on Oven with Backsplash H=700 PNC 589662 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 405 7580.
