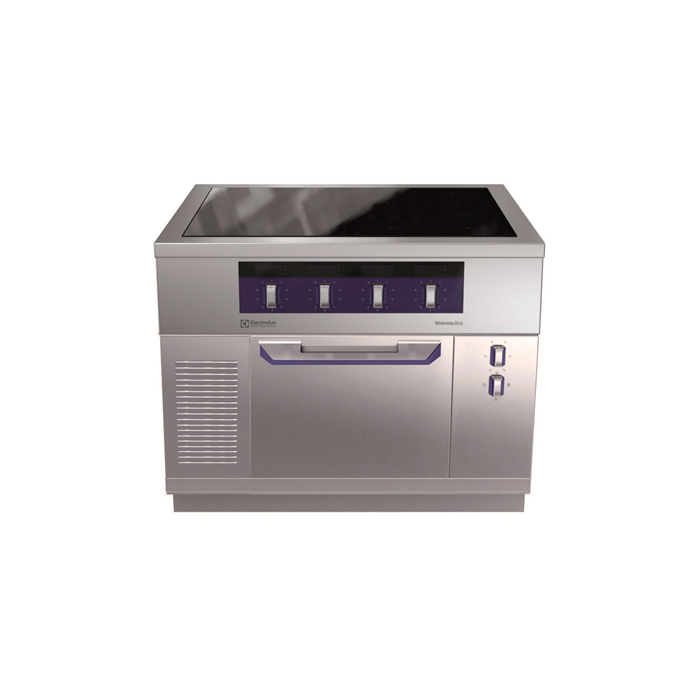

Electrolux thermaline 80 - 4 Zone Induction Top on Oven, 2 Sides H=800 PNC 588432

Main Features

  • Almost the entire surface of the ceramic plate can be used without dead spots.

  • Fast deployment with full heating power immediately.

  • Low heat dissipation to the kitchen.

  • Overheat protection: a temperature sensor switches off the supply in case of overheating.

  • Pans can easily be moved from one area to another without lifting.

  • The smooth glass-ceramic surface can be quickly and easily cleaned, thus providing maximum hygiene.

  • IPX5 water resistance certification.

  • 40 mm thick oven door for heat insulation.

  • All major components may be easily accessed from the front.

  • THERMODUL connection system creates a seamless work top when units are connected to each other thus avoiding soil penetrating vital components and facilitating the removal of units in case of replacement or service.

  • Metal knobs with embedded hygienic silicon "soft" grip for easier handling and cleaning. The special design of the controls prevent infiltration of liquids or soil into vital components.

  • Large visible digital display manufactured in tempered glass to resist heat and chemicals, showing temperatures or power settings. The display also shows on/off status of the appliance and on/off status of the heating elements.

  • Standby function for energy saving and fast recovery of maximum power.

  • 9 power levels.

  • Handles are ergonomically designed with silicon "soft" grip for easy handling and cleaning.

  • Oven chamber to have 2 levels of runners to accommodate 2/1 GN trays and ribbed enamelled steel base plate.

  • Heavy duty thermostat with temperature range up to 300C.

  • The upper heating element of the oven can also be used for grilling.

  • Manual control of humidity in cooking chamber.

  • Electronic sensor for precise temperature control.

  • Unit constructed according to DIN 18860_2 with 70 mm recessed plinth.

  • Oven temperature up to 300 C

  • Control light for each zone.

  • 2 mm top in 1.4301 (AISI 304).

  • Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth.

  • Flat surface construction with minimal hidden areas to easily clean all surfaces

  • Unit constructed according to DIN 18860_2 with 20 mm drop nose top.

  • Internal frame for heavy duty sturdiness in stainless steel.


Induction Top, 4 zones, two-side operated, on Oven

Description / Electrolux thermaline 80 - 4 Zone Induction Top on Oven, 2 Sides H=800 PNC 588432

The Electrolux thermaline 80 - 4 Zone Induction Top on Oven, 2 Sides H=800 PNC 588432 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 400 V/3N ph/50/60 Hz
  • Current consumption: 39.7 Amps
  • Total Watts: 25 kW
Key Information:
  • Configuration: On Oven;Both-Sides Operated
  • Front Plates Power: 5 - 5 kW
  • Back Plates Power: 5 - 5 kW
  • Front Plates dimensions: 320x330 320x330
  • Back Plates dimensions: 320x330 320x330
  • Induction Top Dimensions (width): 800 mm
  • Induction Top Dimensions (depth): 800 mm
  • External dimensions, Width: 800 mm
  • External dimensions, Height: 800 mm
  • External dimensions, Depth: 800 mm
  • Net weight: 125 kg

The Electrolux thermaline 80 - 4 Zone Induction Top on Oven, 2 Sides H=800 PNC 588432 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 405 7580.
