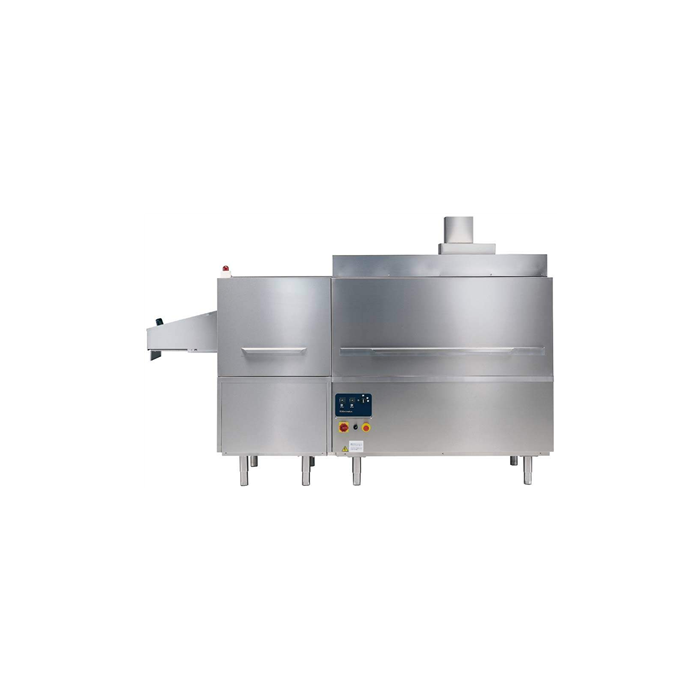

Electrolux Steam Traywasher with Condensing Unit, Drying Zone - Right to Left, 1200t/h PNC 511062

In stock
SKU
511062

Main Features

  • Electric or steam heated and in left or right feeding versions.

  • Power wash zone where all the soil is removed.

  • Final rinse where the clean water is reused to eliminate any trace of detergent.

  • Simple service from the front.

  • Drying zone for fast and efficient drying.

  • Deep strainer boxes covers the entire width of the machine.

  • Automatic start/stop function to switch off the machine when not in use.

  • Simple control panel.

  • Built-in boiler to increase the temperature of the final rinse water.

  • Built-in condensing unit allows to use the steam generated from the machine to heat-up the incoming cold water, decreasing the temperature and humidity of the hot steam outlet as well as reducing water, energy and detergent consumption.

  • Variable speed control from 7-14 m/min which give a 600 to 1200 trays/h washing capacity.

  • Wash and rinse arms can be easily removed for cleaning.

  • Exterior finish in AISI 304 stainless steel for easy cleaning.

  • Only one cable for electrical connection.

  • Automatic loading of trays from an Electrolux tray conveyor.

  • Automatic unloading to lowerator.

  • All models in range are finished in top quality materials to aid durability.

  • Automatic controlled dishwashing.

  • Lowerator station for two lowerators (option).

  • Large counter balanced doors for easy access to washing and drying zones.

  • Large counter balanced and double skinned doors with safety device and easy to grip handle for easy access to washing and drying zones.

  • Wash tank in 316 AISI acid proof stainless steel with rounded corners and sloping base to facilitate cleaning.

  • Features a tray buffer containing up to 10 trays and as an option, the trays can also be unloaded in an unloading station made of two lowerators used alternatively.


Tray washer with condensing Unit, autostart/sTop and drying zone, steam r>l, 1200 trays/h

The Electrolux Steam Traywasher with Condensing Unit, Drying Zone - Right to Left, 1200t/h PNC 511062 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Key Information:
  • Air emission: 500m/h
  • 1st wash tank capacity: 114 liters
  • 1st wash pump power: 3.0 kW
  • Rinsing temperature: 80-90 C
  • Rinsing boiler capacity: 16 liters
  • 1st wash temperature:
  • External dimensions, Width: 2980 mm
  • External dimensions, Height: 1914 mm
  • External dimensions, Depth: 824 mm
  • Height with door open: 2050 mm
  • Net weight: 520 kg
  • Speed min/max: 14 m/max - 7 m/min
Capacity:
  • N of speeds: 2
Steam
  • Steam consumption peak: 34 kg/h
Electric
  • Total Watts: 6.4 kW
Water:
  • Water supply - operation: 10-15 C
  • Water supply (temp hot/cold): 50 C
  • Rinsing water consumption (per cycle): 300 lt

The Electrolux Steam Traywasher with Condensing Unit, Drying Zone - Right to Left, 1200t/h PNC 511062 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
