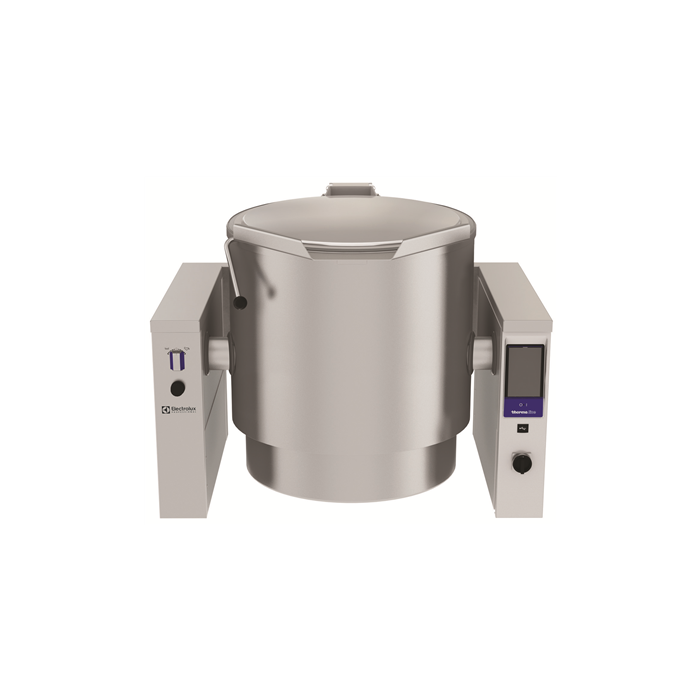

Electrolux Steam Tilting Boiling Pan, 500lt Freestanding, Electronic PNC 586080

£63,511.20 £52,926.00
In stock
SKU
586080

Main Features

  • Kettle is suitable to boil, steam, poach, braise or simmer all kinds of produce.

  • Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory contact the Company for more details).

  • Produce is uniformly heated in the vessel by an indirect heating system using saturated steam.

  • Kettle is jacketed up to 134 mm from upper rim.

  • Isolated upper well rim avoids risk of harm for the user.

  • Max pressure of inner jacket at 1,5 bar; minimum working pressure at 0.5 bar.

  • IPX6 water resistant.

  • Ergonomic vessel dimensions, with a large diameter and shallow depth facilitates stirring and gentle food handling.

  • Edge of the large pouring lip can be equipped with a strainer (option).

  • Built in temperature sensor to precisely control the cooking process.

  • Motorized, variable pan tilting with "SOFT STOP". Tilting and pouring speeds can be precisely adjusted. Pan can be tilted over 90 to facilitate pouring and cleaning operations.

  • USB connection to easily update the software, upload recipes and download HACCP data.

  • Cooking vessel in 1.4435 (AISI 316L) stainless steel featuring directional pouring lip. Double-jacket in 1.4404 (AISI 316L) stainless steel designed to operate at a pressure of 1.5 bar.

  • External panelling and internal frame made of 1.4301 (AISI 304) stainless steel.

  • Double-lined insulated lid in 1.4301 (AISI 304) stainless steel mounted on the cross beam of the unit, counterbalanced by a hinge that remains open in all positions.

  • Safety valve avoids overpressure of the steam in the double jacket.

  • External steam feeding; 1,5 bars working pressure.

  • Safety thermostat protects against low water level in the double jacket.

  • Water mixing tap is available as optional accessory to make water filling and pan cleaning easier.

  • Ergonomic and user friendly thanks to the high tilting position and the pouring lip design which allow to easily fill containers.

  • Front-mounted inclined led TOUCH control panel with recessed deep drawn casing, features self-explanatory display functions which guide operator throughout the cooking process: simultaneous display of actual and set temperature as well as set cooking time and remaining cooking time; real time clock; SOFT control for gentle heating up for delicate food; 9 power simmering levels from gentle to heavy boiling; timer for deferred start; error display for quick trouble-shooting.

  • Possibility to store recipes in single or multiphase cooking process, with different temperature settings.

  • Minimised presence of narrow gaps for easier cleaning of the sides to meet the highest hygiene standards.

  • Can be prearranged for energy optimisation or external surveillance systems (optional).

  • 98% recyclable by weight; packaging material free of toxic substances.


Steam tilting Boiling Pan with electronic steam control 500lt (s), freestanding

The Electrolux Steam Tilting Boiling Pan, 500lt Freestanding, Electronic PNC 586080 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 230 V/1N ph/50/60 Hz
  • Total Watts: 0.2 kW
Water:
  • Pressure, bar min/max: 2-6 bar
Installation:
  • Type of installation: FS on concrete base;FS on feet;On base;Standing against wall
Steam
  • Steam generation: External source
  • Steam inlet size: 1"
  • Steam consumption: 150 kg/hr
  • Steam pressure Max: 1.5 bar
  • Steam supply, relative dynamic pressure: 1 min bar, 1.5 max bar
Key Information:
  • Configuration: Round;Tilting
  • Working Temperature MIN: 50 C
  • Working Temperature MAX: 110 C
  • Vessel (round) diameter: 900 mm
  • Vessel (round) depth: 880 mm
  • External dimensions, Width: 1500 mm
  • External dimensions, Height: 800 mm
  • External dimensions, Depth: 1000 mm
  • Net weight: 520 kg
  • Net vessel useful capacity: 500 lt
  • Tilting mechanism: Automatic
  • Double jacketed lid: ?
  • Heating type: Indirect

The Electrolux Steam Tilting Boiling Pan, 500lt Freestanding, Electronic PNC 586080 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
