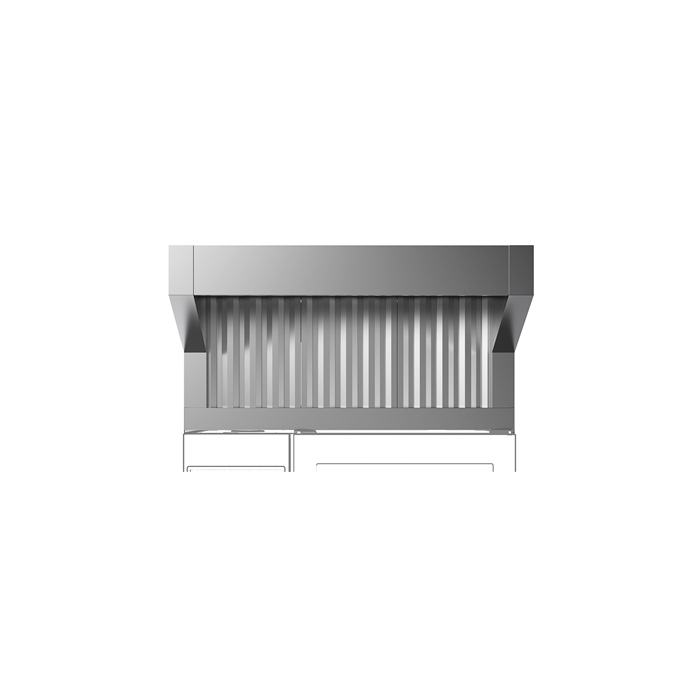

Electrolux Standard hood (with fan motor) for 20 GN 1/1 lengthwise combi ovens PNC 922730

£3,360.00 £2,800.00
In stock
SKU
922730

Main Features

  • Requires connection to an external exhaust air duct.

  • Fan motor with 3 automatic speeds:
    - Low speed when door is closed and valve is closed;
    - Medium speed when door is closed and valve is open;
    - High speed when door is open.

  • Frontal labyrinth and condensation filters are easy to remove and cleanable in a dishwasher.

  • The cable connection between the hood and the oven makes possible the communication between them. Connection of the hood to the oven's software automatically activates fan power and odour absorption based on real oven activity.

  • The hood and the oven are synchronized: the hood switches On/Off when the oven starts/stops; based on real oven activity the hood automatically activates Hi/Medium/Low fan power for odour absorption.

  • System guarantees correct suction as well as high energy saving.

  • Filtering surface protects against fire hazard.

  • Can be used with 20 GN 1/1 LW combi ovens.

  • Must be installed in a space where normal aeration, according to regulations, is present.

  • Constructed entirely in 304 AISI stainless steel.

  • Prefiltering of exhaust steam through stainless steel labyrinth filters.

  • Automatic door opening activation system.

  • Developed and produced in ISO 9001, ISO 14001 and ISO 50001 certified factory.


Exhaust hood with fan for 20 GN 1/1 oven

The Electrolux Standard hood (with fan motor) for 20 GN 1/1 lenghtwise combi ovens PNC 922730 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 230 V/1 ph/50 Hz
  • Default Installed Power: 0.47 kW
Air Emission:
  • Air capacity: 1200-1500 m3/h
Key Information:
  • External dimensions, Width: 917 mm
  • External dimensions, Height: 450 mm
  • External dimensions, Depth: 1085 mm
  • Net weight: 52 kg
  • Shipping weight: 52 kg

The Electrolux Standard hood (with fan motor) for 20 GN 1/1 lenghtwise combi ovens PNC 922730 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
