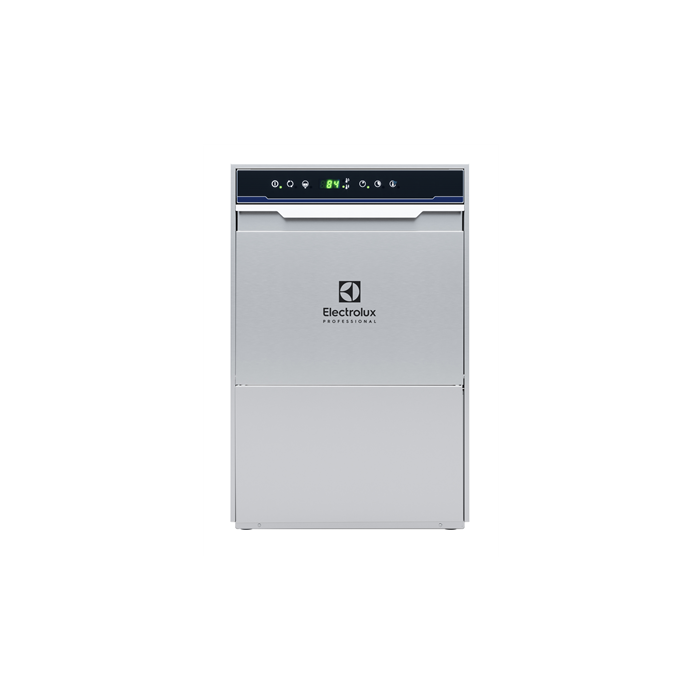

Electrolux Small Double Skin Glasswasher, electronic, cold rinse, drain pump & rinse aid dispenser,30 racks/hour-no plug PNC 402222

£2,601.60 £2,168.00
In stock
SKU
402222

Main Features

  • Incorporated Soft Start feature to offer additional protection to more delicate items.

  • Built-in rinse aid dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.

  • Low noise level.

  • Equipped with drain pump for easy and quick installation without opening the machine.

  • Extra program to cold rinse beer and wine glasses providing sanitized glasses, cool enough to handle.

  • Built-in pressure boiler designed to raise incoming water to a guaranteed minimum temperature of 82C for sanitizing rinse. No external boiler is required.

  • Maximum capacity of 30 racks per hour.

  • Washing system endowed with rotating washing arms from both top and bottom, high powered wash pump and large capacity wash tank guarantee professional washing.

  • Easy service access to main components without moving the unit.

  • New electronic control panel for easy setup of the working parameters and self diagnosis.

  • 120/300/120 seconds cycle, the third cycle includes cold rinse.

  • Optional rinse booster pump available to be installed on site.

  • Completely closed on the back by a cover plate.

  • Unit to feature rinse aid dispenser pump.

  • Wash/rinse arms and nozzles in stainless steel.

  • Finished in top quality stainless steel with double skinned construction to aid durability and reduce noise.

  • Internal components (arms and filter) are easy extractable.

  • Large tank filter collects the soil to keep the wash water clean for a longer time and have better washing performance.

  • Insulated double skin door construction preserves heat inside the tank to lower energy consumption and the noise. Counter-balance mechanism minimizes impact when opening and closing.

  • Deep drawn pressed wash tank with fully rounded corners, sloped towards the drain to prevent dirt buildup, provides fast drainage in just a few minutes. With no welding points the pressed tank offers a guaranteed water tight solution.

  • 304 AISI stainless steel front panel, load bearing frame, wash tank, tank filter, wash and rinse arms.


Glasswasher (small), with double skin, electronic control, cold rinse, built-in drain pump and rinse aid dispenser, 3 cycles, 30b/h - no plug (400V/3N)

The Electrolux Small Double Skin GW, electronic, cold rinse, drain pump & rinse aid dispenser,30b/h-no plug PNC 402222 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 400 V/3N ph/50 Hz
  • Default Installed Power: 4.8 kW
  • Boiler heating elements: 4,5 kW
  • Tank heating elements: 0,8 kW
  • Wash pump size: 0.3 kW
Key Information:
  • Baskets per hour*: 30
  • Working cycles time (sec.): 120/300/120
  • Wash temperature: 55-65C
  • Cell dimensions - width: 400 mm
  • Cell dimensions - depth: 400 mm
  • Cell dimensions - height: 290 mm
  • Rinse temperature: 80-90 C
  • External dimensions, Width: 460 mm
  • External dimensions, Height: 715 mm
  • External dimensions, Depth: 565 mm
  • Net weight: 37 kg
  • Shipping weight: 42 kg
  • Shipping height: 900 mm
  • Shipping width: 620 mm
  • Shipping depth: 520 mm
  • Shipping volume: 0.29 m
  • Noise level: 69 dBA
Water:
  • Pressure, bar min/max: 1.8-3 bar
  • Water supply temperature*: 10-55 C
  • Drain line size: 27mm
  • Washing tank capacity (lt): 6
  • Water consumption per cycle (lt): 2.3
  • Boiler Capacity (lt): 5
  • Incoming water line size: G 3/4"

The Electrolux Small Double Skin GW, electronic, cold rinse, drain pump & rinse aid dispenser,30b/h-no plug PNC 402222 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
