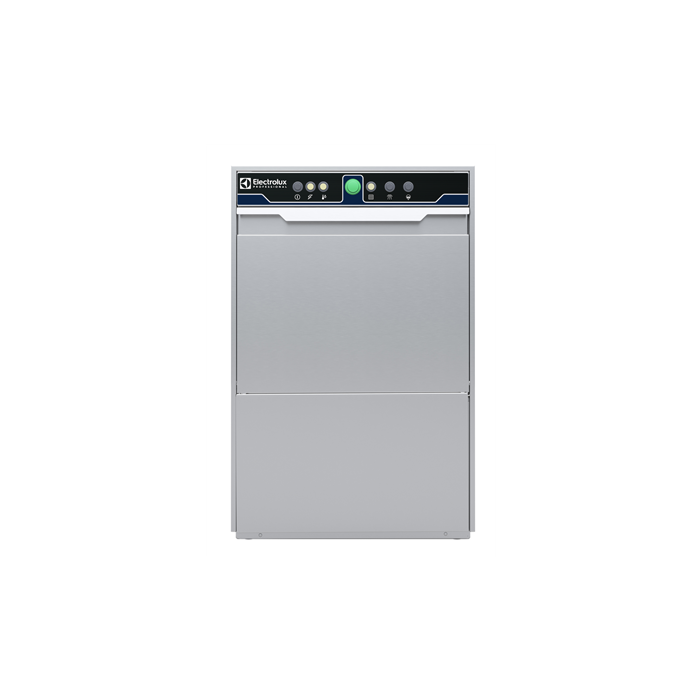

Electrolux Small Double Skin Glasswasher, 1 cycle, drain pump, detergent and rinse aid dispensers, 30 racks/hour - UK PNC 402203

Electrolux

£1,839.60 £1,533.00

In stock

SKU

402203

Main Features

Built-in rinse aid and detergent dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.
Deep drawn pressed wash tank with fully rounded corners, sloped towards the drain to prevent dirt build up provides fast drainage in only a few minutes. Pressed wash tank with no welded points offer a guaranteed water tight solution.
Low noise level.
Equipped with drain pump for easy and quick installation without opening the machine.
120 seconds cycle.
Built-in pressure boiler designed to raise incoming water to a guaranteed minimum temperature of 82C for sanitizing rinse. No external boiler is required.
Equipped with single phase electrical cable and UK plug for easy and fast installation.
Maximum capacity of 30 racks per hour.
Simple operation control panel.
Washing system endowed with rotating washing arms from both top and bottom, high powered wash pump and large capacity wash tank guarantee professional washing.
Easy service access to main components without moving the unit.
Optional rinse booster pump available to be installed on site.
Completely closed on the back by a cover plate.
Unit to feature rinse aid and detergent dispenser pumps.
Wash/rinse arms and nozzles in stainless steel.
304 AISI stainless steel front panel, load bearing frame, wash tank, wash and rinse arms.
Finished in top quality stainless steel with double skinned construction to aid durability and reduce noise.
Internal components (arms and filter) are easy extractable.
Insulated double skin door construction preserves heat inside the tank to lower energy consumption and the noise. Counter-balance mechanism minimizes impact when opening and closing.

Glasswasher (small), with double skin, built-in drain pump, detergent and rinse aid dispensers, 1 cycle, 30b/h - UK

Details

The Electrolux Small Double Skin Glasswasher, 1 cycle, drain pump, detergent and rinse aid dispensers, 30b/h - UK PNC 402203 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric

Supply voltage: 230 V/1 ph/50 Hz
Default Installed Power: 2.3 kW
Boiler heating elements: 2 kW
Tank heating elements: 0,8 kW
Wash pump size: 0.3 kW

Key Information:

Baskets per hour*: 30
Working cycles time (sec.): 120
Wash temperature: 55-65C
Cell dimensions - width: 400 mm
Cell dimensions - depth: 400 mm
Cell dimensions - height: 290 mm
Rinse temperature: 80-90 C
External dimensions, Width: 460 mm
External dimensions, Height: 715 mm
External dimensions, Depth: 565 mm
Net weight: 37 kg
Shipping weight: 40 kg
Shipping height: 880 mm
Shipping width: 650 mm
Shipping depth: 530 mm
Shipping volume: 0.3 m
Noise level: 67.5 dBA

Water:

Pressure, bar min/max: 1.8-3 bar
Water supply temperature*: 10 C
Drain line size: 27mm
Washing tank capacity (lt): 6
Water consumption per cycle (lt): 2.3
Boiler Capacity (lt): 5
Incoming water line size: G 3/4"

The Electrolux Small Double Skin Glasswasher, 1 cycle, drain pump, detergent and rinse aid dispensers, 30b/h - UK PNC 402203 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
