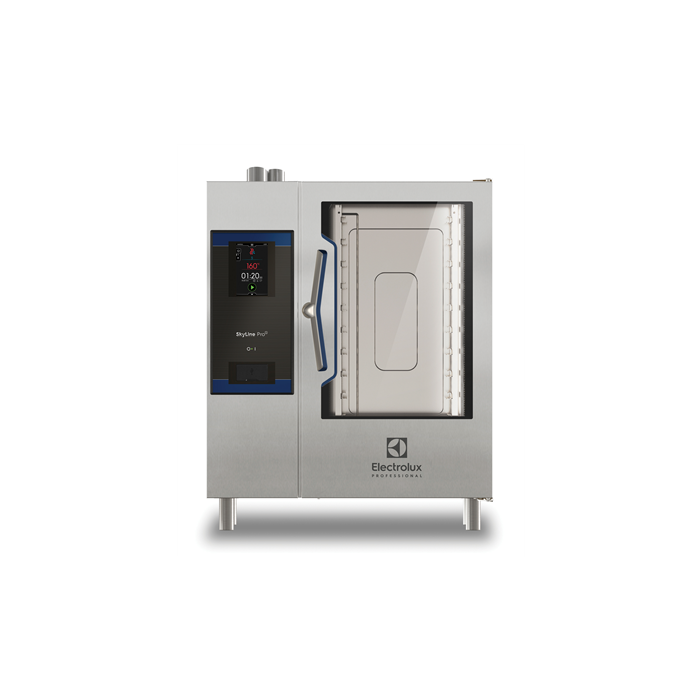

Electrolux SkyLine Electric Combination Oven 10GN1/1 PNC 217602

£8,389.20 £6,991.00
In stock
SKU
217602

Main Features

  • 6-point multi sensor core temperature probe for maximum precision and food safety.

  • Capacity: 10 GN 1/1 trays.

  • Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory contact the Company for more details).

  • High resolution full touch screen interface (translated in more than 30 languages) - color-blind friendly panel.

  • Boilerless steaming function to add and retain moisture for high quality, consistent cooking results.

  • Dry hot convection cycle (max 300 C) ideal for low humidity cooking. Automatic moistener (11 settings) for boiler-less steam generation.

  • EcoDelta cooking: cooking with food probe maintaining preset temperature difference between the core of the food and the cooking chamber.

  • Programs mode: a maximum of 1000 recipes can be stored in the oven's memory, to recreate the exact same recipe at any time. The recipes can be group in 16 different categories to better organize the menu. 16-step cooking programs also available.

  • MultiTimer function to manage up to 20 different cooking cycles at the same time, improving flexibility and ensuring excellent cooking results. Can be saved up to 200 MultiTimer programs.

  • OptiFlow air distribution system to achieve maximum performance in cooking eveness and temperature control thanks to a special design of the cooking chamber combined with high precision variable speed fan and venting valve.

  • Fan with 7 speed levels from 300 to 1500 RPM and reverse rotation for optimal evenness. Fan stops in less than 5 seconds when door is opened.

  • Pictures upload for full customization of cooking cycles.

  • Automatic fast cool down and pre-heat function.

  • Reduced power function for customized slow cooking cycles.

  • SkyClean: Automatic and built-in self cleaning system. 5 automatic cycles (soft, medium, strong, extra strong, rinse-only) and green functions to save energy, water, detergent and rinse aid. Also programmable with delayed start.

  • 3 different chemical options available: solid (phosphate-free), liquid (requires optional accessory), enzymatic.

  • Plan-n-Save function organizes the cooking sequence of the chosen cycles optimizing the work in the kitchen from a time and energy efficiency point of view.

  • Make-it-mine feature to allow full personalization or locking of the user interface.

  • SkyHub lets the user group the favorite functions in the homepage for immediate access.

  • MyPlanner works as an agenda where the user can plan the daily work and receive personalized alerts for each task.

  • GreaseOut: predisposed for integrated grease drain and collection for safer operation (dedicated base as optional accessory).

  • USB port to download HACCP data, share cooking programs and configurations.
    USB port also allows to plug-in sous-vide probe (optional accessory).

  • Connectivity ready for real time access to connected appliances from remote and HACCP monitoring (requires optional accessory).

  • Trainings and guidances supporting materials easily accessible by scanning QR-Code with any mobile device.

  • Back-up mode with self-diagnosis is automatically activated if a failure occurs to avoid downtime.

  • Automatic consumption visualization at the end of the cycle.

  • Human centered design with 4-star certification for ergonomics and usability.

  • Wing-shaped handle with ergonomic design and hands-free opening with the elbow, making managing trays simpler (Registered Design at EPO).

  • Double thermo-glazed door with open frame construction, for cool outside door panel. Swing hinged easy-release inner glass on door for easy cleaning.

  • Seamless hygienic internal chamber with all rounded corners for easy cleaning.

  • 304 AISI stainless steel construction throughout.

  • Front access to control board for easy service.

  • IPX 5 spray water protection certification for easy cleaning.

  • Supplied with n.1 tray rack 1/1 GN, 67 mm pitch.


SkyLine ProS Combi Boilerless Oven with touch screen control, 10x1/1GN, electric, 2 cooking modes (recipe program, manual), automatic cleaning, pitch 67mm

The Electrolux Electric Combi Oven 10GN1/1 PNC 217602 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 380-415 V/3N ph/50-60 Hz
  • Electrical power, default: 19 kW
  • Default power corresponds to factory test conditions.
    When supply voltage is declared as a range the test is performed at the average value. According to the country, the installed power may vary within the range.
  • Electrical power max.: 20.3 kW
  • Circuit breaker required
Installation:
  • Clearance: Clearance: 5 cm rear and right hand sides.
  • Suggested clearance for service access: 50 cm left hand side.
Key Information:
  • Door hinges:
  • External dimensions, Width: 867 mm
  • External dimensions, Height: 1058 mm
  • External dimensions, Depth: 775 mm
  • Weight: 134.3 kg
  • Net weight: 134.3 kg
  • Shipping weight: 159.3 kg
  • Shipping volume: 1.04 m
Water:
  • Water inlet connections "CWI1-CWI2": 3/4"
  • Pressure, bar min/max: 1-6 bar
  • Drain "D": 50mm
  • Max inlet water supply temperature: 30 C
  • Hardness: 5 fH / 2.8 dH
  • Chlorides: <10 ppm
  • Conductivity: >285 S/cm
Capacity:
  • Trays type: 10 - 1/1 Gastronorm
  • Max load capacity: 50 kg

The Electrolux Electric Combi Oven 10GN1/1 PNC 217602 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.
