Electrolux Dishwasher Side Loading Table. Driven by Dishwasher. 1500mm PNC 863135

£1,856.40 £1,547.00
In stock
SKU
863135

Main Features

  • Designed to transport 500x500 mm dishwashing baskets.

  • Conveyors supplied as knockdown and easy to assemble.

  • "Key holes" and "snap on" system reduces the number of screws needed for fast and easy installation.

  • Side loader is driven by the dishwasher.

  • Side loader intended for installation between a dishwasher and a roller conveyor or a manual sorting table.

  • Racks automatically fed into the dishwasher, when they are forwarded from the conveyor.

  • The table can be used in loading side.

  • For multi rinse rack type dishwasher has 300mm splash hood at the entrance, the minimum length of the side loader to be connected with the dishwasher should be 800mm.

  • The side loader is available from 700mm up to 1500mm with 100mm-step length.

  • All surfaces smooth with polished finish.

  • Thick welded flanges for sturdy connection between the units.

  • AISI 304 1,2mm stainless steel basin.

  • 40x40mm stainless steel tubular and square legs.

  • Sloping bottom of the table leads the water draining back to the connected dishwasher up to 900mm length (only for 865243, 865451 & 863129). For side loader from 1000mm length, the slope bottom of the table grants a smooth and rapid drainage at the center of the table.

  • Three legs included.

  • Stainless steel feet 50 mm adjustable in height to align the operation height between the dishwasher and table.

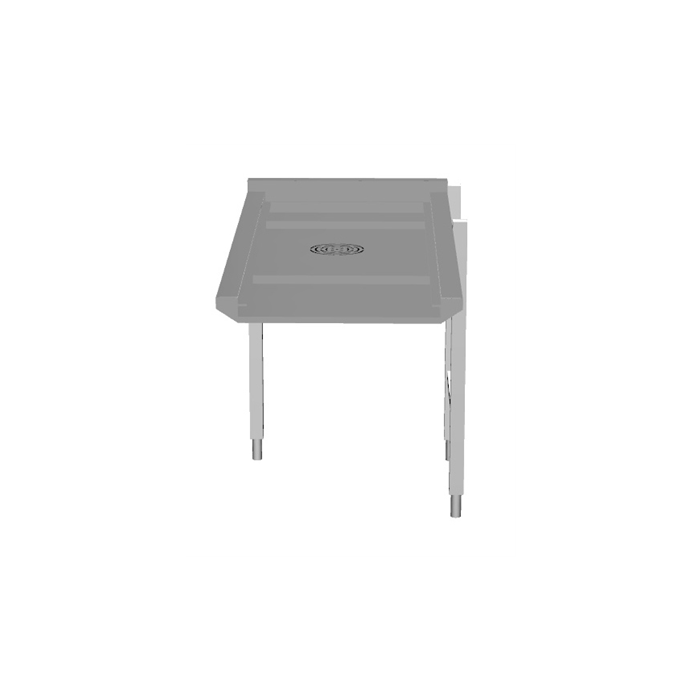

Side loader, Dishwasher driven, 1500 mm

The Electrolux Side loader PNC 863135 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Key Information:
  • External dimensions, Width: 1500 mm
  • External dimensions, Height: 922 mm
  • External dimensions, Depth: 623 mm
  • Net weight: 22 kg
  • Height adjustment: 50/50 mm
  • Basin material:
  • Type of rollers:

The Electrolux Side loader PNC 863135 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
