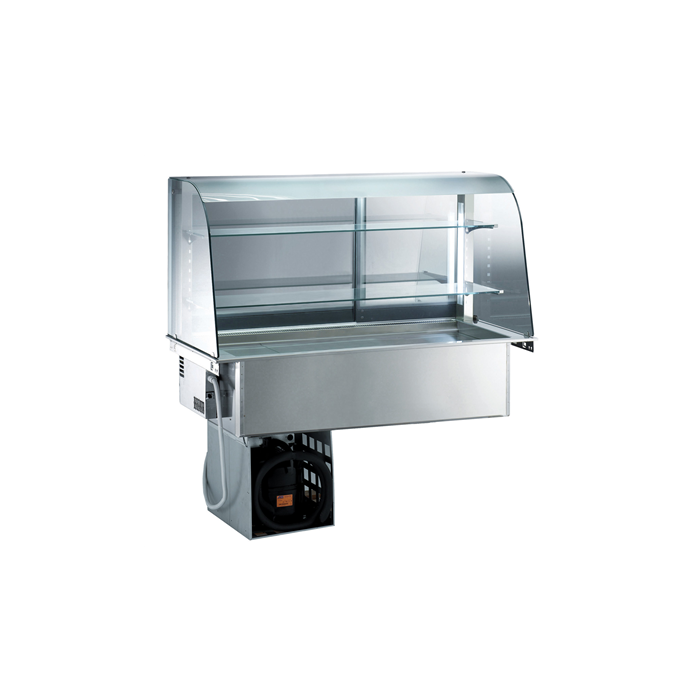

Electrolux Refrigerated Well with Open Display 4GN 1/1 PNC 340272

Electrolux

In stock

SKU

340272

Main Features

Digital control panel with.
Digital thermostat On-off switch Adjustable temperature setting Temperature display Manual defrost switch Light switch
Ensures that food maintains an average core temperature that does not exceed +8 C for 1 hour.
Waterproof well with adjustable bottom that can be set to 5 positions for each GN 1/1 section, independently one from the other.
Well is fully insulated with 25 mm neoprene.
Cut-out dimensions for the installation of the unit is 1500x 680 x minimum 850 H mm.
Air outlet grid can be positioned on three different sides (customer, operator or machine side), to allow maximum installation flexibility.
Display with aluminum gantry, completely open on customer's side to provide easy access.
Display side walls formed by 10 mm thick tempered glass with 2 double-glazed sliding doors (6+4 mm-thick with 6 mm air-cushion in between) to prevent external condensation.
8 mm thick tempered glass shelves are tiltable, adjustable and removable.
4 mm top curved tempered glass.
Lighting provided by 3 neon lamps, one horizontal above the shelves and the other two placed on each side of the display, running vertically.
Bottom panels and ventilation front grids can be easily removed.
Bottom part of well is removable for an easier access to the evaporator.
Built-in refrigeration unit with ventilated operating mode.
Temperature range of +2/+8 C (at 25 C ambient temperature) with 50% humidity level.
Automatic defrost.
Internal fans are IP55 protected.
Complies with main international certification bodies and is CE marked.
Suitable for GN 1/1 containers with a maximum height of 150 mm.
Inlet ventilation grids are on operator side.
Refrigerant type: R134a.
Manufactured in 304 AISI stainless steel.
Easy to install thanks to the fastom connection (1.5 m long) between the cable and the digital thermostat.
Developed and produced in ISO 9001 and ISO 14001 certified factory.

Drop-in Refrigerated Well with open display - 4GN

Details

The Electrolux Refrigerated Well with Open Display 4GN 1/1 PNC 340272 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric

Supply voltage: 230 V/1 ph/50 Hz
Electrical power max.: 1.31 kW

Key Information:

External dimensions, Width: 1520 mm
External dimensions, Height: 1565 mm
External dimensions, Depth: 700 mm
Net weight: 90 kg
Set temperature: 2/8 C
Well number: 1
Well width: 1305 mm
Well depth: 510 mm
Well height: 195 mm
Well capacity - plates: 24x 150 mm; 12x 200 mm
Well capacity - 65 mm cans: 180
Display capacity - plates: 27x 150 mm; 14x 200 mm
Display capacity - 130x90 mm plates: 60
Display capacity - 65 mm cans: 189

Water:

Water drain outlet size: 1/2"

The Electrolux Refrigerated Well with Open Display 4GN 1/1 PNC 340272 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
