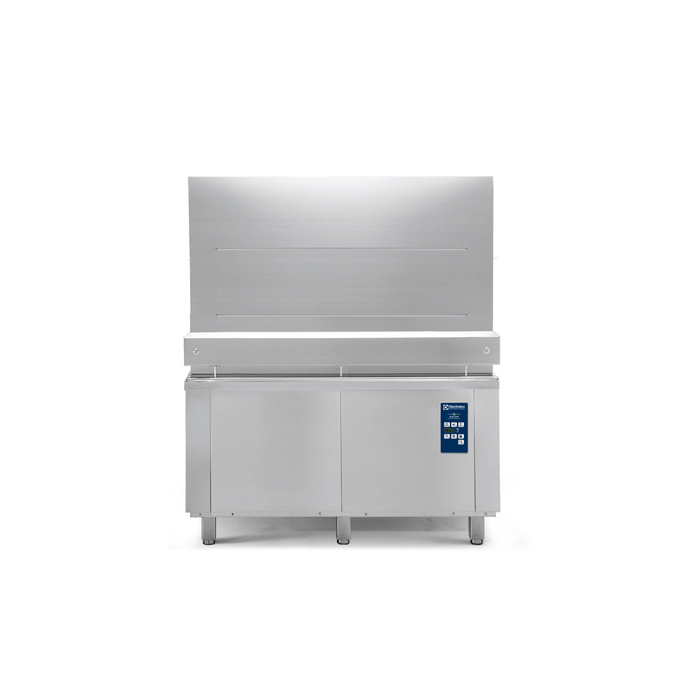

Electrolux Pot&Pan Washer with Automatic Hood and Front/Side Feeding, Multi-Rack Support 1433mm PNC 506066

Electrolux

£22,077.60 £18,398.00

In stock

SKU

506066

Main Features

Atmospheric insulated boiler combined with the rinse booster pump for perfect rinsing results (water temperature and pressure always constant during rinsing cycles), independent from the inlet water pressure.
4 washing programs (one program is continual).
Low noise level.
Simple service from the front.
Automatic start on hood closure.
Easy to remove wash/rinse arms for cleaning.
Direct through-feed using loading or unloading tables or front-feed loading.
Large strainer boxes above the water surface and extra strainer in the tank bottom at the pump inlet.
Self-cleaning cycle to automatically sanitize the dishwasher after use.
Automatic hood opening and closing through safety switch.
Final rinse only starts when the correct temperature has been reached (waiting device).
Pre-arrangements for automatic detergent and rinse-aid dispenser.
Electronic control panel and digital display.
Adjustable pressure for the lower wash system, according to the weight of the items being washed.
Automatic boiler empty button.
Double rack support suitable to use also standard rack of 500x500mm.
Unit to feature smooth surfaces to facilitate cleaning.
No pipes inside the washing chamber.
304 AISI stainless steel front and side panels, wash tank, tank filter and wash and rinse arms.
Finished in top quality materials to ensure durability.
Double-walled construction reduces the levels of noise and heat emitted.

Pot&Pan Washer, automatic hood, front/side feeding with multi-rack support

Details

The Electrolux Pot&Pan Washer with Automatic Hood and Front/Side Feeding, Multi-Rack Support 1433mm PNC 506066 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric

Supply voltage: 400 V/3N ph/50 Hz
Default Installed Power: 15.5 kW
Electrical power max.: 26 kW
Total Installed Power: 26 kW
Boiler heating elements:
Wash pump power: 5 kW
Rinse pump power: 0.28 kW

Key Information:

Washing cycle temperature: 55-65 C
Hot rinse cycle temperature: 84 C
Working cycles time (sec.): 180/360/540/inf
N of working cycles: 4 (180/360/540/inf)
Cell dimensions - width: 730 mm
Cell dimensions - depth: 660 mm
Cell dimensions - height: 625 mm
External dimensions, Width: 1433 mm
External dimensions, Height: 1760 mm
External dimensions, Depth: 890 mm
Net weight: 270 kg
Noise level: <70 dBA

Water:

Pressure, bar min/max: 0.5-7 bar
Water supply temperature*: 50 C
Washing tank capacity (lt): 110
Boiler Capacity (lt): 18
Washing cycle electrical elements: 10.5 kW
Hot rinse cycle duration (sec.): 20
Min hot rinse water consumption (lt/cycle)**: 7.7
Rinsing water consumption (per cycle): 7.7 lt

The Electrolux Pot&Pan Washer with Automatic Hood and Front/Side Feeding, Multi-Rack Support 1433mm PNC 506066 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
