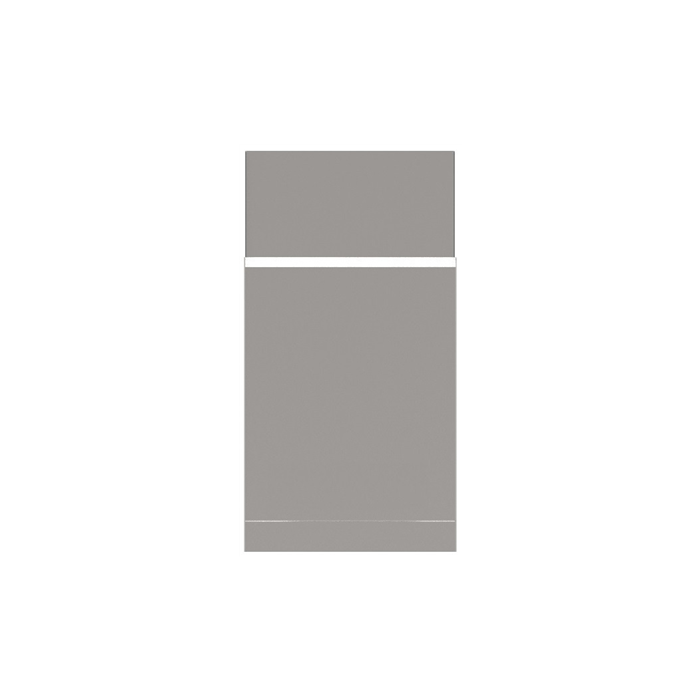

Electrolux Medium hot air blower zone without door for single rinse Rack Type dishwasher PNC 534059

Electrolux

£3,810.00 £3,175.00

In stock

SKU

534059

Main Features

Electronically controlled to optimize drying results.
Drying zone removes most of water from the crockery through a high powered fan that extracts dry air from outside mixing it with the internal air, thus providing dry plates at a temperature cool enough to handle safely.
IP25 protection against water jets, solid objects and small animals (larger than 6 mm).
The feeding direction can be either left to right or right to left as it's reversible on site.
All main components made in heavy duty anti-corrosive 304 type stainless steel: internal chamber, external, front and side panels and rack transportation system.
Unit to be placed between single rinse rack type dishwasher and handling system.
The chamber is pressed with fully rounded corners without internal pipes and therefore no hidden dirt traps.
The unit is built on modularity concept to easily connect with single-rinse rack type dishwasher without any modification including power connection.

Medium hot air blower zone without door for single rinse Rack Type dishwasher, 50Hz & 60Hz

Details

The Electrolux Medium hot air blower zone without door for single rinse Rack Type dishwasher PNC 534059 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric

Supply voltage: 380-415 V/3N ph/50/60 Hz
Default Installed Power: 4.4 kW
Dryer heating elements: 4.13 kW
Drying fan power: 0.23 kW

Key Information:

Dryer air flow: 540 m/h
Dryer air temperature: 70 C
External dimensions, Width: 560 mm
External dimensions, Height: 1130 mm
External dimensions, Depth: 795 mm
Charging hole size (width): 530 mm
Charging hole size (height): 490 mm
Shipping height: 1310 mm
Shipping width: 920 mm
Shipping depth: 610 mm
Shipping volume: 0.74 m
Noise level: <62 dBA
Reference norm used to measure the noise: IEC60335-2-58 annex AA.

The Electrolux Medium hot air blower zone without door for single rinse Rack Type dishwasher PNC 534059 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
