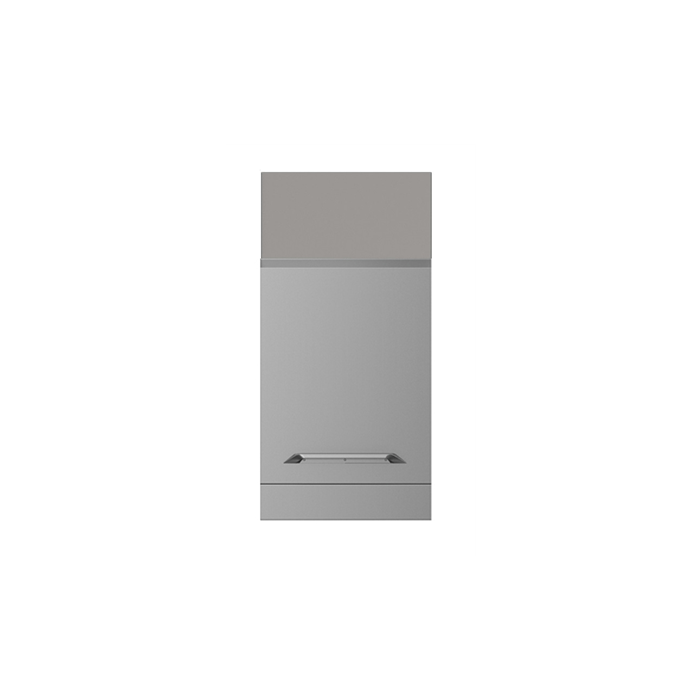

Electrolux Medium drying zone with door for dual rinse rack type dishwasher PNC 535097

Electrolux

£6,697.20 £5,581.00

In stock

SKU

535097

Main Features

Electronically controlled to optimize drying results.
Drying zone removes most of water from the crockery through a high powered fan that extracts dry air from outside mixing it with the internal air, thus providing dry plates at a temperature cool enough to handle safely.
IP25 protection against water jets, solid objects and small animals (larger than 6 mm).
The feeding direction can be either left to right or right to left as it's reversible on site.
Large counter balanced inspection door allows unrestricted all-round access to the internal area. Door is insulated with injected foam. This adds strength as well as reduces noise and heat loss.
Unit to be placed between dual rinse rack type dishwasher and handling system.
The chamber is pressed with fully rounded corners without internal pipes and therefore no hidden dirt traps.
All main components made in heavy duty anti-corrosive 304 type stainless steel: internal chamber, external, front and side panels, door and rack transportation system.
The unit is built on modularity concept to easily connect with dual rinse rack type dishwasher without any modification including power, inlet water, drain water, detergent and rinse aid connections.

Medium drying zone with door for green&clean Dual Rinse Rack Type Dishwasher

Details

The Electrolux Medium drying zone with door for dual rinse rack type dishwasher PNC 535097 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric

Supply voltage: 380-415 V/3N ph/50 Hz
Default Installed Power: 4.4 kW
Dryer heating elements: 4.13kW
Drying fan power: 0.23kW

Key Information:

Dryer air flow: 540m3/h
Dryer air temperature: 70C
External dimensions, Width: 560 mm
External dimensions, Height: 1172 mm
External dimensions, Depth: 825 mm
For transportation purpose only, the depth can be reduced to 795mm by removing the door handle.
Net weight: 57 kg
Shipping weight: 68 kg
Shipping height: 1310 mm
Shipping width: 910 mm
Shipping depth: 610 mm
Shipping volume: 0.73 m
Noise level: <62 dBA
Reference norm used to measure the noise: IEC60335-2-58 annex AA.

The Electrolux Medium drying zone with door for dual rinse rack type dishwasher PNC 535097 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
