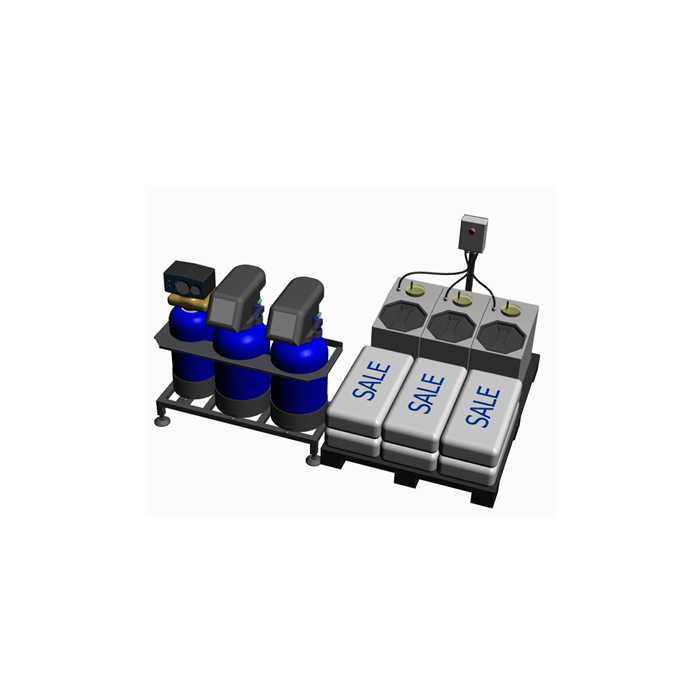

Electrolux Kit water softener for rack type PNC 865284

£6,855.60 £5,713.00
In stock
SKU
865284

Main Features

  • The water softener treats the water before it feeds into the dishwasher. The supply water is decalcified, the calcium carbonate is substituted by water soluble salts.

  • The water softener kit can be used with both hot water (up to 65C) and cold water (up to 35C) supply thanks to separate resin cylinders for different inlet water temperature. Hot water to fill the tank while cold water for rinsing during normal operation.

  • Two cylinders for cold water alternate water softening and resin regeneration supply continuous water flow for non-stop dishwasher operation. While cylinder for hot water will be programmed the regeneration intervals depending on required capacity and inlet water hardness.

  • Flow rate of 16 l/min at 15C.

  • Three big brine containers regenerate each resin cylinder automatically.

  • Each brine container has floating sensor to monitor the salt level and provide the warning signal in case of missing salt.

  • Equipped with manual by-pass allows in case of malfunctions to exclude the water softener system for continuous function of the dishwasher.

  • Each cylinder has its own display to set automatic regeneration or self diagnosis.

  • The kit can be installed under the handling tables of the dishwasher.

  • Resin cylinders and salt containers are built in a skid for easy handling and storage.

  • Incorporates two resin cylinders for cold water with 13 liters each and 12 liters resin cylinder for hot water.

  • Three 40 liters brine containers.


Kit water softener for Rack Type dishwasher

The Electrolux Kit water softener for rack type PNC 865284 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 230 V/1 ph/50 Hz
  • Total Watts: 0.25 kW
Key Information:
  • External dimensions, Width: 828 mm
  • External dimensions, Height: 730 mm
  • External dimensions, Depth: 510 mm
  • Net weight: 60 kg
  • Packaging size

    (WxDxH): 750x1150x1020 mm
Water:
  • Inlet water supply pressure: 2-6 bar
  • Inlet water supply hardness (MAX): 60fH / 32dH
  • Incoming water line size: 3/4"
  • Water flow rate at 15C: 16 l/min
  • Upstream water softener recommended if water chlorinated concentration > 0.5 mg/l

The Electrolux Kit water softener for rack type PNC 865284 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
