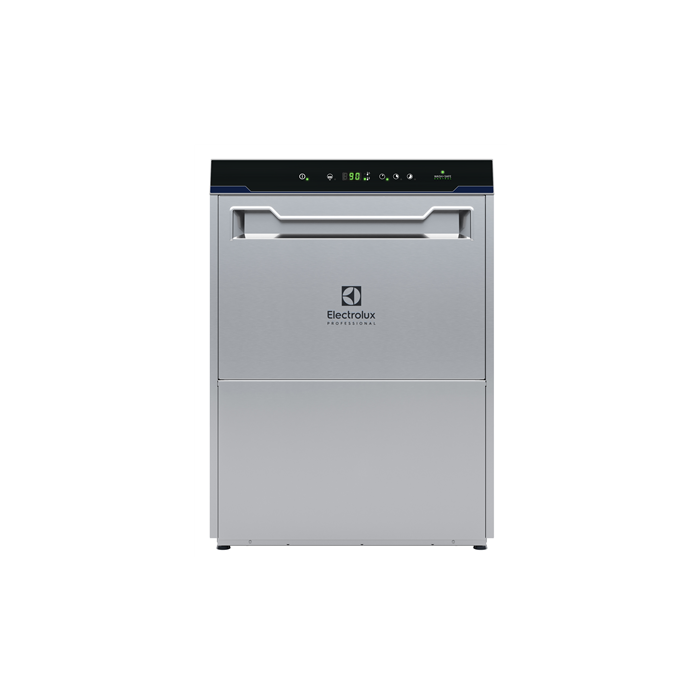

Electrolux hygiene&clean Undercounter dishwasher with DIN 10512 and A0 60 certification PNC 502072

Main Features

• Performance is certified for disinfection level according to DIN 10512 standard (1st and 2nd cycle) and A0 60 level according to EN 15883-1 standard (3rd cycle as Disinfection cycle) by independent third party.

• Cycle cannot be interrupted thanks to door lock mechanism ensuring the complete cycle is performed.

• Built-in rinse aid and detergent dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.

• Built-in atmospheric boiler sized to raise incoming 50 C water to 90 C minimum for sanitizing rinse. No external booster is required. Constant temperature of 90 C thoughout the rinsing cycle regardless of the network's water pressure.

• Green light of "WASH SAFE CONTROL" confirms that items have been rinsed properly.

• High efficiency air gap (class A) in water inlet circuit to avoid water being siphoned back contaminating the network is compliant with EN 61770 standard, WRAS, Belgaqua back-flow prevention requirements.

• Incorporated Soft Start feature to offer additional protection to more delicate items.

• Maximum capacity per hour of 40 racks or 480 dishes.

• 90/ 120 second cycles is certified according to DIN 10512 standard. While 240 second cycle is certified A0 60 level according to EN 15883-1 standard which including final pause to improve the drying result to avoid water residuals on the washed wares.

• 4 second (variable) pause after washing and before rinsing ensures that no drops of unclean water will fall on the clean items at the end of the rinsing cycle.

• An effective rinse system uses only 3 litres (1st & 2nd cycle) or 4 liters (3rd cycle) of clean hot water per basket for perfect disinfection result at low energy, water, detergent and rinse aid consumption.

• Unique temperature interlock guarantees required temperatures in both the wash and final rinse.

• Double skinned insulated wall ensures a low noise level and a reduction in heat loss from the machine.

• Automatic self-cleaning cycle to avoid bacteria proliferation.

• State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.

• Digital read-out keeps operator informed as to temperatures.

• Fault auto-diagnosis system.

• Three phase or single phase electrical connection, convertible on-site.

• Low noise level.

• IPx4 water protection.

• Internal cavity as well as components are all 304 series Stainless steel.

• Incorporated drain pump to control water level in wash tank draining.

• Heavy duty Stainless steel construction.

• Special designed Stainless steel nozzles provide superior cleaning action.

• Revolving Stainless steel wash/rinse arms above and below the basket.

• Interchangeable wash/rinse arms screw out for simple clean up.

• Large deep drawn wash tank and internal wash area with round corners and no pipes to avoid dirt built-up.

• Element protection from dry fire and low water.

• The boiler drain facilitates the evacuation of stagnant water after long periods of inactivity to ensure a higher level of hygiene.

Undercounter Dishwasher, double skin, insulated with atmospheric boiler, drain pump, detergent and rinse aid dispenser, DIN 10512 and A0 60 certification, 40r/h
