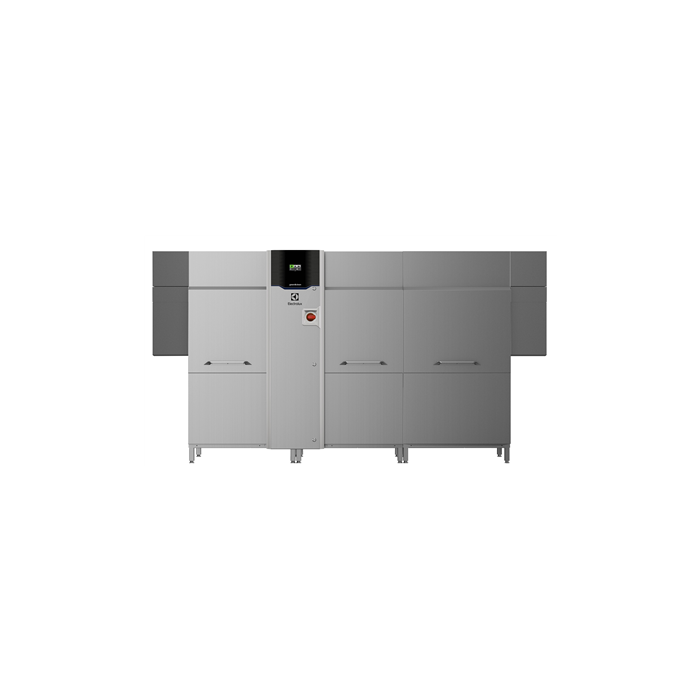

Electrolux hygiene&clean multi-rinse Rack Type with DIN 10510 and A0 60 certification PNC 535143

Main Features

• Adjustable feet for full access underneath the machine for cleaning.

• Deep drawn pressed wash tank with fully rounded corners, sloped towards the drain to prevent dirt build up provides fast drainage in only a few minutes. Pressed wash tank with no welded points offer a guaranteed water tight solution.

• Large counter balanced inspection doors allow unrestricted all-round access to the wash and rinse area. Door is insulated with injected foam. This adds strength as well as reduces noise and heat loss.

• Self-draining wash pumps provide maximum hygiene and all wash and rinse zones drain automatically at the push of a button.

• IP25 protection against water jets, solid objects and small animals (larger than 6 mm).

• Built-in drain valve in the tanks allows automatic dump and fill to refresh the water in the tank without any interruption of the washing process.

• ZERO LIME Device as a fully automatic cycle ensures total scale removal from the boiler, the hydraulic circuit, the washing chamber and the rinsing chamber allowing ultimate performances and lower energy consumption thanks to highly efficient heating elements.

• Built-in Energy Saving Device (ESD) utilizes the hot steam generated by the machine in the rinse and wash tanks to heat up incoming cold water up to 55C before entering the boiler, thus saving energy.

• CLEAR BLUE filtering system removes soil from the wash water providing cleaner water and highly active detergent thus ensuring better washing performance and lower running costs.

• Built-in WASH-SAFE CONTROL system raises water temperature to 85C to sanitize the rinse water. No external boiler is required. Built-in air break and rinse booster pump ensure constant temperature and pressure throughout the rinsing cycle regardless of the inlet water condition.

• Multi-rinse arms in combination with double rinse tanks re-use final rinsing water in several phases to ensure hygiene and complete detergent removal on the washed wares.

• Auto-start/stop equipped in different zones ensures that the zone runs only when a rack is passing through it. This reduces water, energy, chemical consumption and noise.

• Intuitive touch screen control panel features user-friendly display to easily operate the machine and to monitor machine status. Three different levels of interaction are available each show relevant messages and information to the operator, the general maintenance staff and the authorized service partners.

• Automatic drain, clean and sanitize cycles featured as standard. The internal chambers, including the internal doors are completely cleaned or sanitized avoiding bacteria proliferation for maximum hygiene and reducing manual work/time for operator.

• All internal components: wash and rinse arms, tank filters, curtains can be easily removed for cleaning.

• Splashhood at the entrance avoids water spilling outside the machine.

• Unit equipped with USB port making it simple to read data such as machine identification, counters and consumption, components, devices and alarm logs. Machine parameters can be uploaded and downloaded and firmware updated.

• Maximum Water Contact (MWC) wash arms are positioned along the full length of the wash tank.

• Automatic back-up mode is activated when a failure occurs. Guided troubleshooting for fast fixes including 300 precises notifications and 23 easy-to-follow processes.

• Maximum capacity per hour of 150 racks.

• Performance is certified for disinfection level according to DIN 10510 standard (3rd speed) and A0 60 level according to EN 15883-1 standard (1st speed as Disinfection cycle) by independent third party.

• Multi rinse technology guarantees low rinse water consumption of minimum 0.7 liters per rack to ensure perfect disinfection result at low energy, water, detergent and rinse aid consumption.

• Three conveyor speeds (in which 1 speed as Disinfection cycle certified A0 60 according to EN 15883-1 standard and 3 speed certified according to DIN 10510 standard,) can be selected through the control panel by the operator.

• Modularity design allows the machine not only be disassembled for delivery and re-assembled at customer s site, but also to be customized and upgraded on-site and over time.

• Dishwasher structure is held together with a solid 50 x 50 mm stainless steel frame to provide long-term sturdiness.

• All electric components are put in one IP65 central box isolated from water and steam to ensure high reliability.

• External pre-arrangement for inlet water, drain water, detergent & rinse aid connections for fast and easy installation on both sides of the unit.

• All chambers without internal pipes and therefore no hidden dirt traps.

• All main components made in heavy duty anti-corrosive 304 type stainless steel: external front, side panels and internal chambers, wash and rinse arms, doors and rack transportation system.

• The unit is built on modularity concept for easy to add up to 2 dryer modules onsite.

Multi-rinse Rack type Dishwasher, Energy Saving Device, ZERO LIME Device, CLEAR BLUE Filtering system, WASH-SAFE CONTROL, DIN 10510 and A0 60 certification, Left>Right, 150r/h
