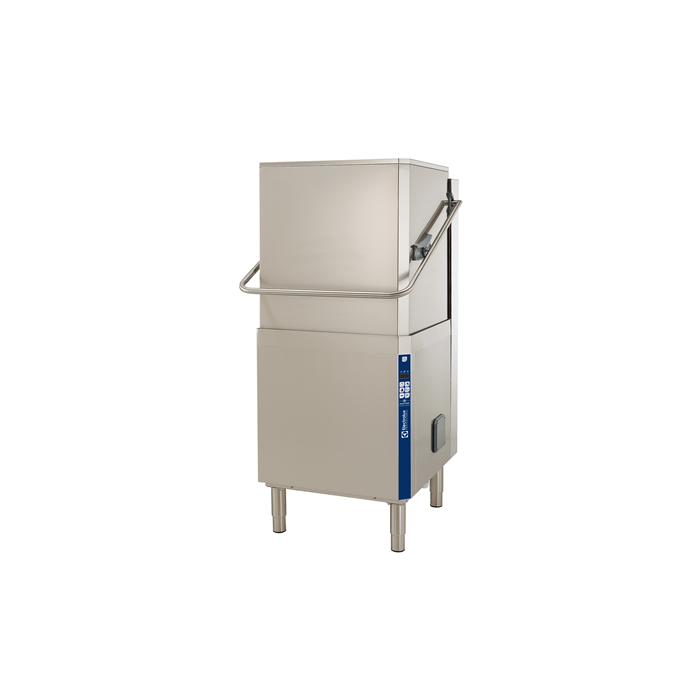

The Electrolux green&clean hood type Dishwasher with ZERO LIME Device PNC 505104 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric

• Supply voltage: 400 V/3N ph/50 Hz
• Convertible to: 230V 3~; 230V 1N~ 50Hz
• Default Installed Power: 9.9 kW
• Reducible Installed Power:* 6.9 kW
• Boiler Heating Elements Power: 9 kW
• Boiler Reducible To:* 6 kW
• Tank heating elements: 3 kW
• Wash pump size: 0.8 kW

Key Information:

• N of cycles: 3
• Duration cycle:* 45/84/150 sec.
• Duration cycle - NSF/ANSI 3 compliant: 57/84/150 sec.
• Racks per hour:* 80
• Racks per hour - NSF/ANSI 3 compliant: 63
• Dishes per hour:* 1440
• Dishes per hour - NSF/ANSI 3 compliant: 1134
• Wash temperature: 55-65 C
• Wash temperature - NSF/ANSI 3 compliant: 75 C
• Rinse temperature: 84 C
• External dimensions, Width: 746 mm
• External dimensions, Height: 1549 mm
• External dimensions, Depth: 755 mm
• Net weight: 106 kg
• Shipping weight: 118 kg
• Shipping volume: 1.23 m
• Packaging size

  (WxDxH): 746x755x1547 mm
• Noise level: <68 dBA
•
  * According to market standard, the productivity is declared at an inlet water supply temperature of 50C . If the water is supplied at 65C, the power can be reduced by 3 kW without any loss in productivity.
• ** When connected to cold water, the cycle time will be prolonged accordingly. The machine will have productivity per hour of 48 racks at 10C supply temperature or 55 racks at 20C supply temperature

Water:

• Water supply temperature*: 10-65 C
• Drain line size: 20.5 mm
• Inlet water supply pressure: 0.5-7 bar
• Water consumption per cycle (lt): 2
• Boiler Capacity (lt): 12
• Tank Capacity (lt): 24

The Electrolux green&clean hood type Dishwasher with ZERO LIME Device PNC 505104 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.
