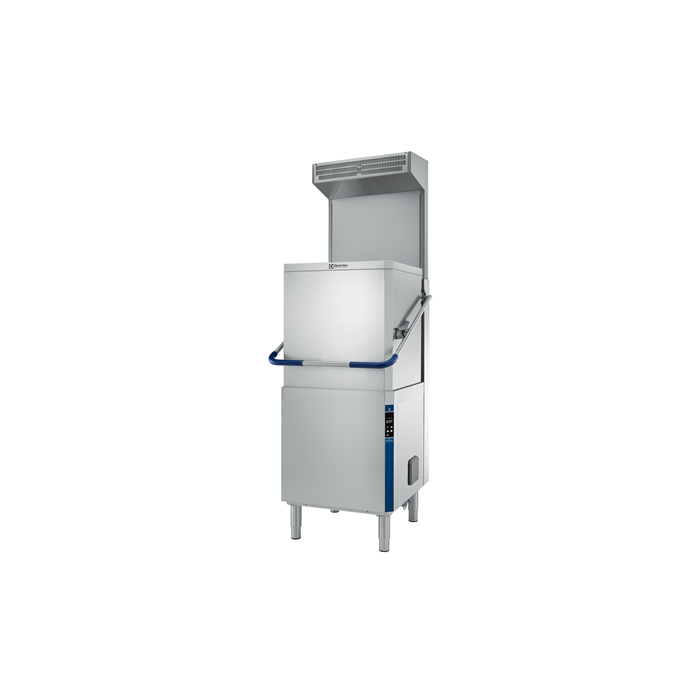

The Electrolux green&clean hood type Dishwasher, Manual with ESD, Continuous Water Softener & Filtering System PNC 504079 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric

• Supply voltage: 400 V/3N ph/50 Hz
• Convertible to: 230V 1N~; 230V 3~
• Default Installed Power: 9.9 kW
• Boiler Heating Elements Power: 9 kW
• Tank heating elements: 3 kW

Key Information:

• N of cycles: 3
• Duration cycle:* 45/84/150 sec.
• Duration cycle - NSF/ANSI 3 compliant: 57/84/150 sec.
• Racks per hour:* 80
• Racks per hour - NSF/ANSI 3 compliant: 63
• Dishes per hour:* 1440
• Dishes per hour - NSF/ANSI 3 compliant: 1134
• Wash temperature: 55-65 C
• Wash temperature - NSF/ANSI 3 compliant: 75 C
• Rinse temperature: 84 C
• External dimensions, Width: 752 mm
• External dimensions, Height: 2273 mm
• External dimensions, Depth: 755 mm
• Net weight: 150 kg
• Shipping weight: 130 kg
• Shipping weight (ESD): 36 kg
• Shipping volume: 1.23 m
• Shipping volume (ESD): 0.33 m
• Packaging size

  (WxDxH): 870x720x1630 mm
• Packaging size ESD (WxDxH): 730x930x480 mm
• Noise level: <63 dBA

Water:

• Water supply temperature*: 10-20 C
• Drain line size: 20.5 mm
• Inlet water supply pressure: 0.5-7 bar
• Water consumption per cycle (lt): 2
• Boiler Capacity (lt): 12
• Tank Capacity (lt): 24

Air Emission:

• Air Flow: 28 m/h
• Air temperature: 26 - 29 C
• Air humidity: 55%
•
  * productivity guaranteed at any supply temperature allowed in the range above. To ensure full energy recovery, an extra 11 seconds is required.

The Electrolux green&clean hood type Dishwasher, Manual with ESD, Continuous Water Softener & Filtering System PNC 504079 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 405 7580.
