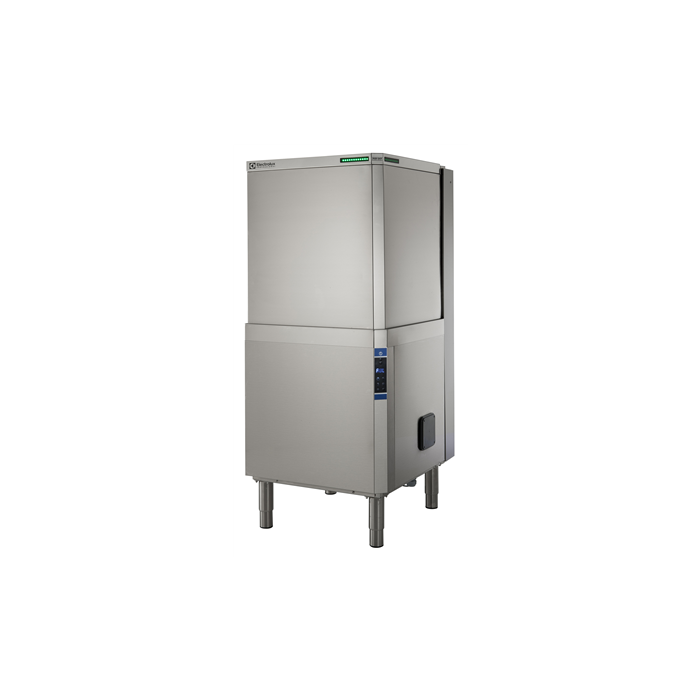

Electrolux green&clean hood type Dishwasher, Automatic with ZERO LIME Device & Filtering System PNC 504251

£7,750.80 £6,459.00
In stock
SKU
504251

Main Features

  • NSF/ANSI 3 and DIN 10512 compliant.

  • 45/84/150 seconds cycles (High productivity mode); 57/84/150 seconds cycles (NSF/ANSI 3 mode).

  • The machine can be connected to cold water.

  • ZERO LIME Device ensures total scale removal from the boiler, the hydraulic circuits and the washing chamber allowing ultimate performances and lower energy consumption thanks to the high-efficiency heating element.

  • CLEAR BLUE advanced filtering system provides cleaner wash water and higher active detergent thus ensuring better washing performances and lower running costs.

  • Requires only 2 liters of water per washing cycle thus ensuring low energy, water, detergent and rinse aid consumption.

  • Built-in atmospheric boiler sized to raise incoming water to a minimum of minimum 84 C for sanitizing rinse. No external booster is required. Constant temperature of 84 C throughout the rinsing cycle regardless of the network's water pressure.

  • Green light of "WASH SAFE CONTROL" confirms that items have been rinsed properly.

  • Unique temperature interlock guarantees required temperatures in both the wash and final rinse.

  • Incorporated Soft Start feature to offer additional protection to more delicate items.

  • Automatic start on hood closure and automatic hood lifting when cycle ends.

  • Slanted wash arms and sloped ceiling to avoid detergent-filled wash water dropping on clean dishes after the rinsing phase, thus guaranteeing ideal washing results.

  • Cycle may be interrupted at any time by lifting the hood.

  • Automatic self-cleaning cycle and self-draining vertical wash pump and boiler to avoid bacteria proliferation.

  • LED strip on the top keeps operator informed on machine status.

  • State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.

  • Built-in rinse aid dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.

  • Boiler power setting from control panel to facilitate technician's operation when reducing total installed power, thus avoiding the need of machine opening.

  • Three phase electrical connection, convertible to single phase on-site.

  • IP25 protection against water jets, solid objects and small animals (larger than 6 mm).

  • Heavy duty Stainless steel construction. Internal cavity as well as exterior panels are in 304 series Stainless steel.

  • Pressed tank in front position to facilitate cleaning.

  • Automatic double skin insulated hood.

  • Specially designed Stainless steel wash/rinse arms and nozzles provide superior cleaning action.

  • Revolving interchangeable Stainless steel wash/rinse arms above and below the rack, screw out for simple clean up.

  • Pre-arranged for on-site HACCP implementation and Energy Management device.

  • Element protection from dry fire and low water.

  • Unit to include drain pump and rinse aid dispenser pump.


Hood Type Dishwasher, with double skin insulated automatic hood, Wash Safe Control, ZERO LIME Device, CLEAR BLUE Filtering System, rinse aid dispenser and drain pump, 80r/h

The Electrolux green&clean hood type Dishwasher, Automatic with ZERO LIME Device & Filtering System PNC 504251 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 400 V/3N ph/50 Hz
  • Convertible to: 230V 1N~; 230V 3~
  • Default Installed Power: 9.9 kW
  • Reducible Installed Power:* 6.9 kW
  • Boiler Heating Elements Power: 9 kW
  • Boiler Reducible To:* 6 kW
  • Tank heating elements: 3 kW
Key Information:
  • N of cycles: 3
  • Duration cycle:* 45/84/150 sec.
  • Duration cycle - NSF/ANSI 3 compliant: 57/84/150 sec.
  • Racks per hour:* 80
  • Racks per hour - NSF/ANSI 3 compliant: 63
  • Dishes per hour:* 1440
  • Dishes per hour - NSF/ANSI 3 compliant: 1134
  • Wash temperature: 55-65 C
  • Wash temperature - NSF/ANSI 3 compliant: 75 C
  • Rinse temperature: 84 C
  • External dimensions, Width: 667 mm
  • External dimensions, Height: 1567 mm
  • External dimensions, Depth: 755 mm
  • Net weight: 119 kg
  • Shipping weight: 139 kg
  • Shipping volume: 1.04 m
  • Packaging size

    (WxDxH): 770x680x1630 mm
  • Noise level: <63 dBA

  • * According to market standard, the productivity is declared at an inlet water supply temperature of 50C . If the water is supplied at 65C, the power can be reduced by 3 kW without any loss in productivity.
  • ** When connected to cold water, the cycle time will be prolonged accordingly. The machine will have productivity per hour of 48 racks at 10C supply temperature or 55 racks at 20C supply temperature
Water:
  • Water supply temperature*: 10-65 C
  • Drain line size: 20.5 mm
  • Inlet water supply pressure: 0.5-7 bar
  • Water consumption per cycle (lt): 2
  • Boiler Capacity (lt): 12
  • Tank Capacity (lt): 24

The Electrolux green&clean hood type Dishwasher, Automatic with ZERO LIME Device & Filtering System PNC 504251 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
