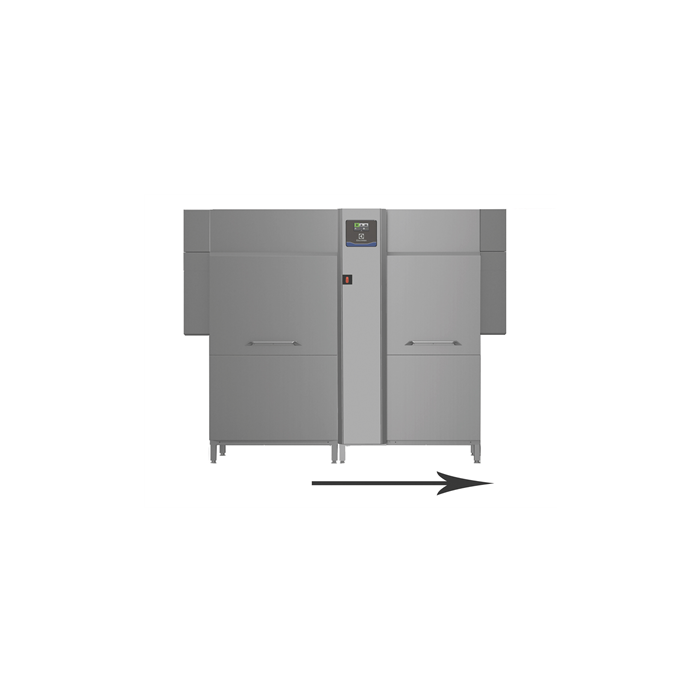

The Electrolux green&clean dual rinse rack type, Energy Saving Device,ZERO LIME,Wash-Safe Control 250r/h, elec-50Hz PNC 535107 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric

• Supply voltage: 380-415 V/3N ph/50 Hz
• Default Installed Power: 33 kW
• Electrical power min: 23 kW
• When the machine is run at DIN 10510 compliant speed.
• Pre-wash tank heating elements: 7 kW
• Pre-wash tank heating element are activated only during sanitation cycle.
• Boiler heating elements: 19 kW
• Wash pump size: 1.5kW
• Wash tank heating elements: 10 kW

Key Information:

• Productivity per hour (max. speed): 250 racks/4500dishes
• Productivity per hour (medium speed): 168 racks/3024 dishes
• Productivity per hour (DIN compliant speed): 115 racks/2070 dishes
• Wash Temperature: 55 - 65 C
• Pre-wash temperature: 10-40C
• Final rinse temperature: 85 C
• External dimensions, Width: 2410 mm
• External dimensions, Height: 1908 mm
• External dimensions, Depth: 925 mm
• For transportation purpose only, the depth can be reduced to either 895mm by removing the main switch button or 797mm by removing the control box and the door handle.
• Height with door open: 2095 mm
• Charging hole size (width): 530 mm
• Charging hole size (height): 490 mm
• Shipping height: 2068 mm
• Shipping width: 1006 mm
• Shipping depth: 2142 mm
• Shipping volume: 4.46 m
• Noise level: <62 dBA
• Reference norm used to measure the noise: IEC60335-2-58 annex AA.
• Table to table distance: 2010 mm

Water:

• Inlet hot water line size: G 3/4"
• Inlet cold water line size: G 3/4"
• Drain line size: 50mm
• Inlet water supply pressure: 1.5-6 bar
• Inlet water supply temperature (wash): 50 - 65 C
• Inlet water supply hardness: 14 fH / 8dH
• When below 7fH/4dH special detergent and rinse aid are needed.
• Peak rate of drain flow: 2.5 l/s
• Pre-wash tank size: 70 l
• Water cold/hot pipe size G 3/4"
• Rinse water consumption at max speed (l/rack): 1 l/rack
• Rinse water consumption at max speed (l/h) 250 l/h

Air Emission:

• Air flow (top, exit): 565 / 0 m/h
• Air temperature (top, exit): 27 C
• Air humidity (top, exit): 100 / 0 % r.h.
• The data is measured at exhaust points at 25C and 60% r.h. ambient conditions, 18C inlet water temperature and refer only to the machine.
• Latent heat: 5000 W
• Sensible heat: 3500 W
• This model requires a ventilation hood. Please refer to the attached "Recommended Exhaust Hood Design".


The Electrolux green&clean dual rinse rack type, Energy Saving Device,ZERO LIME,Wash-Safe Control 250r/h, elec-50Hz PNC 535107 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 405 7580.
