Electrolux green&clean dual rinse rack type dishwasher with Steam abatement, 150 racks/hour, electric, 60Hz (Marine) PNC CC0FW0

£24,055.20 £20,046.00
In stock
SKU
CC0FW0

Main Features

  • Adjustable feet for full access underneath the machine for cleaning.

  • IP25 protection against water jets, solid objects and small animals (larger than 6 mm).

  • Built-in drain valve in the tanks allows automatic dump and fill to refresh the water in the tank without any interruption of the washing process.

  • CLEAR BLUE filtering system removes soil from the wash water providing cleaner water and highly active detergent thus ensuring better washing performance and lower running costs.

  • Auto-start/stop equipped in different zones ensures that the zone runs only when a rack is passing through it. This reduces water, energy, chemical consumption and noise.

  • Intuitive touch screen control panel features user-friendly display to easily operate the machine and to monitor machine status. Three different levels of interaction are available each show relevant messages and information to the operator, the general maintenance staff and the authorized service partners.

  • All internal components: wash and rinse arms, tank filters, curtains can be easily removed for cleaning.

  • Unit equipped with USB port making it simple to read data such as machine identification, counters and consumption, components, devices and alarm logs. Machine parameters can be uploaded and downloaded and firmware updated.

  • Large counter balanced inspection door allow unrestricted all-round access to the wash and rinse area. Door is insulated with injected foam. This adds strength as well as reduces noise and heat loss.

  • Built-in stabilized pressure valve ensures constant pressure throughout the rinsing cycle regardless of inlet water pressure.

  • Automatic drain, clean and sanitize cycles featured as standard. The internal chamber, is completely cleaned or sanitized avoiding bacteria proliferation for maximum hygiene and reducing manual work/time for operator.

  • Self-draining vertical wash pumps provide maximum hygiene.

  • Automatic back-up mode is activated when a failure occurs. Guided troubleshooting for fast fixes including 150 precises notifications and 23 easy-to-follow processes.

  • Dual rinse technology ensures maximum rinse water covering every corner of the rack inside the rinse area for perfect hygiene on washed wares.

  • Dual rinse with stabilized pressure valve guarantees rinse water consumption of 1.2 liters/ rack regardless of inlet water pressure to ensure low energy, water, detergent and rinse aid consumption.

  • Three conveyor speeds can be selected through the control panel by the operator and customized on-site.

  • The unit is ready to be connected with OnE Connectivity for 24/7 real time monitoring, increasing equipment uptime, maximum profit and optimizing your process.

  • Maximum capacity per hour of 150 racks easy to switch to DIN 10510 compliant or other speed.

  • USPH performance compliant.

  • Built-in Steam Abatement using chilled water to absorb the hot steam generated by the machine thus releasing dry and fresh air to the dishwashing area.

  • Deep drawn pressed wash tank with fully rounded corners, sloped towards the drain to prevent dirt buildup, provides fast drainage in just a few minutes. With no welding points the pressed tank offers a guaranteed water tight solution.

  • Modularity design allows the machine not only be disassembled for delivery and re-assembled at customer s site, but also to be customized and upgraded on-site and over time.

  • Dishwasher structure is held together with a solid 50 x 50 mm stainless steel frame to provide long-term sturdiness.

  • All electric components are put in one IP65 central box isolated from water and steam to ensure high reliability.

  • External pre-arrangement for inlet water, drain water, detergent & rinse aid connections for fast and easy installation on both sides of the unit.

  • All chambers without internal pipes and therefore no hidden dirt traps.

  • All main components made in heavy duty anti-corrosive 304 type stainless steel: external front, side panels and internal chambers, wash and rinse arms, doors and rack transportation system.

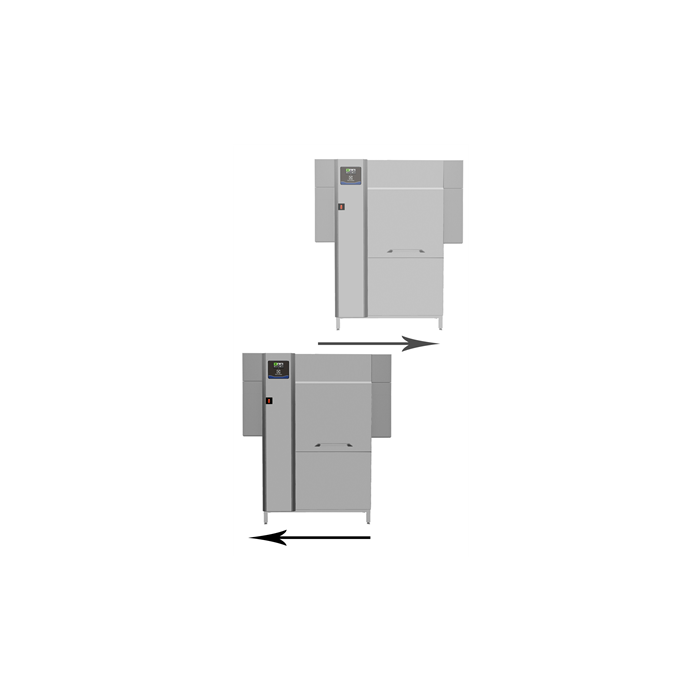

  • The feeding direction is right to left as pre-arrangement from the factory, but it can be simply reversed on-site to left to right.

  • The unit is built on modularity concept for easy to add pre-wash and dryer modules on-site.

  • The unit is designed for marine application as components is easily accessible from front for service and maintenance without removing the machine.


Dual rinse rack type dishwasher, 150 racks/hour, Energy Saving Device, CLEAR BLUE Filtering System, electric, touch screen, customized direction on-site, USPH compliant, 60Hz - Marine

The Electrolux green&clean dual rinse rack type dishwasher with Steam abatement, 150r/h, electric, 60Hz (Marine) PNC CC0FW0 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 440 V/3 ph/60 Hz
  • Default Installed Power: 42.1 kW
  • Electrical power min: 22.1 kW
  • When the machine is run at DIN 10510 compliant speed.
  • Boiler heating elements: 20 kW
  • Wash pump size: 1.2 kW
  • Wash tank heating elements: 20 kW
Key Information:
  • Productivity per hour (max. speed): 150 racks/2700dishes
  • Productivity per hour (medium speed): 114 racks/2052 dishes
  • Productivity per hour (DIN compliant speed): 82 racks/1476 dishes
  • Wash Temperature: 71 - 76 C
  • Final rinse temperature: 86 C
  • External dimensions, Width: 1520 mm
  • External dimensions, Height: 1908 mm
  • External dimensions, Depth: 925 mm
  • For transportation purpose only, the depth can be reduced to either 895mm by removing the main switch button or 797mm by removing the control box and the door handle.
  • Height with door open: 2095 mm
  • Charging hole size (width): 530 mm
  • Charging hole size (height): 490 mm
  • Shipping width:
  • Noise level: <62 dBA
  • Reference norm used to measure the noise: IEC60335-2-58 annex AA.
  • Table to table distance: 1120 mm
Water:
  • Inlet hot water line size: G 3/4"
  • Inlet cold water line size: G 3/4"
  • Drain line size: 50mm
  • Inlet water supply pressure: 1.5-6 bar
  • Inlet Water Supply temperature (Steam abatement): 5 - 10 C
  • Inlet water supply temperature (wash and rinse): 50 - 65C
  • Inlet water supply hardness: 14 fH / 8dH
  • When below 7fH/4dH special detergent and rinse aid are needed.
  • Peak rate of drain flow: 2.5 l/s
  • Wash tank size: 70 l
  • Rinse water consumption at max speed: 1.2 l/rack
Air Emission:
  • Air flow (top, exit): 565 / 0 m/h
  • Air temperature (top, exit): 26.5 C
  • Air humidity (top, exit): 100 / 0 % r.h.
  • The data is measured at exhaust points at 25C and 60% r.h. ambient conditions, 18C inlet water temperature and refer only to the machine.
  • Latent heat: 4700 W
  • Sensible heat: 2000 W
  • This model requires a ventilation hood. Please refer to the attached "Recommended Exhaust Hood Design".

The Electrolux green&clean dual rinse rack type dishwasher with Steam abatement, 150r/h, electric, 60Hz (Marine) PNC CC0FW0 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
