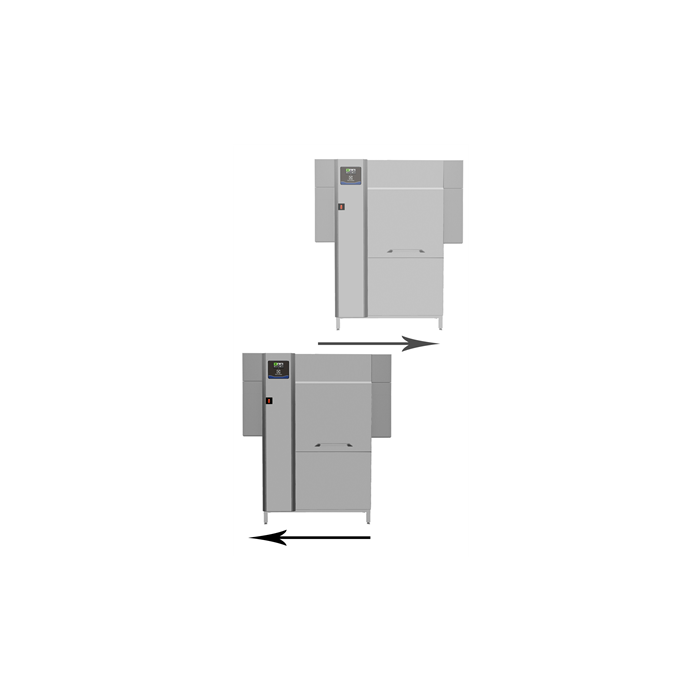

The Electrolux green&clean dual rinse rack type dishwasher with Energy Saving Device, 150racks/hour, electric,50Hz PNC 534062 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric

• Supply voltage: 380-415 V/3N ph/50 Hz
• Default Installed Power: 26.1 kW
• Electrical power min: 16.1 kW
• When the machine is run at DIN 10510 compliant speed.
• Boiler heating elements: 14 kW
• Wash pump size: 1,2 kW
• Wash tank heating elements: 10 kW

Key Information:

• Productivity per hour (max. speed): 150 racks/2700dishes
• Productivity per hour (medium speed): 114 racks/2052 dishes
• Productivity per hour (DIN compliant speed): 82 racks/1476 dishes
• Wash Temperature: 55 - 65 C
• Final rinse temperature: 85 C
• External dimensions, Width: 1520 mm
• External dimensions, Height: 1908 mm
• External dimensions, Depth: 925 mm
• For transportation purpose only, the depth can be reduced to either 895mm by removing the main switch button or 797mm by removing the control box and the door handle.
• Height with door open: 2095 mm
• Charging hole size (width): 530 mm
• Charging hole size (height): 490 mm
• Shipping height: 2068 mm
• Shipping width: 1006 mm
• Shipping depth: 1255 mm
• Shipping volume: 2.61 m
• Noise level: <62 dBA
• Reference norm used to measure the noise: IEC60335-2-58 annex AA.
• Table to table distance: 1120 mm

Water:

• Inlet hot water line size: G 3/4"
• Inlet cold water line size: G 3/4"
• Drain line size: 50mm
• Inlet water supply pressure: 1.5-6 bar
• Inlet Water Supply temperature (rinse): 10-30C
• Inlet water supply temperature (wash): 50 - 65 C
• Inlet water supply hardness: 14 fH / 8dH
• When below 7fH/4dH special detergent and rinse aid are needed.
• Peak rate of drain flow: 2.5 l/s
• Wash tank size: 70 l
• Rinse water consumption at max speed (l/h) 180 l/h

Air Emission:

• Air flow (top, exit): 565 / 0 m/h
• Air temperature (top, exit): 27 C
• Air humidity (top, exit): 100 / 0 % r.h.
• The data is measured at exhaust points at 25C and 60% r.h. ambient conditions, 18C inlet water temperature and refer only to the machine.
• Latent heat: 5000 W
• Sensible heat: 2100 W
• This model requires a ventilation hood. Please refer to the attached "Recommended Exhaust Hood Design".

The Electrolux green&clean dual rinse rack type dishwasher with Energy Saving Device, 150racks/hour, electric,50Hz PNC 534062 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 405 7580.
