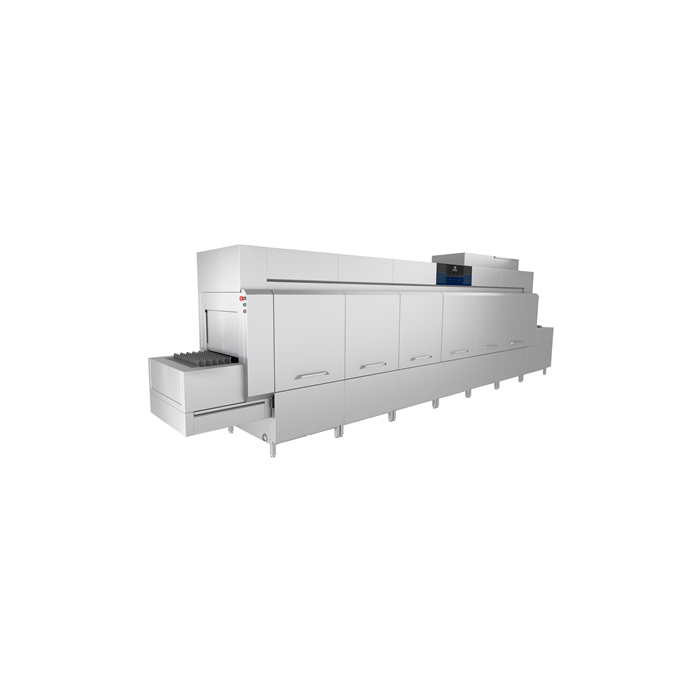

The Electrolux Flight type dishwasher, 4 tanks, 10800 dishes/h, electric, 950mm loading, 1600mm unloading,ESD PNC 520131 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric

• Supply voltage: 380-415 V/3N ph/60 Hz
• Default Installed Power: 87.7 kW
• Pre-wash tank heating elements:
• Wash tank heating elements: 16 kW
• 2nd wash tank heating elements: 16 kW
• 3rd wash tank heating elements: 16 kW
• Duo rinse tank heating elements:
• Boiler heating elements: 21 kW
• Dryer install power: 9.75 kW
• Rinse pump size: 0.25 kW
• Pre-wash pump size: 2 kW
• Wash pump size: 2 kW
• 2nd wash pump size: 2 kW
• 3rd wash pump size: 2 kW

Key Information:

• Final rinse temperature: 82-90 C
• Duo rinse temperature: 82-90 C
• Pre-wash temperature: 30-50 C
• 1st wash temperature: 55-65 C
• Productivity per hour (max speed): 10800 dishes/ 7344 trays / 408 Basket
• Productivity per hour (slow speed): 8748dishes/5832trays/324Basket
• Conveyor speed (min/max): 2.7 / 3.4
• 2nd wash temperature:
• 3rd wash temperature:
• Drying temperature: 50-70 C
• Drying fan capacity: 3500 m/h
• External dimensions, Width: 7350 mm
• External dimensions, Height: 1983 mm
• External dimensions, Depth: 946 mm
• Height with door open: 2092 mm
• Charging hole size (width): 612 mm
• Charging hole size (height): 412 mm
• Net weight: 1602 kg

Water:

• Inlet water line size: ISO 3/4" G / ISO 3/4" G
• Drain line size: 2"
• Inlet water supply pressure: 1-6 bar
• Inlet water supply temperature (boiler): 10 min / 30 max C
• Inlet water supply temperature (tanks): 10 min / 60 max C
• The higher the temperature, the faster the warm-up time. Recommended temperature of 50C.
• Inlet water supply hardness (min/max): 14 / 8 fH/dH
• Pre-wash tank size: 98 l
• Wash tank size: 98 l
• 2nd wash tank size: 98 lt
• 3rd wash tank size: 98 lt
• Duo rinse tank size: 8 l
• Flow rate of pre-wash pump: 560 l/m
• Flow rate of 1st wash pump: 560 l/m
• Flow rate of 2nd wash pump: 560 l/m
• Flow rate of 3rd wash pump: 560 l/m
• Rinse water consumption at max. speed: 320 l/h

Air Emission:

• Air Flow: 500 m/h
• Air temperature: 30 C
• Air humidity: 100%
• The data is measured at exhaust points at 25C and 60% r.h. ambient conditions, 14C inlet water temperature and refer only to the machine.

The Electrolux Flight type dishwasher, 4 tanks, 10800 dishes/h, electric, 950mm loading, 1600mm unloading,ESD PNC 520131 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 405 7580.
