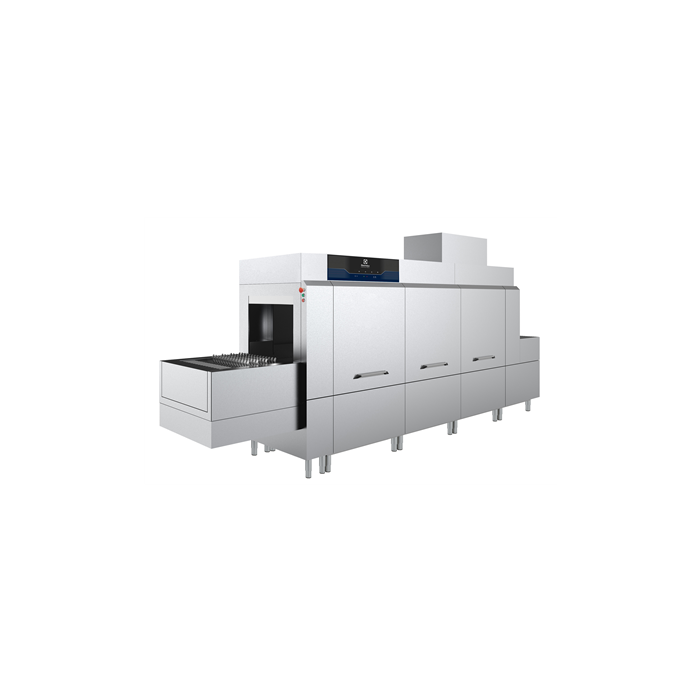

Electrolux Flight type dishwasher, 1 tank, 5200 dishes/h, electric, 950mm loading, 1000mm unloading, 1dryer, PNC 520704

£34,806.00 £29,005.00
In stock
SKU
520704

Main Features

  • The large loading section of 950mm facilitates the loading of tablewares.

  • The water in the main wash tanks circulating at a temperature of 55-65C is pumped with detergent and is sprayed over the items from both the upper and the lower wash arms, guaranteeing a uniform distribution of the washing solution and allowing all the areas of the washing chambers to be covered.

  • Rinse area equipped with the DUO-rinse system: the first rinse arms with side nozzles are filled with re-circulated rinsed water then spray at powerful pressure in a curtain pattern to eliminate majority trace of detergent, while the second arms are filled with hot clean water at temperature of 82-90C to guarantee the hygiene performance on the washed wares.

  • Built-in pre-adjustable pressure valve before the boiler stabilizes incoming water pressure to ensure the proper rinsing pressure for optimum hygiene.

  • A drying section with inspection door (800 mm length) is equipped as an integral part of the machine. This allows the operator to remove practically dried items immediately, without them being too hot to handle.

  • Simple service from the front.

  • Maximum capacity per hour of 5.200 dishes.

  • Low water consumption saves energy, water, detergent and rinse aid. At maximum capacity, the machine uses only 210 liters/hour.

  • Two conveyor speeds can be selected through the control panel by the operator.

  • The multi-purpose conveyor belt with 55mm finger distance allows to load the tablewares either directly on the conveyor or using standard 500x500mm racks.

  • IR photo sensors are incorporated at loading section to stop washing and rinsing soon when no wares loaded, thus effectively save energy, water, detergent and rinse aid.

  • The unloading section of 1.000mm with an end limit switch mounted at the end stops the conveyor automatically to avoid damaging clean items if not removed on time.

  • The machine incorporates a safety switch for stop in urgency at both loading and unloading sections which will stop the conveyor by pushing the button in case that washed wares have not been removed after cleaning.

  • Flat panel with simple to use control and all temperature displays.

  • Adjustable feet for full access underneath the machine for cleaning.

  • All main components made in heavy duty anti-corrosive 304 type stainless steel: external front, side, back panels and internal chamber, wash and arms, tank filters, doors.

  • Deep drawn pressed tanks with fully round corners to prevent dirt build up provides fast drainage. Pressed tanks with no welded points offer a guaranteed water tight solution.

  • No leg in loading area.

  • Double tank filters (flat and small strainer) cover the entire width of the tank.

  • Wash/rinse arms and filters are easy to remove for cleaning.

  • Drain line is fully enclosed with anti-corrosive 304 type stainless steel panels for easy and safe floor cleaning as well as avoid damaging the pipe during transportation.


Flight type dishwasher, 1 tank, 5200 dishes/h, electric, 950mm loading, 1000mm unloading, 1 dryer, 55mm conveyor, right to left

The Electrolux Flight type dishwasher, 1 tank, 5200 dishes/h, electric, 950mm loading, 1000mm unloading, 1dryer, PNC 520704 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 380-415 V/3N ph/50 Hz
  • Default Installed Power: 46.5 kW
  • Boiler heating elements: 18 kW
  • Dryer install power: 9.75 kW
  • Rinse pump size: 0.25 kW
  • Wash pump size: 2 kW
  • Wash tank heating elements: 16 kW / 3+N
Key Information:
  • Productivity per hour (max speed): 5200 dishes/ 3477 trays / 193 Basket
  • Productivity per hour (slow speed): 3240dishes/2160trays/120Basket
  • Conveyor speed (min/max): 1 / 1.6
  • Duo rinse temperature: 60 - 70 C
  • 1st wash temperature: 55-65 C
  • Drying temperature: 50-70 C
  • Final rinse temperature: 82 - 90 C
  • Drying fan capacity: 3500 m/h
  • External dimensions, Width: 4350 mm
  • External dimensions, Height: 1983 mm
  • External dimensions, Depth: 946 mm
  • Height with door open: 2092 mm
  • Charging hole size (width): 612 mm
  • Charging hole size (height): 412 mm
  • Net weight: 899 kg
Water:
  • Inlet water line size: ISO 3/4" G / ISO 3/4" G
  • Drain line size: 2"
  • Inlet water supply pressure: 1-6 bar
  • Inlet water supply temperature (boiler): 10 min / 60 max C
  • Inlet water supply temperature (tanks): 10 min / 60 max C
  • The higher the temperature, the faster the warm-up time. Recommended temperature of 50C.
  • Inlet water supply hardness: 14 fH / 8dH
  • Duo rinse tank size: 8 l
  • Flow rate of 1st wash pump: 560 l/h
  • Wash tank size: 98 l
  • Rinse water consumption at max. speed: 210 l/h
Air Emission:
  • Air flow: 500 m/h
  • Air temperature: 30 - 40 C
  • Air humidity: 100 % r.h.
  • The data is measured at exhaust points at 25C and 60% r.h. ambient conditions, 14C inlet water temperature and refer only to the machine.

The Electrolux Flight type dishwasher, 1 tank, 5200 dishes/h, electric, 950mm loading, 1000mm unloading, 1dryer, PNC 520704 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
