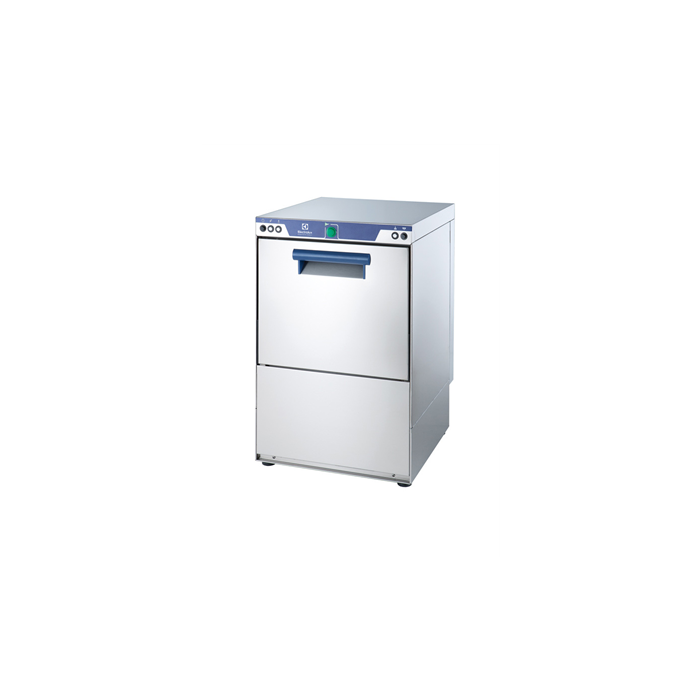

Electrolux Extrasmall Single Skin Glasswasher with Drain Pump and Detergent Dispenser,1cycle,30 racks/hour,no plug-60Hz PNC 402078

Electrolux

In stock

SKU

402078

Main Features

Equipped with single phase electric cable for easy and fast installation.
Built-in pressure boiler designed to raise incoming water to a guaranteed minimum temperature of 82C for sanitizing rinse. No external boiler is required.
Washing system endowed with rotating washing arms, high powered wash pump and large capacity wash tank for professional washing.
Equipped with drain pump for easy and quick installation without opening the machine.
Detergent dispenser for easy connection to the external detergent source.
Maximum capacity of 30 racks per hour.
120 seconds cycle.
Simple operation control panel.
Solid double skinned counter-balance stainless steel door with hurt-free handle in plastic.
Easy service access to main components without moving the unit.
Completely closed on the back by a cover plate.
Internal components (arms and filter) are easy extractable.
Robust structure thanks to stainless steel construction.
Unit to feature rinse aid dispenser pump.
Requires only 1 phase 230V supply.

Glasswasher (extrasmall), single skin, with drain pump and detergent dispenser, no plug, 1 cycle, 30b/h - 60Hz

Details

The Electrolux Extrasmall Single Skin Glasswasher with Drain Pump and Detergent Dispenser,1cycle,30b/h,no plug-60Hz PNC 402078 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric

Supply voltage: 220 V/1N ph/60 Hz
Default Installed Power: 2.7 kW
Tank heating elements: 2 kW

Key Information:

Washing cycle temperature: 60 C
Hot rinse cycle temperature: 82 C
Baskets per hour*: 30
N of working cycles: 1 (120)
Cell dimensions - width: 380 mm
Cell dimensions - depth: 380 mm
Cell dimensions - height: 240 mm
External dimensions, Width: 436 mm
External dimensions, Height: 670 mm
External dimensions, Depth: 495 mm
Net weight: 33 kg
Shipping weight: 36 kg
Shipping height: 820 mm
Shipping width: 610 mm
Shipping depth: 550 mm
Shipping volume: 0.28 m
Noise level: 61 dBA

Water:

Pressure, bar min/max: 2-5 bar
Water supply temperature*: 10-65 C
Drain line size: 18mm
Washing tank capacity (lt): 15
Boiler Capacity (lt): 2.5
Incoming water line size: 3/4"
Min hot rinse water consumption (lt/cycle)**: 2

The Electrolux Extrasmall Single Skin Glasswasher with Drain Pump and Detergent Dispenser,1cycle,30b/h,no plug-60Hz PNC 402078 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
