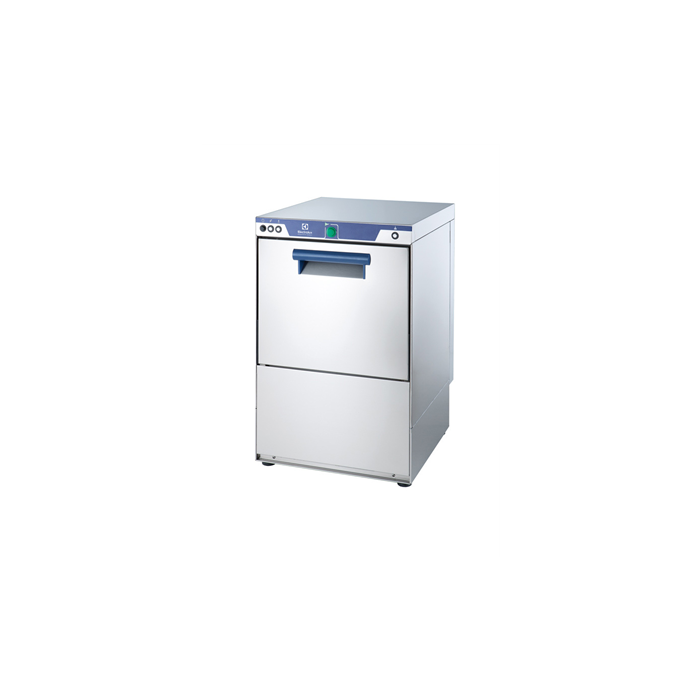

Electrolux Extrasmall Single Skin Glasswasher, 1 cycle, 30 racks/hour PNC 402075

In stock
SKU
402075

Main Features

  • Built-in pressure boiler designed to raise incoming water to a guaranteed minimum temperature of 82C for sanitizing rinse. No external boiler is required.

  • Washing system endowed with rotating washing arms, high powered wash pump and large capacity wash tank for professional washing.

  • Flexible rack support suitable to use rack dimension from 350x350mm up to 380x380mm.

  • Maximum capacity of 30 racks per hour.

  • 120 seconds cycle.

  • Simple operation control panel.

  • Solid double skinned counter-balance stainless steel door with hurt-free handle in plastic.

  • Easy service access to main components without moving the unit.

  • Equipped with single phase electrical cable and Schuko plug for easy and fast installation.

  • Completely closed on the back by a cover plate.

  • Unit to feature rinse aid dispenser pump.

  • Internal components (arms and filter) are easy extractable.

  • Robust structure thanks to stainless steel construction.

  • Requires only 1 phase 230V supply.


Glasswasher (extrasmall), single skin, 1 cycle, 30b/h

The Electrolux Extrasmall Single Skin Glasswasher, 1 cycle, 30b/h PNC 402075 comes from one of the outstanding brands in foodservice and laundry equipment. Famed for their high quality and precision engineering, the Electrolux Professional brand is renowned for its range of equipment.

Specifications

Electric
  • Supply voltage: 230 V/1N ph/50 Hz
  • Default Installed Power: 2.7 kW
  • Tank heating elements: 2 kW
Key Information:
  • Washing cycle temperature: 60 C
  • Hot rinse cycle temperature: 82 C
  • Baskets per hour*: 30
  • N of working cycles: 1 (120)
  • Cell dimensions - width: 380 mm
  • Cell dimensions - depth: 380 mm
  • Cell dimensions - height: 240 mm
  • External dimensions, Width: 436 mm
  • External dimensions, Height: 670 mm
  • External dimensions, Depth: 495 mm
  • Net weight: 33 kg
  • Shipping weight: 36 kg
  • Shipping height: 820 mm
  • Shipping width: 610 mm
  • Shipping depth: 550 mm
  • Shipping volume: 0.28 m
  • Noise level: 61 dBA
Water:
  • Pressure, bar min/max: 2-5 bar
  • Water supply temperature*: 10-65 C
  • Washing tank capacity (lt): 15
  • Boiler Capacity (lt): 2.5
  • Incoming water line size: 3/4"
  • Min hot rinse water consumption (lt/cycle)**: 2

The Electrolux Extrasmall Single Skin Glasswasher, 1 cycle, 30b/h PNC 402075 is certified for use in most countries and can be ordered at different specifications to suit your commercial kitchen. We export catering equipment to all countries in the world so customising your Electrolux appliance is not a problem. This item may also be suitable for use in galley kitchens.

For further information please download the brochure using the link above or please call us on 0044 (0)117 325 0588.
